Power goes out and you're suddenly weighing how to keep the lights on. For generators and backup inverters, transfer switches for automatic backup take the guesswork out of switching between utility and backup power. Two very different options: an outdoor-rated transfer switch for whole-home backup, and a compact transfer switch for smaller budgets.
Quick Verdict
For a whole-home feed from a portable generator, the outdoor-rated transfer switch gives you weather-protected control and more headroom; it lists at $112.09. For hands-free source switching on a smaller budget, the compact transfer switch lists at $29.99 and takes care of the changeover itself.
At a Glance
| Spec | 100A Manual Transfer Switch for Home Backup Power, 120V/240V, NEMA 3R Outdoor | Automatic Transfer Switch, 63A 110V/220V Dual Power Selector for Generator L1 |
|---|---|---|
| Listed price | USD 112.09 | USD 29.99 |
| Transfer type | Manual | Automatic |
| Rated amperage | 100 A | 63A |
| Voltage | 120V/240V | 110V/220V |
| Mounting | NEMA 3R outdoor housing | DIN-rail / guide-rail mount |
| Operation | You manually shift power source | Auto-switches to backup and returns to primary |
Where Each Product Wins
- The NEMA 3R switch wins when you want a weather-protected changeover point and don't mind operating it by hand.
- The DIN-rail switch wins when you want the backup source to activate and restore on its own, with adjustable priority and delay settings.
Product Notes
#### Outdoor Manual Transfer Switch
This is the bigger-handling option. With a 100A rated capacity and 120V/240V support, it leaves room for more circuits when a portable generator is feeding your home. The NEMA 3R housing is built for outdoor placement, so it can live beside the panel or generator feed. That makes it a solid candidate for a fixed installation where you want one robust changeover point. The main trade-off is that you have to operate it by hand: someone needs to be home to move the switch during an outage and then move it back when utility power returns. For a homeowner who wants capacity and a weather-protected enclosure over hands-free convenience, this switch fits.

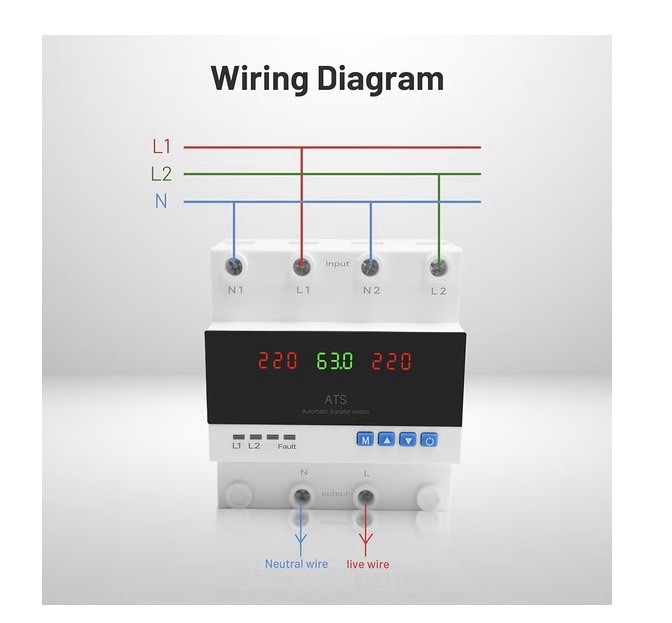

#### DIN-Rail Automatic Transfer Switch

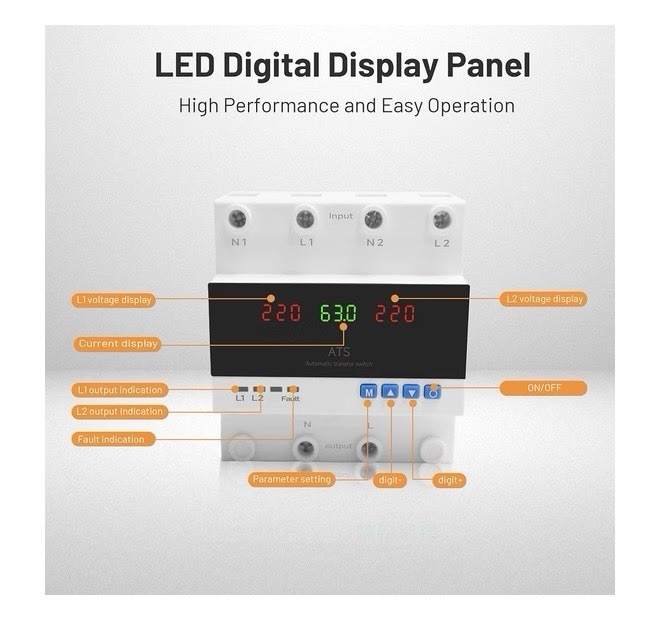

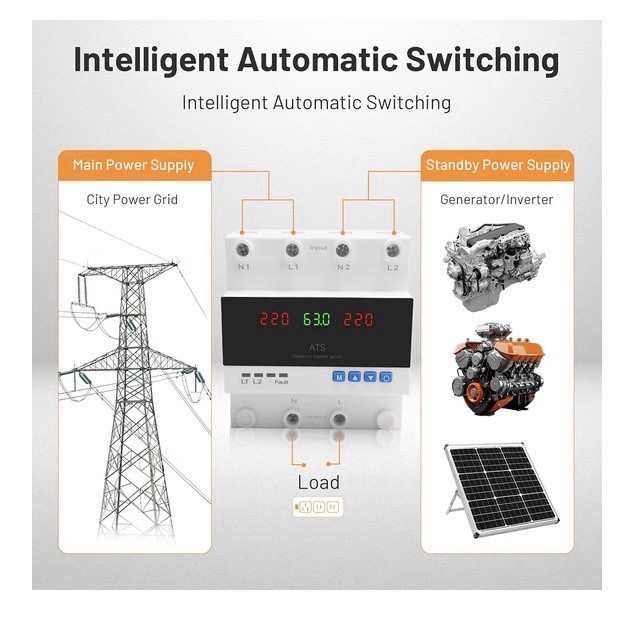

This compact unit handles the source changeover itself. When the primary source fails, it shifts the load to backup power and later returns to the primary source once the fault clears. Adjustable L1/L2 priority, transfer delay, startup delay, and overcurrent value are all set through onboard buttons, which makes it adaptable for small generators and backup inverters. It mounts on a DIN rail or guide rail, and the flame-retardant PA6 housing adds safety-minded construction. The limitation is the 63A rating, so it suits selected circuits or a smaller generator rather than a full whole-home panel. It's also listed in new open-box condition, so it pays to inspect it before putting it into service.
Final Choice by Use Case
Choose the outdoor-rated changeover switch when your backup plan is a portable generator feeding your home and you want a weather-protected, higher-capacity hookup. Choose the DIN-rail transfer switch when you want hands-free source selection, adjustable switching behavior, and a compact fit for lighter loads.
