Setting up electrical distribution switchgear protection for a car, boat, trailer, or similar DC application often comes down to two questions: how clearly does the panel match your circuit plan, and what wiring details are spelled out? Both fuse boxes pair blade-fuse distribution with red LED blown-fuse indication, but their strongest reasons to choose differ.
Quick verdict
Choose the 12 Way Blade Fuse Box Block Holder LED 12V 32V Car Boat Power Distribution Panel when you want a plainly identified 12-way layout, a detailed terminal specification, and an included assortment of 5A, 10A, 15A, and 20A fuses. Its listed price is USD 13.35, compared with USD 15.51 for the 6/12-way panel, a listed difference of USD 2.16.
Choose the 6/ 12 Way Blade Fuse Box Block Holder LED 12V Car Boat Power Distribution Panel when a negative bus arrangement and explicitly named ATC/ATO-blade fuse format are the deciding details. Its title uses 6/12-way wording, rather than committing to one stated panel count.
At-a-glance comparison
| Detail | 12 Way Blade Fuse Box Block Holder | 6/12 Way Blade Fuse Box Block Holder |
|---|---|---|
| Listed price | USD 13.35 | USD 15.51 |
| Panel wording | 12 Way | 6/12 Way |
| Blown-fuse indication | Red LED indicator | LED blown-fuse indicator |
| Capacity stated | 100A input; 30A maximum per circuit | 100A per panel; 30A maximum per circuit |
| Input wire size | #4-6 AWG | #4-6 AWG |
| Fuse details | 5A, 10A, 15A, and 20A fuses included | ATC/ATO-Blade; 5-20A listed |
| Terminal details | M5 main-line stud and M4 single-wire studs | Positive terminal screws paired with negative terminal screws |
Where each fuse box wins

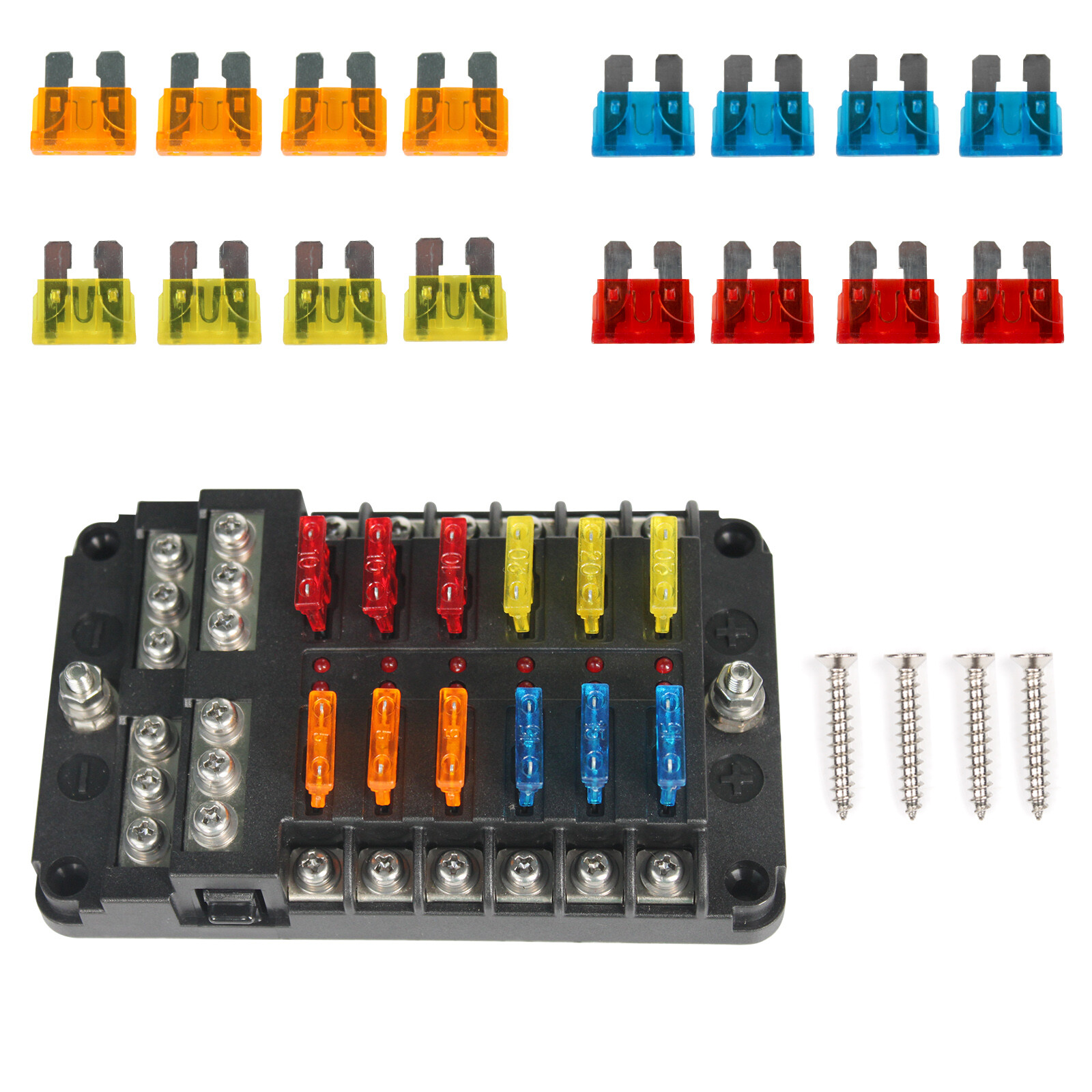

The 12-way panel is the more straightforward choice for a wiring plan that calls for 12 separately protected branches. Its package contents are unusually specific, including six fuses in each of four ratings, a cover, four self-tapping screws, and a sticker. The named M5 main-line and M4 single-wire threaded studs also make its terminal arrangement easy to identify before selecting cable hardware.
The 6/12-way panel stands out for the negative bus called out in its description. That arrangement is useful for shoppers who want positive and negative terminal screws addressed together in the panel description. It also explicitly identifies the fuse type as ATC/ATO-Blade and lists a PC cover, PBT base, and tin-plating copper construction.
Product notes
12 Way Blade Fuse Box Block Holder LED 12V 32V Car Boat Power Distribution Panel

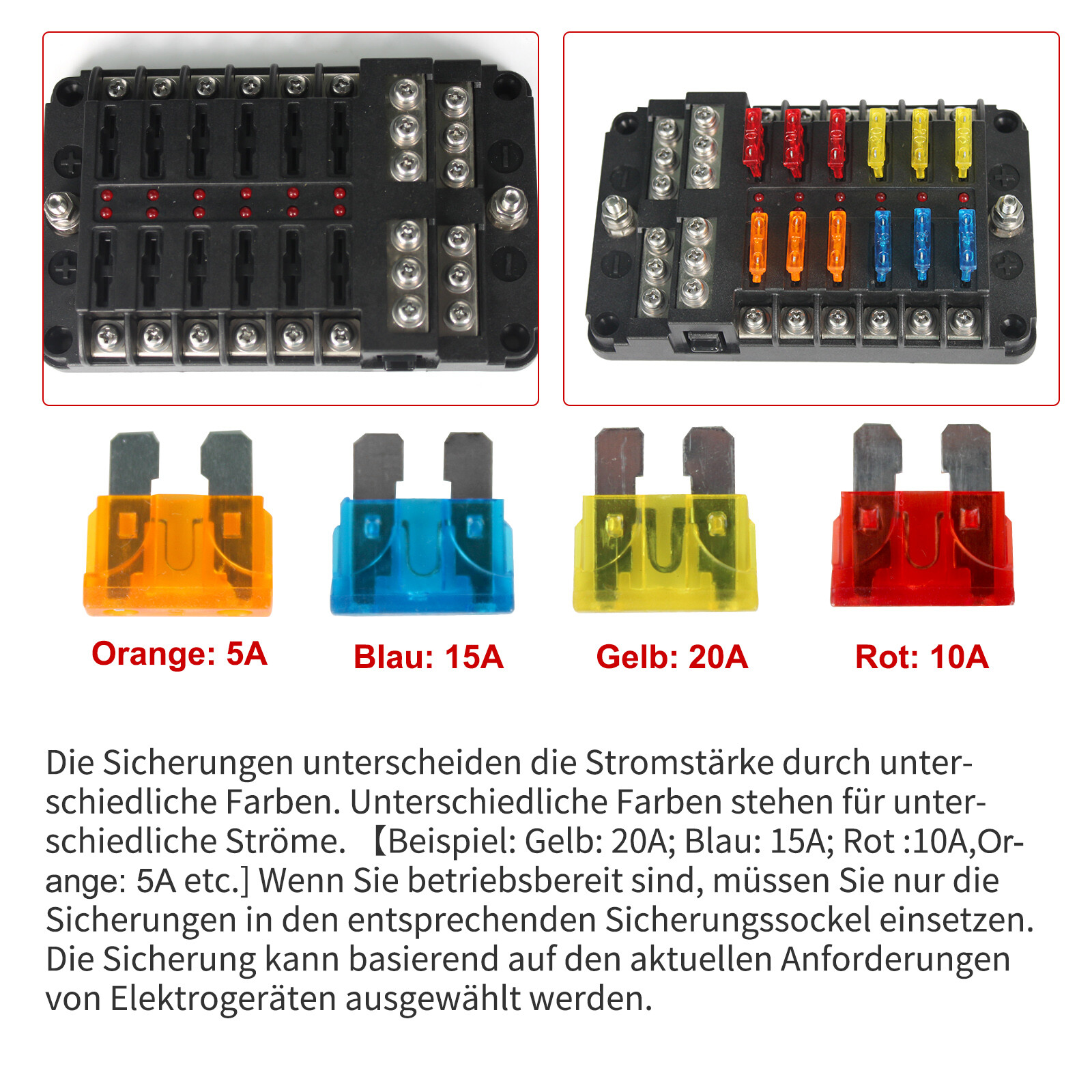

This panel suits a build centered on a clearly labeled 12-way fuse box. Beyond the red LED burnout indicator, it specifies a 100A input rating, a 30A maximum output per circuit, #4-6 AWG input wiring, and separate M5 and M4 threaded stud sizes. The included fuse assortment covers four ratings-5A, 10A, 15A, and 20A-with six of each, giving the package a defined starting set for branch protection. The cover is described as waterproof and dustproof. Its limitation is the fixed 12-way wording: for a plan framed specifically around a 6-way panel, the title does not offer that same configuration wording.
6/ 12 Way Blade Fuse Box Block Holder LED 12V Car Boat Power Distribution Panel
The key reason to choose this fuse box is its stated negative bus, paired positive and negative terminal screws, and ATC/ATO-Blade fuse specification. It also shares the red LED blown-fuse indicator and the stated 30A-per-circuit, 100A-per-panel capacity that matter when comparing branch-circuit distribution panels. The listed material combination is a PC cover, PBT base, and tin-plating copper. Its practical limitation is clarity of panel count: the title says "6/ 12 Way" rather than naming one single way count, while the alternative is explicitly identified as 12 Way.
Final choice by use case
Pick the 12 Way Blade Fuse Box Block Holder LED 12V 32V Car Boat Power Distribution Panel for a defined 12-way project, especially when the included four-rating fuse assortment and named M5/M4 terminals align with the plan.
Pick the 6/ 12 Way Blade Fuse Box Block Holder LED 12V Car Boat Power Distribution Panel when the negative bus layout, paired terminal-screw description, and explicit ATC/ATO-Blade fuse type are the more important selection points. Both are positioned as blade-fuse distribution panels with LED indication, so the deciding factor is the panel wording and connection details rather than the shared warning-light function.
