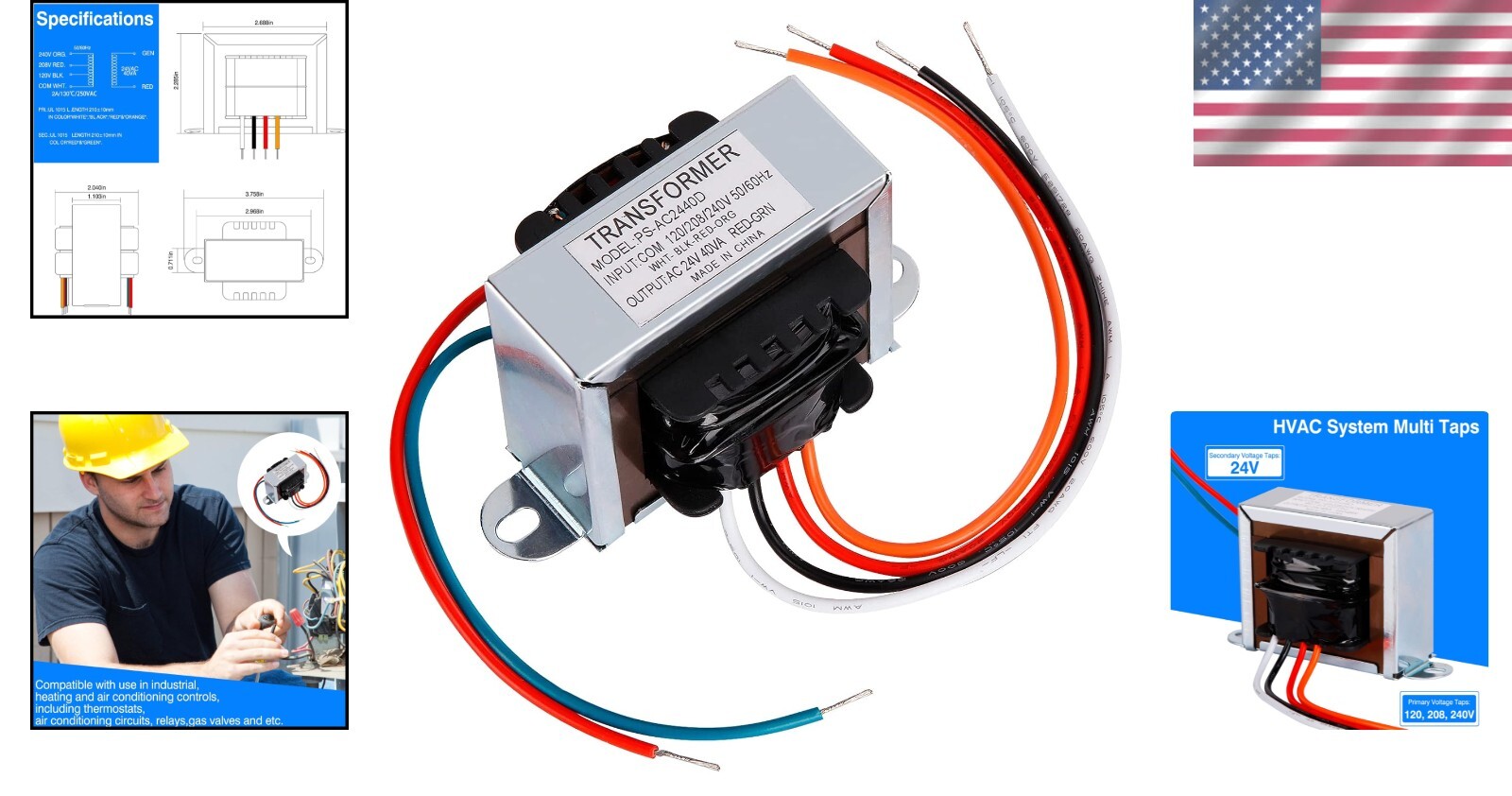

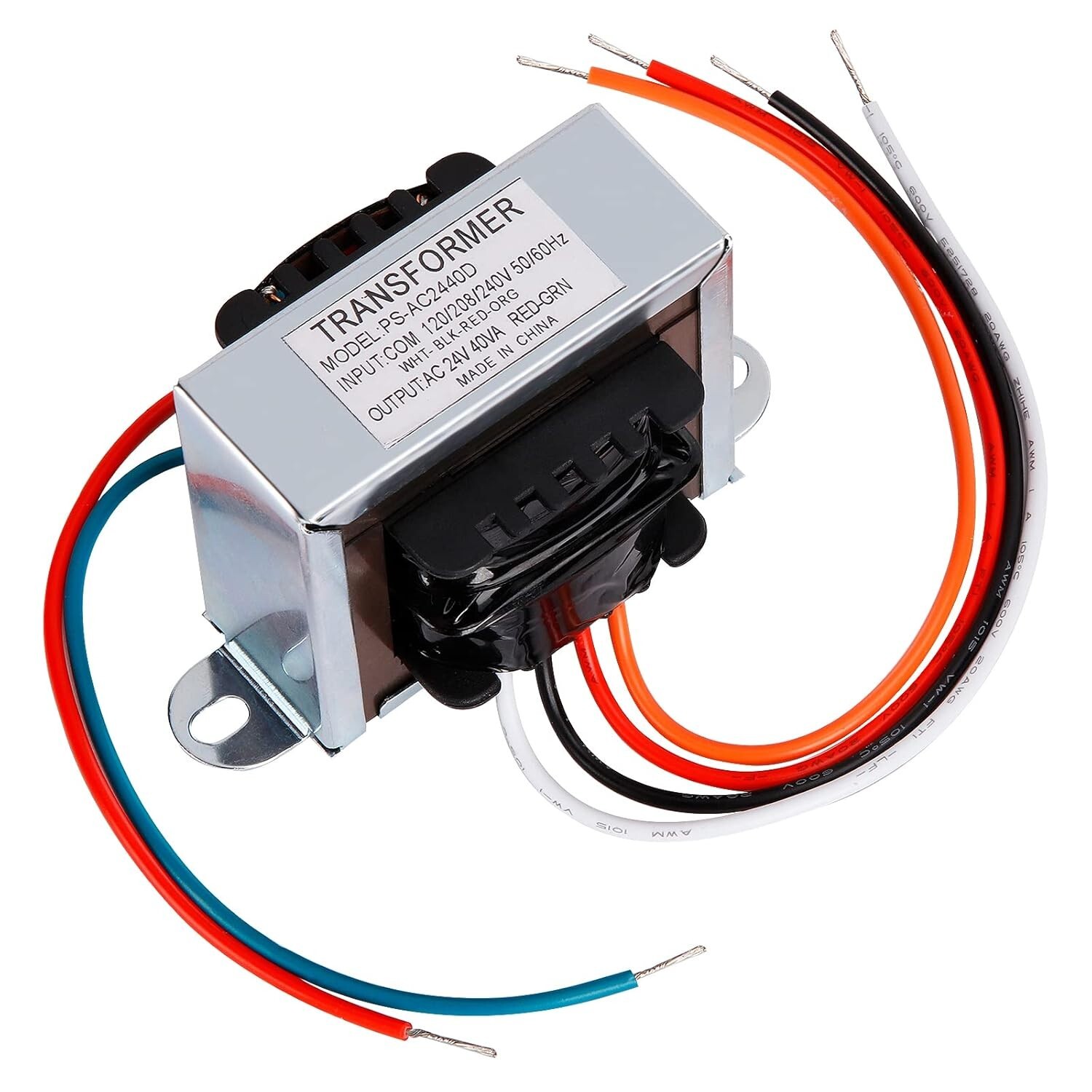

Versatile 24V Isolation Transformer with Foot Mount

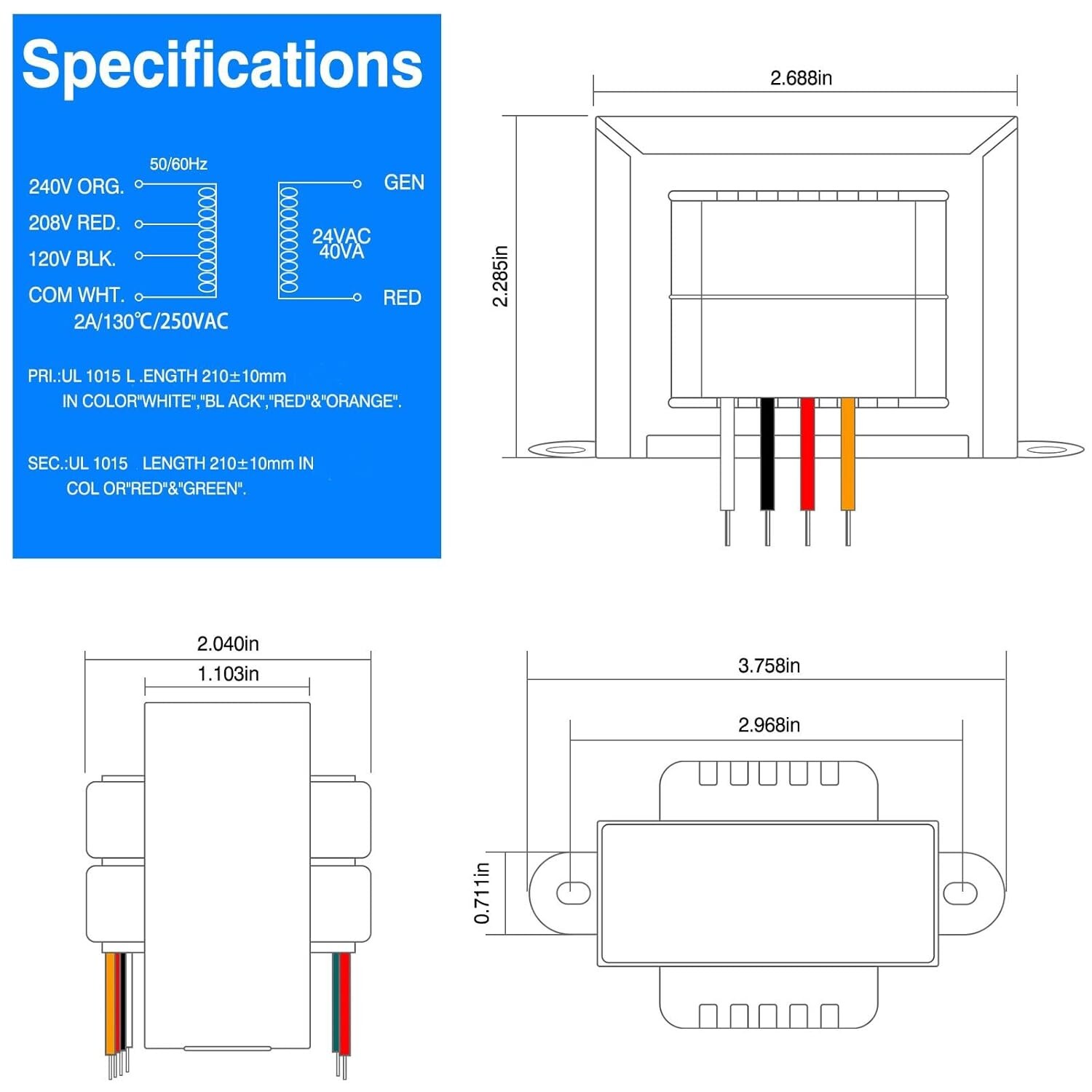

Priced at USD 33.29, this transformer steps down 120, 208, or 240 V AC to 24 V AC with a 40 VA power rating. The foot mount design lets you secure it to a panel or equipment frame, and the gray housing suits a variety of indoor control cabinets.
Quick Verdict
If you need a straightforward 24V control transformer for HVAC or industrial equipment, this Versatile 24V Isolation Transformer with Foot Mount is a practical option. It accepts three common primary voltages, delivers a standard 24V secondary, and includes an IP20 rating for dry indoor locations.
Who It Suits
This transformer fits anyone replacing or installing a 24V control power source for heating and air conditioning controls, relays, gas valves, and similar circuits. It's especially useful when you need isolation between primary and secondary, and when you want a compact unit that can bolt onto a panel or equipment frame.
What Stands Out from the Listed Details

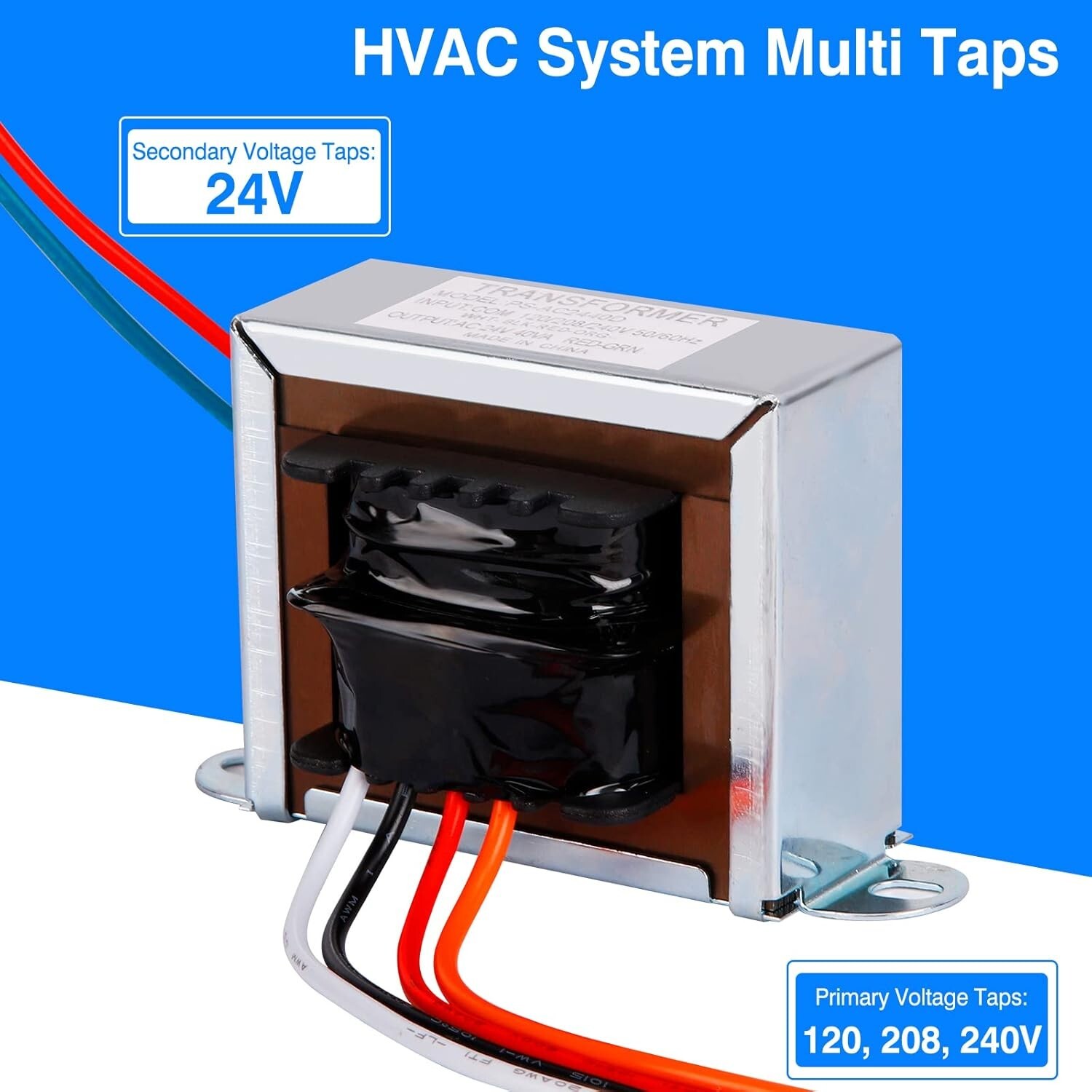

The multi-voltage primary is the highlight. With 120/208/240V AC input support, the unit adapts to common supply voltages without needing a different model. The secondary is 24V AC, which is the standard for many HVAC control systems. The 40VA rating (1.66 Amps at 24V) tells you it's meant for control loads, not heavy power equipment.
The foot mount design is another plus. Rather than a chassis-mount or PCB-style transformer, this one is built to be secured to a flat surface, which can simplify installation in an industrial cabinet or on an HVAC unit. The gray finish is a minor cosmetic detail. It also handles 50Hz and 60Hz operation, so it can work in applications where the line frequency differs.
Meaningful Trade-Offs
The 40VA rating is the main limitation. At 24V, that's roughly 1.66 amps, enough for a few relays or one control circuit, but not for a large bank of devices. If your load draws more, you'll need a higher VA transformer. Also, the no-load output is listed as AC 26.6V to 27.5V, so the secondary sits above 24V when nothing is connected. That's normal for a control transformer, but it's worth accounting for in sensitive circuits.
Another trade-off is the IP20 rating. That means the unit is not sealed against water or dust, so it belongs in an indoor enclosure or a clean, dry environment. If your installation is exposed to moisture or heavy dust, you'll want a higher-rated enclosure around it.
Bottom Line
For the price, the Versatile 24V Isolation Transformer with Foot Mount covers the basics well. You get three primary voltage options, a standard 24V secondary, a useful 40VA capacity, and a mounting foot for easy installation. It's a sensible choice for HVAC technicians and industrial maintenance folks who need a reliable control transformer. Keep your load within 40VA and use the transformer in a dry, indoor location.
