Quick take
A transfer switch for backup power needs to match the power source and the loads you care about. If you run a portable generator and want selected circuits available during an outage, a transfer switch kit gives you a clean way to move those circuits from utility power to generator power. If, instead, you need to keep DC-powered radios, LED lighting, or accessories alive when your normal DC supply fails, an automatic transfer switch can switch over to a battery bank without you touching anything.
The right pick depends on whether the backup source is a generator or a battery.
The three Reliance 306LRK products in this roundup all point to the same transfer switch kit. The fourth product, the PWRgate, is a different tool: a DC automatic transfer switch.
Listed-price comparison
| Product | Listed price | Price bar | Key specs |
|---|---|---|---|
| Reliance 306LRK 30Amp BackUp Power Manual Transfer Switch Kit PreWired 6-Circuit | USD 154.75 | Manual, prewired 6-circuit, 30A | |
| Reliance 306LRK 30Amp BackUp Power Manual Transfer Switch PreWired 6 Circuit Kit | USD 139.99 | Manual, prewired 6-circuit, 30A | |
| Reliance 8000W Prewired 6-Circuit 30AMP Back-Up Power Transfer Switch Kit 306LRK | USD 134.99 | Manual, prewired 6-circuit, 30A | |
| Backup power transfer switch, 45A Battery Backup DC Switching System PWRgate | USD 45.00 | DC automatic, 45A, Anderson PowerPole |
Decision matrix
- For a portable generator and selected circuits, any of the three Reliance 306LRK kits fits; they all describe the same transfer switch kit.
- If you want the description with the most component detail, pick the Reliance 306LRK kit whose description names the most included components.
- For an automatic DC backup setup with a battery bank, choose the Backup power transfer switch DC Switching System PWRgate.
- For whole-circuit AC backup, stay with the Reliance 306LRK family; the PWRgate is a DC switch.
Product notes
Reliance 306LRK 30Amp BackUp Power Manual Transfer Switch Kit PreWired 6-Circuit
With Kit and PreWired 6-Circuit in the title, the Reliance 306LRK 30Amp BackUp Power Manual Transfer Switch Kit PreWired 6-Circuit is positioned as a full manual transfer setup. The description points to business and industrial sites that need a dependable power source. It shares the same model number, 31406CRK, with the $139.99 version, so the hardware appears to be the same 30A prewired 6-circuit switch. The drawback is the price position: $154.75 is the highest listed price among the three Reliance kits.
Reliance 306LRK 30Amp BackUp Power Manual Transfer Switch PreWired 6 Circuit Kit
With the same model number and the same prewired 6-circuit manual design as the other two Reliance kits, the Reliance 306LRK 30Amp BackUp Power Manual Transfer Switch PreWired 6 Circuit Kit is the middle-priced entry at $139.99. It sits above the $134.99 Reliance 8000W kit and below the $154.75 kit. The description is short and focuses on condition. If you want the core 306LRK switch and are deciding by listed price, this is a straightforward middle pick. Its limitation is that same middle position: it is not the lowest-priced Reliance kit, and it shares the model with the higher-priced version.

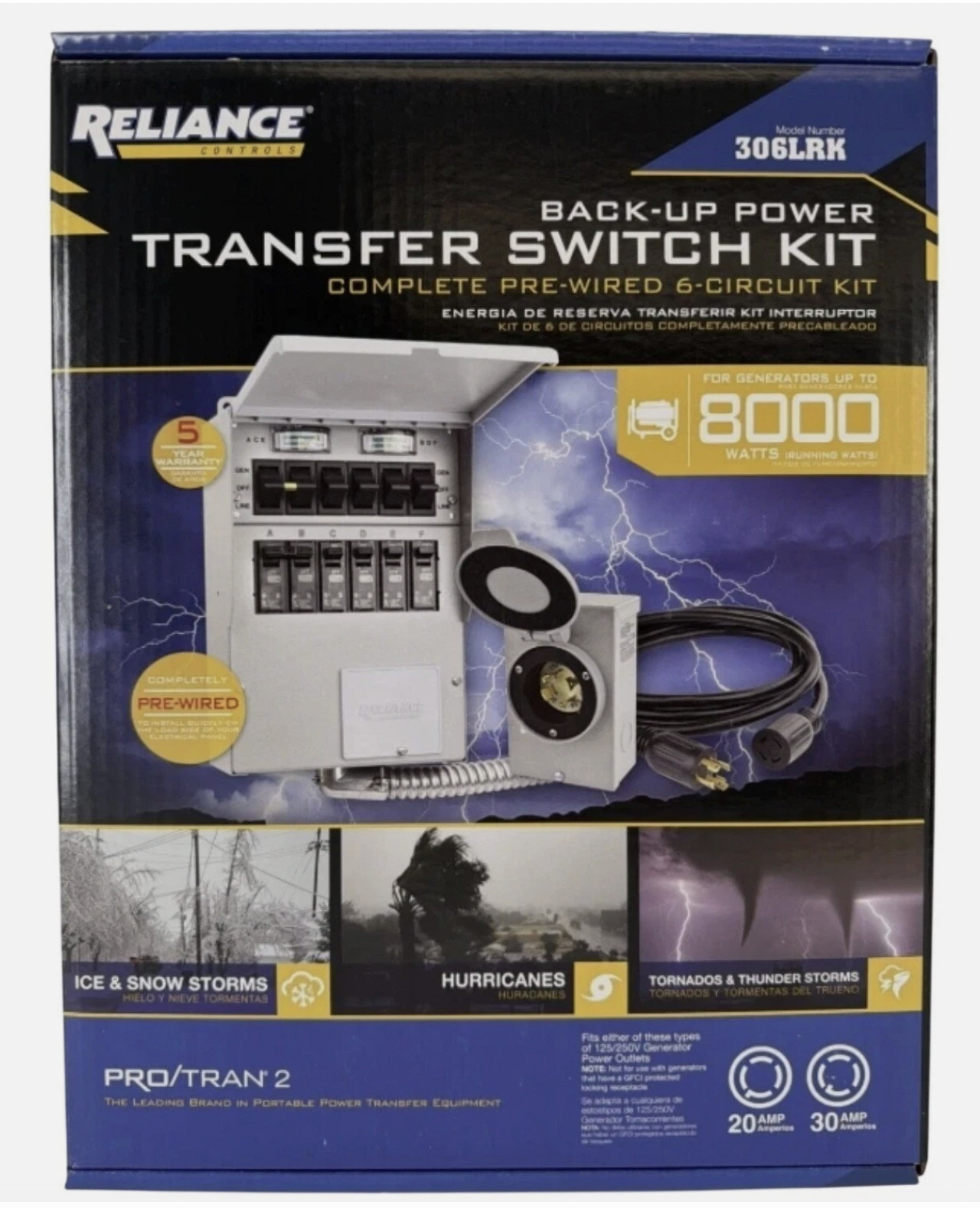

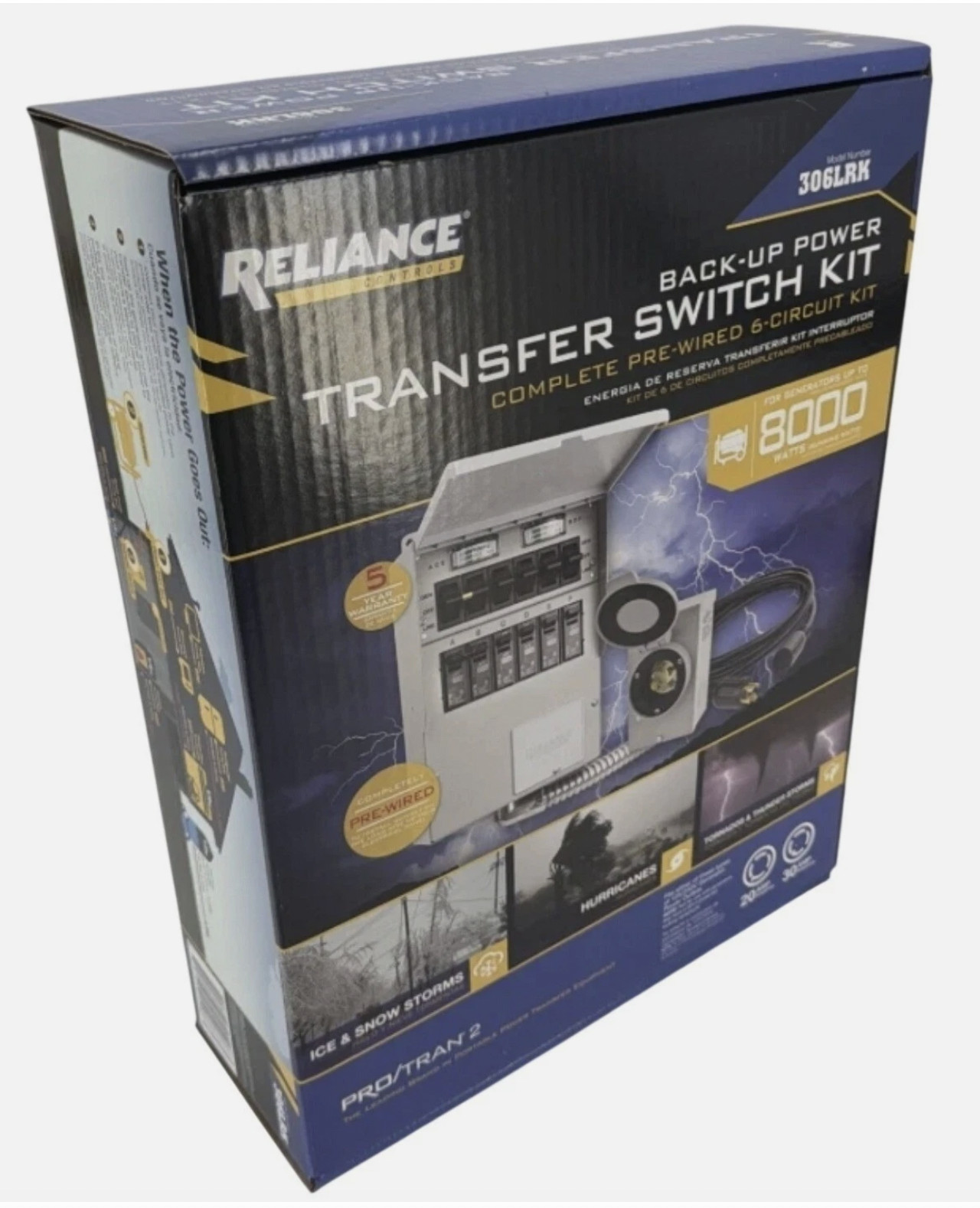

Reliance 8000W Prewired 6-Circuit 30AMP Back-Up Power Transfer Switch Kit 306LRK

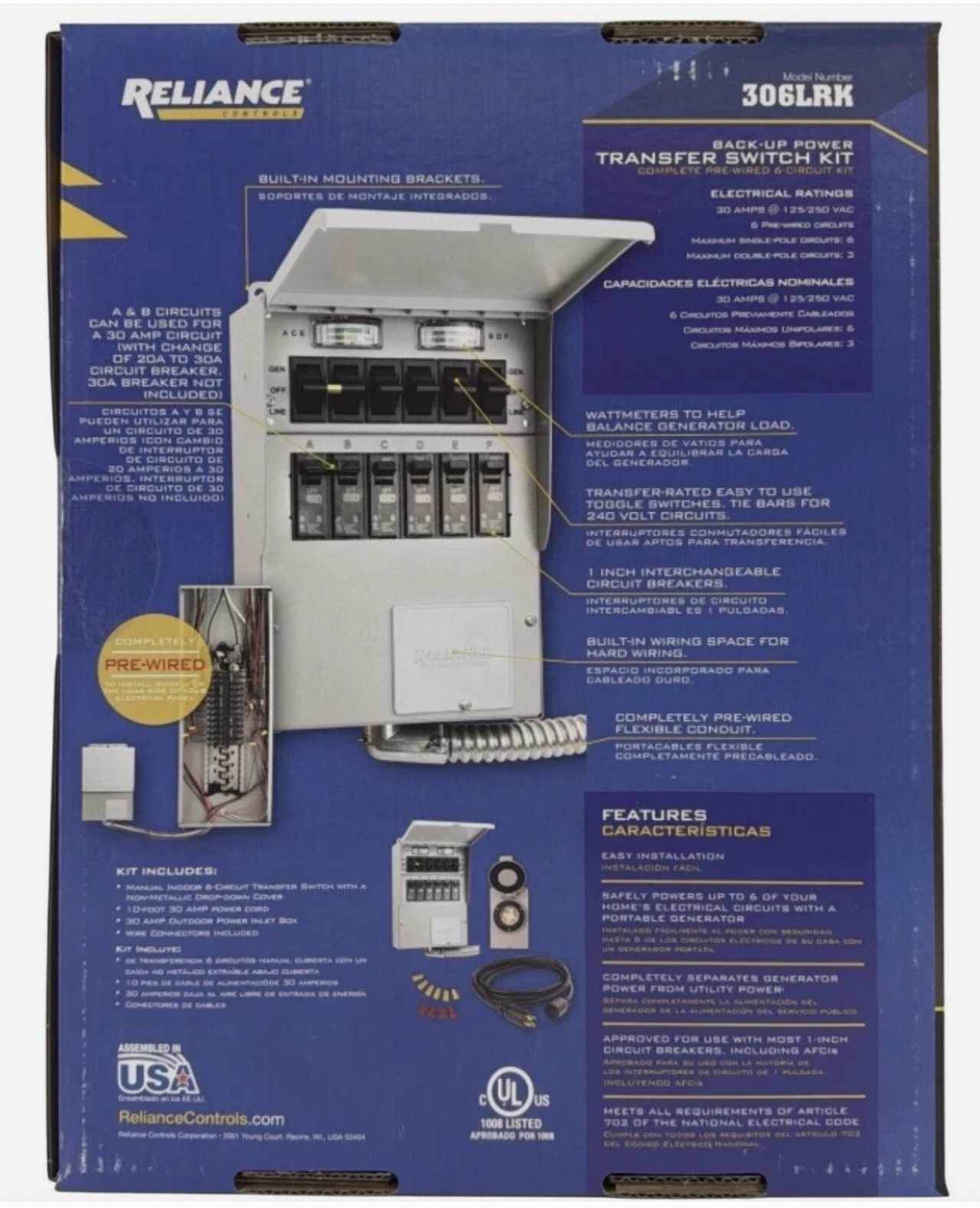

The Reliance 8000W Prewired 6-Circuit 30AMP Back-Up Power Transfer Switch Kit 306LRK has the lowest listed price among the three Reliance kits at $134.99. Its description goes into more detail, mentioning color-coded watt meters, a 30-amp outdoor power inlet box, a 10-foot generator cord, and a UL 1008 listing. It also says the switch is rated for generators up to 7,500 running watts. The limitation: it is a manual transfer switch, so someone has to move the switch when an outage starts.
Backup power transfer switch, 45A Battery Backup DC Switching System PWRgate
The Backup power transfer switch, 45A Battery Backup DC Switching System PWRgate takes the automatic route. A 45A, 13.8-volt DC automatic transfer switch, it uses Anderson PowerPole connectors on the main input, auxiliary input, and output. That lets it move a DC load from your normal power supply to a backup battery automatically when the main DC supply drops. At $45.00, it sits in a different price tier from the generator kits. The limitation: it is built for DC devices like radios, LED lighting, and accessories, not for AC circuits.
Final recommendation by use case
For a portable generator backing up selected circuits, the Reliance 306LRK family is the fit. All three 306LRK products describe the same transfer switch kit. If you want the description with the most component detail, start with the Reliance 306LRK kit whose description names the most included components. The other two Reliance 306LRK products share the same core model, so use the listed-price table to decide which entry works for you.
For DC gear like radios, LED lighting, or accessories on a backup battery, the Backup power transfer switch DC Switching System PWRgate is the automatic choice. It switches between your normal DC supply and the battery bank on its own.
