Choosing a voltage regulation transformer starts with one key question: what input voltage do you have, and what does your equipment need? The GE 9T51B0188 TYPE QB is a general purpose transformer designed for 277V commercial power, stepping it down to 120V or 240V for smaller loads. With a 0.5 kVA rating, it fills a specific niche-but is it the right niche for you?
Quick verdict
If you need to run a low-power device from a 277V circuit, the GE 9T51B0188 is a straightforward single-phase option. It bundles copper windings, a NEMA 3R rainproof enclosure, and a UL and C-UL listing into a compact 16 lb unit. The listed price is USD 237.28, which puts it in a reasonable range for an encapsulated, general purpose transformer of this size. Just respect the 0.5 kVA limit and you'll avoid the most common pitfall.
Who it suits
This transformer is a fit for technicians and facilities managers working with 277V lighting, control circuits, or small equipment that needs 120V or 240V. The primary side offers three tap connections-249V, 263V, and 277V-so you can adjust for slightly different input line voltages. The secondary can be wired for either 120V or 240V, giving you flexibility in the output configuration.
Because it's single-phase and 60 Hz, it's at home in typical North American commercial power settings. The NEMA 3R enclosure means it can be placed outdoors or in damp locations without needing a separate weatherproof box.
What stands out from the listed details
The GE 9T51B0188 is built around a copper core and coil, which is often preferred for reliability and conductivity. The temperature rating-40°C ambient with a 100°C rise and Class 180 insulation-indicates it can handle a reasonably hot environment. The enclosure is NEMA 3R, described as rainproof, so you don't have to tuck it away indoors.

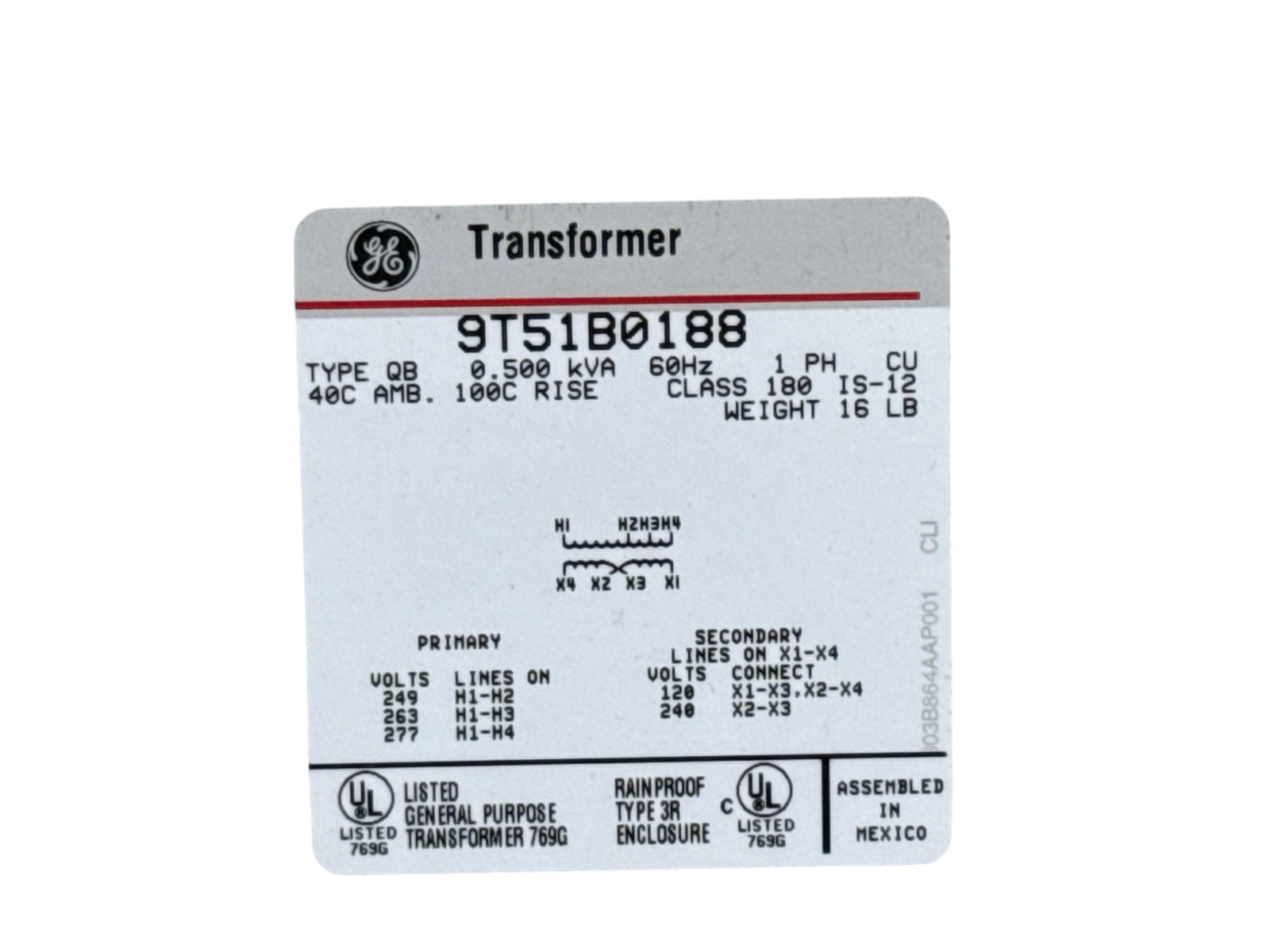

Another useful feature is the multi-tap primary: H1-H2 for 249V, H1-H3 for 263V, and H1-H4 for 277V. That's helpful when your incoming voltage isn't perfectly stable. The unit is assembled in Mexico and comes as a new item in the listing.
Meaningful trade-offs
The biggest trade-off is capacity. At 0.5 kVA, this transformer delivers 500 volt-amperes, which translates to roughly 4 amps at 120V or about 2 amps at 240V. That's enough for small control panels, doorbells, or a couple of lighting circuits, but not enough for power tools, heaters, or anything with a motor beyond fractional horsepower. If your load is anywhere near that limit, you'll want to step up to a larger kVA rating.
Also, keep in mind that the input is 277V single-phase. If you have 480V or three-phase service, this unit won't drop in directly. It's specifically intended for 277V applications, typically found in commercial lighting systems.
GE 9T51B0188 TYPE QB 0.5KVA 277V 120/240V 1PH GENERAL PURPOSE TRANSFORMER NEW

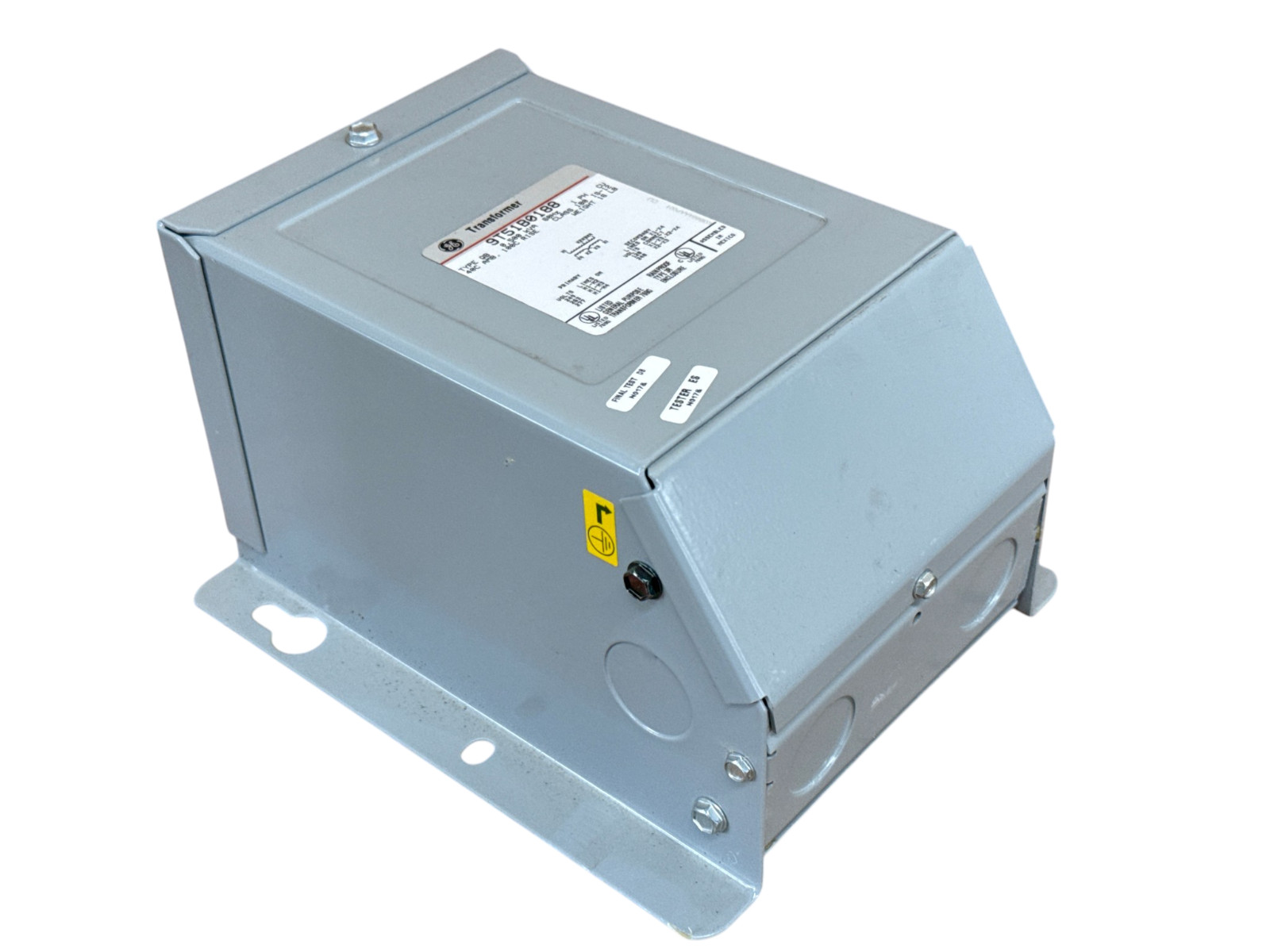

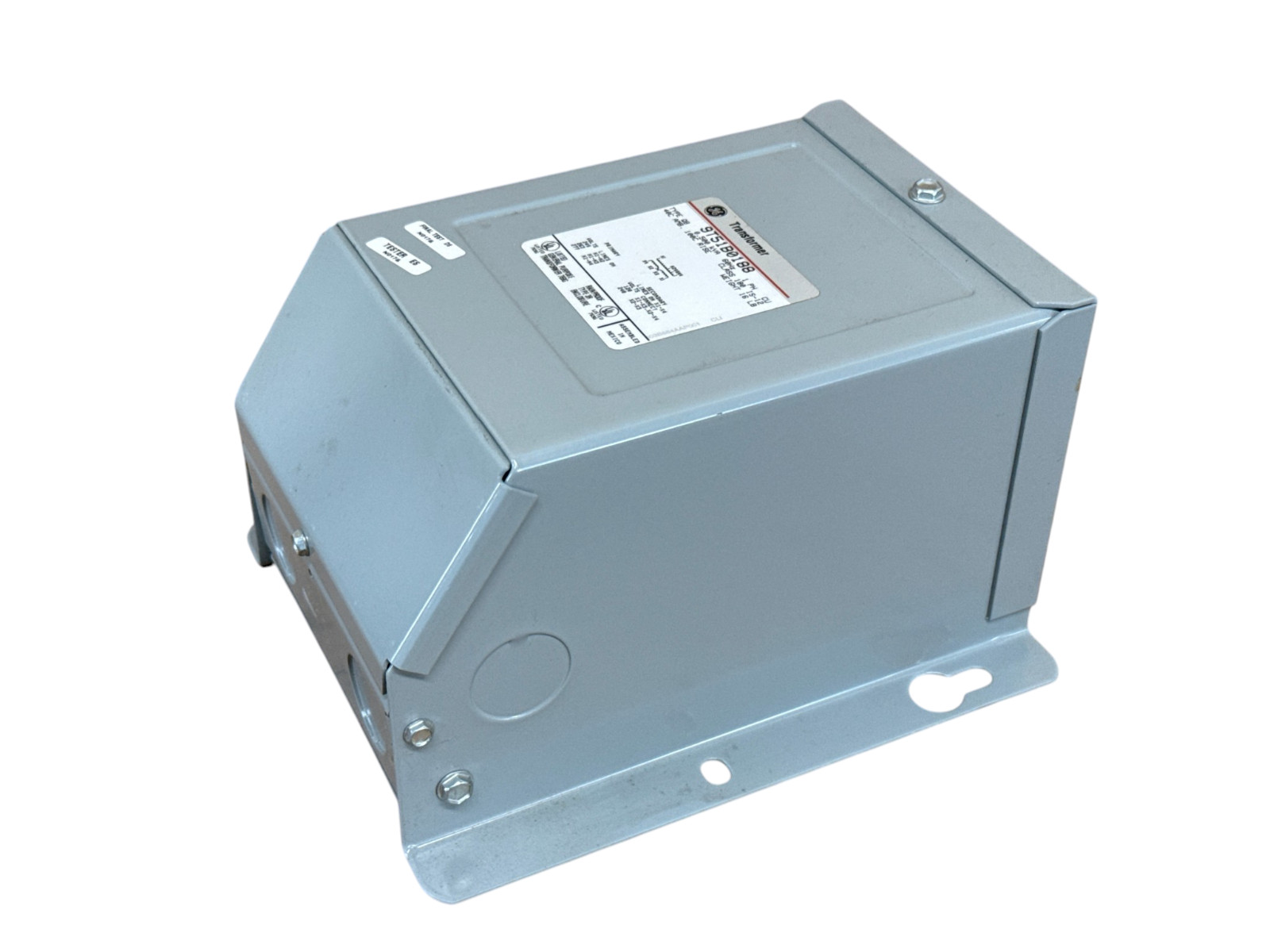

This is the product at hand: a new GE Type QB transformer with part number 9T51B0188. It's rated 0.500 kVA, with a 277V primary and a 120/240V secondary, in a NEMA 3R enclosure. The listed price is USD 237.28. For a buyer who needs to power a small 120V or 240V load from a 277V source, this unit covers that use case neatly. The copper windings and UL listing add confidence, but the modest kVA rating means it's not a catch-all solution.
Bottom line
The GE 9T51B0188 is a well-specified transformer for a narrow job. It solves the problem of converting 277V to 120V or 240V for low-power equipment, and the enclosure rating makes it suitable for exposed locations. Before buying, confirm that your load stays well under 0.5 kVA and that your input is indeed 277V single-phase. If those boxes are checked, this transformer offers a clean and practical way to handle your voltage regulation needs.
