Choosing the right circuit breaker for electrical distribution switchgear protection is not only about tripping current. You need to know whether your circuit is AC or DC, how many poles the disconnect requires, and whether you need ground fault protection. The four breakers here cover very different jobs: one single-pole DC solar MCB, one two-pole 1000V DC solar breaker, one three-pole industrial 20A breaker, and one 50A GFCI breaker. Listed prices span from USD 4.80 to USD 220.00, so the decision is as much about matching the application as managing cost.
Quick take
Choose the GEYA Solar DC Mini Circuit Breaker when you need a single-pole DC PV isolator. Choose the DC Circuit Breaker 1000V when you need two-pole DC protection at the lowest listed price. Choose the Square D BGA34020Y when an industrial three-pole 20A circuit is the requirement. Choose the Reliable 50 A GFCI when you need 50A ground fault protection on an AC circuit.
Listed price comparison
| Product | Listed price | Price bar | Circuit focus |
|---|---|---|---|
| GEYA Solar DC Mini Circuit Breaker 1P MCB PV Isolator Disconnect Switch | USD 13.28 | Single-pole DC solar / PV disconnect | |
| DC Circuit Breaker 1000V 2 Pole Double MCB Solar PV | USD 4.80 | Two-pole 1000V DC solar protection | |
| Square D BGA34020Y 20A 3-Pole Circuit Breaker | USD 220.00 | Three-pole 20A industrial distribution | |
| Reliable 50 A GFCI Circuit Breaker - 10 KAIC | USD 206.99 | 50A GFCI ground fault protection |
Decision matrix
| Product | Best for | Watch out for |
|---|---|---|
| GEYA Solar DC Mini Circuit Breaker | DC solar PV isolator with a single-pole switch | Single-pole design only; not a two-pole disconnect |
| DC Circuit Breaker 1000V 2 Pole Double MCB | Solar PV circuits needing 1000V DC two-pole protection | Amp options range from 10 to 63, so the exact variant matters |
| Square D BGA34020Y 20A 3-Pole | Industrial three-pole 20A distribution panels | 20A fixed rating and a high listed price |
| Reliable 50 A GFCI Breaker | Home, commercial, RV, or industrial GFCI circuits | AC-only GFCI; not a DC solar breaker |
GEYA Solar DC Mini Circuit Breaker 1P MCB PV Isolator Disconnect Switch
This GEYA breaker is positioned as a PV isolator disconnect switch for DC solar circuits. It has a white finish, instantaneous break time, switch-style control, and applications spanning home, commercial, industrial, electrical wiring, and healthcare/safety. That gives it broader potential than a one-job component. Choose it when you need a single-pole DC PV isolator at a mid-range listed price. The limitation is the pole count: this is a 1P design, so it will not disconnect both positive and negative lines the way a two-pole solar breaker would.
DC Circuit Breaker 1000V 2 Pole Double MCB Solar PV
This two-pole DC breaker carries the lowest listed price in the group. The title shows 1000V DC solar PV duty and amp options of 10, 16, 20, 32, 40, 50, and 63, so you can match the breaker to the current of your PV circuit. It includes a switch-style control and instantaneous break time, and it is clearly aimed at solar photovoltaic systems rather than AC panels. The main thing to keep in mind is the variant: with that range of amp options, the exact model you need depends on the circuit you are protecting. For a two-pole 1000V DC solar disconnect at a low listed price, this is the one to weigh.

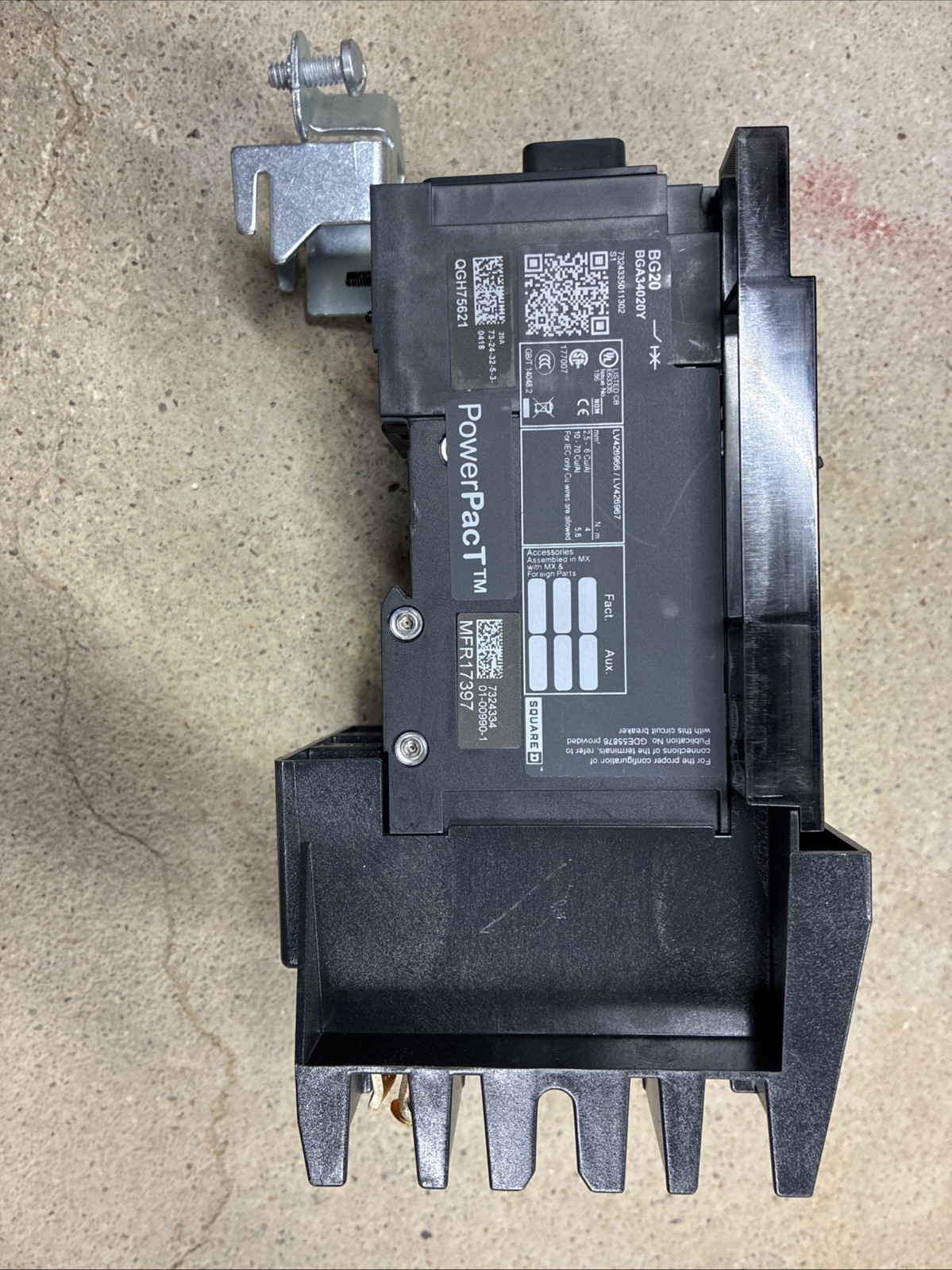

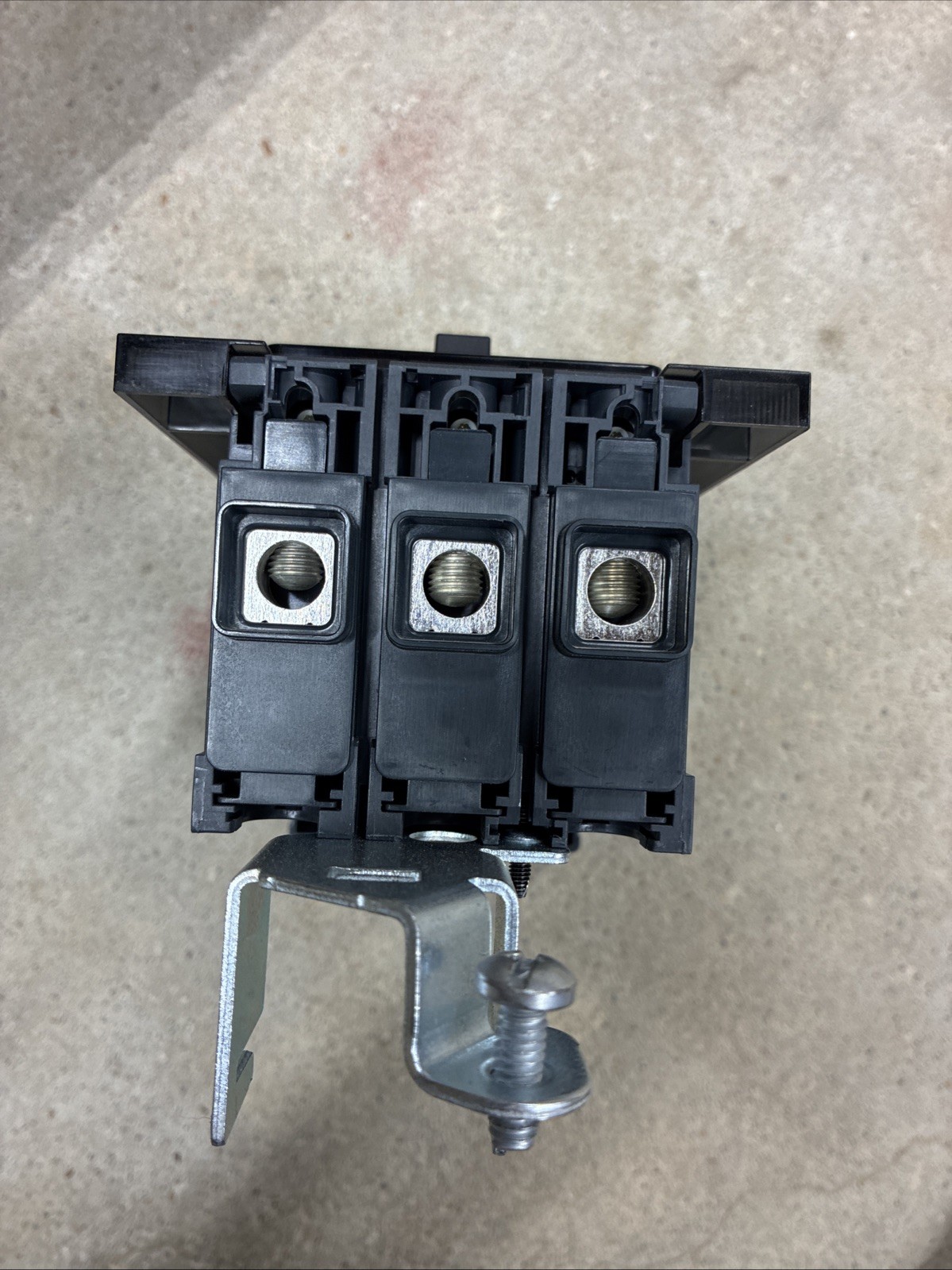

Square D BGA34020Y 20A 3-Pole Circuit Breaker
This Square D breaker is the highest-priced item in the comparison and the only three-pole unit in the group. It is listed for industrial use with a black finish, switch control, trip indicator, box lugs, and AC/DC current type. It also has I-line mounting and ABS/plastic material, which fits panel-style industrial installation. Consider it when you need a 20A three-pole circuit breaker rather than a solar MCB. The trade-off is the price tag and the specific 20A rating: it is not a variable current rating, so it must match the circuit you pair it with.

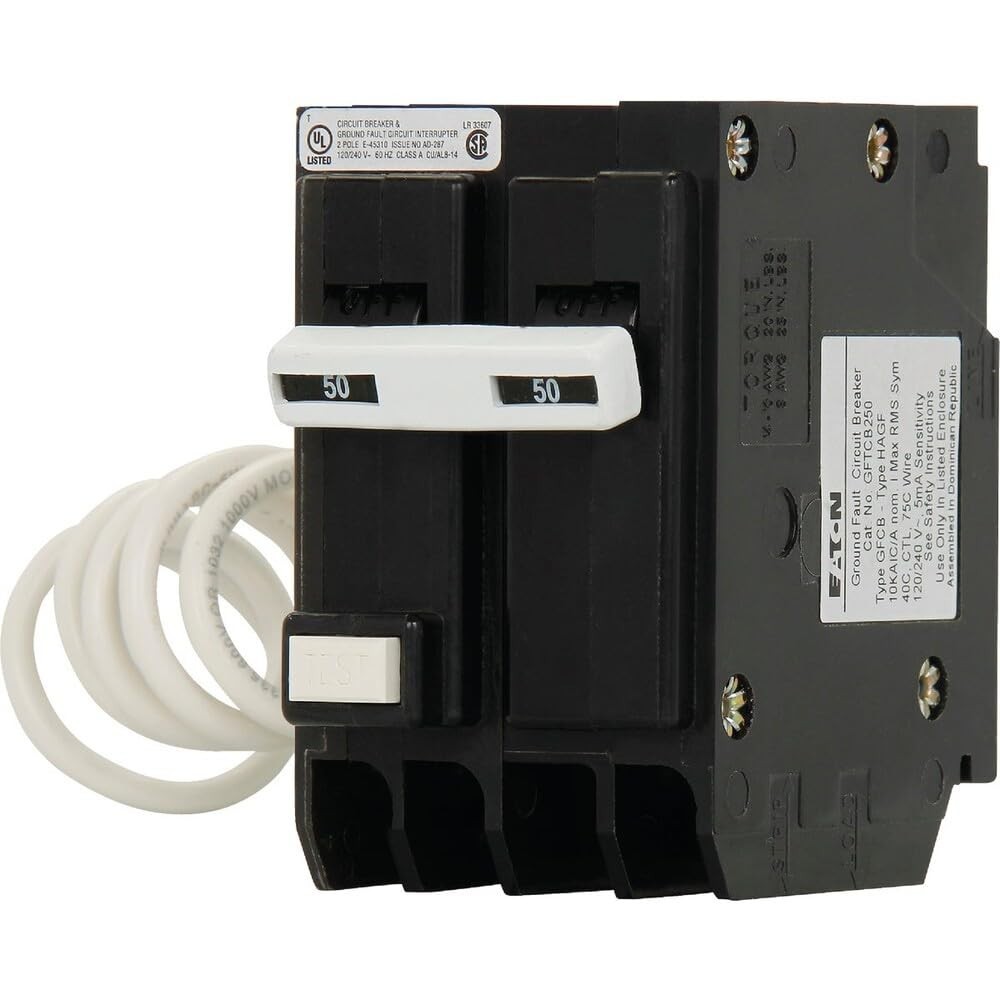

Reliable 50 A GFCI Circuit Breaker - 10 KAIC
This GFCI breaker is the safety-centric choice among the four. It lists a 50A rating, 10 kAIC interrupt rating, trip indicator, GFCI protection, status indicators, and applications that include home, commercial, industrial, electrical wiring, and RV. It is a two-pole breaker for AC circuits, which makes it a fit for 50A ground fault protection rather than solar DC work. Choose it when you want GFCI protection at 50A and a 10 kAIC rating. The limitation is that it is an AC GFCI breaker: it will not replace a DC-rated solar MCB or a three-pole distribution breaker.
Final recommendation by use case
- Single-pole DC PV isolator: GEYA Solar DC Mini Circuit Breaker 1P MCB PV Isolator Disconnect Switch
- Two-pole 1000V DC solar protection: DC Circuit Breaker 1000V 2 Pole Double MCB Solar PV
- Industrial three-pole 20A distribution: Square D BGA34020Y 20A 3-Pole Circuit Breaker
- 50A GFCI ground fault protection: Reliable 50 A GFCI Circuit Breaker - 10 KAIC
Match the circuit first, then the price: the two DC breakers are for solar PV disconnects, while the Square D and GFCI units handle AC-side distribution and protection. That split explains why the listed price span is so wide.
