Isolation Transformer Selection for Voltage Regulation
If you need voltage regulation through isolation, the first decision is what your load actually requires: a low-voltage control circuit, a 120V audio/video setup, or a three-phase industrial line. The four transformers here span a wide price range, from a $33.29 HVAC unit to a $3,462.89 30kVA three-phase system.
Quick Take
For HVAC and control loads, the 24V Multi-Tap transformer is the obvious pick at $33.29. Follow that with the Xtreme Power JX-200 at $135.00 for small 120V equipment that needs surge protection. The Hammond 75kVA and Sheng Yu 30kVA both serve industrial three-phase environments, but they differ in price, condition, and filtering.
Listed Prices at a Glance
| Product | Listed Price | Price Bar |
|---|---|---|
| HAMMOND 1648061 75kVA 3PH Isolation Transformer | USD 1,000.00 | |
| 24V Isolation Transformer with Multi-Tap Design | USD 33.29 | |
| 30kVA Isolation Transformer 3-Phase | USD 3,462.89 | |
| Xtreme Power JX-200 Isolation Transformer | USD 135.00 |
Decision Matrix
| Need | Recommended Product | Key Spec |
|---|---|---|
| 24V control circuits | 24V Multi-Tap | 40VA, 120/208/240V primary, 24V secondary |
| Small 120V isolation + surge protection | Xtreme Power JX-200 | 200VA, 120VAC in/out |
| High-capacity 480V three-phase | HAMMOND 1648061 | 75kVA, 3-phase, copper windings |
| New 30kVA three-phase + EMI filtering | Sheng Yu 30kVA | 30kVA, 450V primary, Schaffner filter |
Product Notes

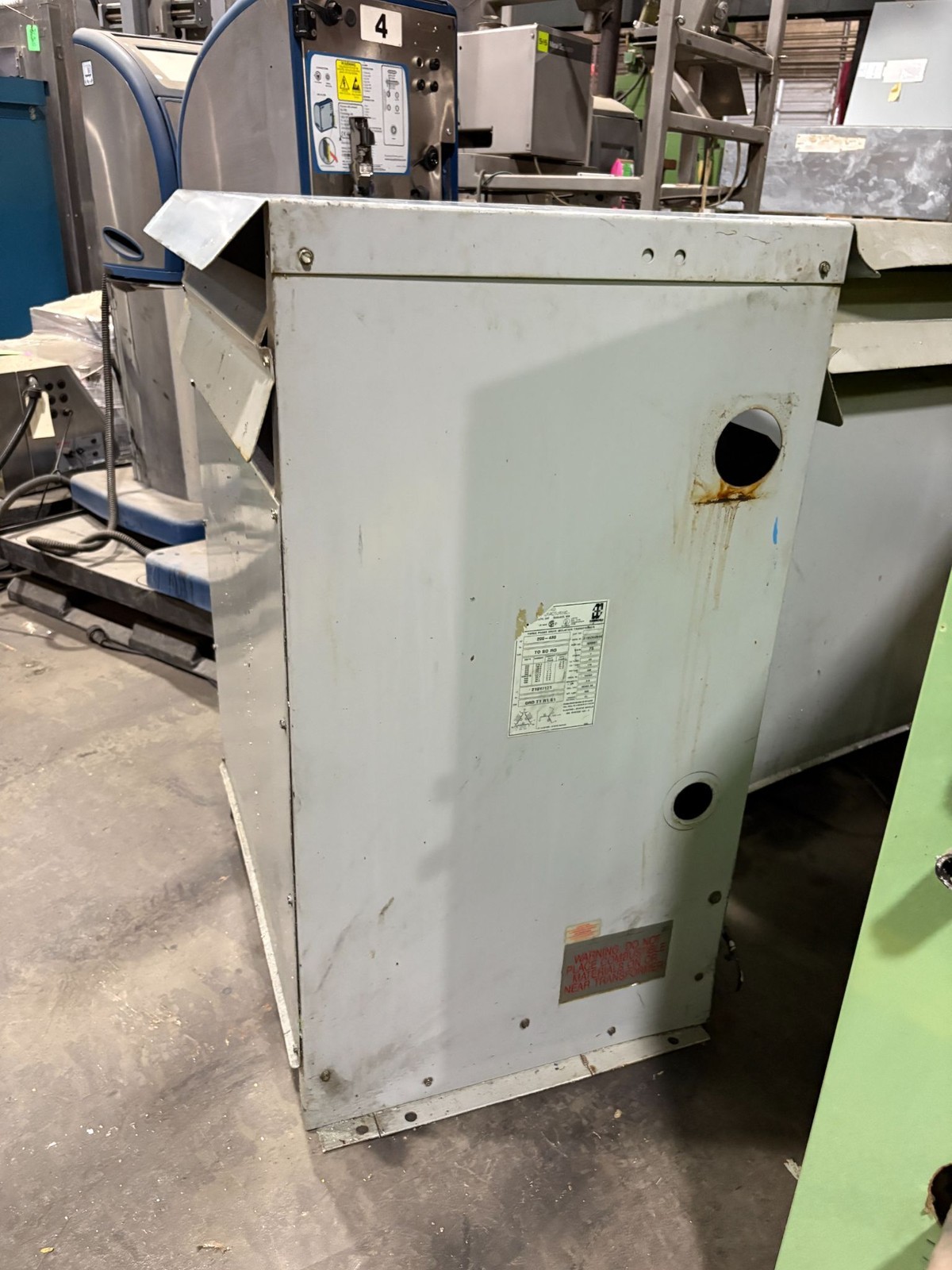

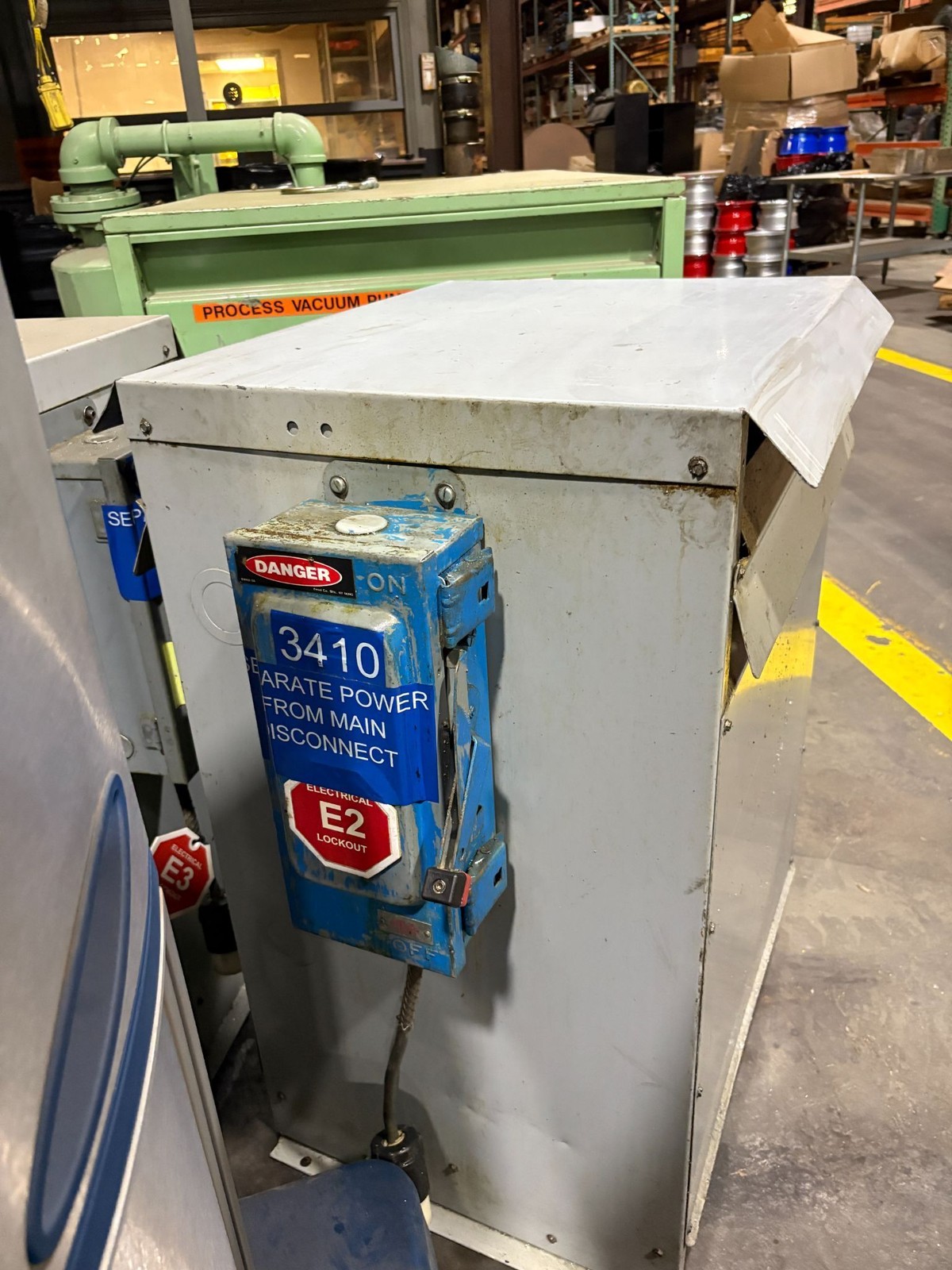

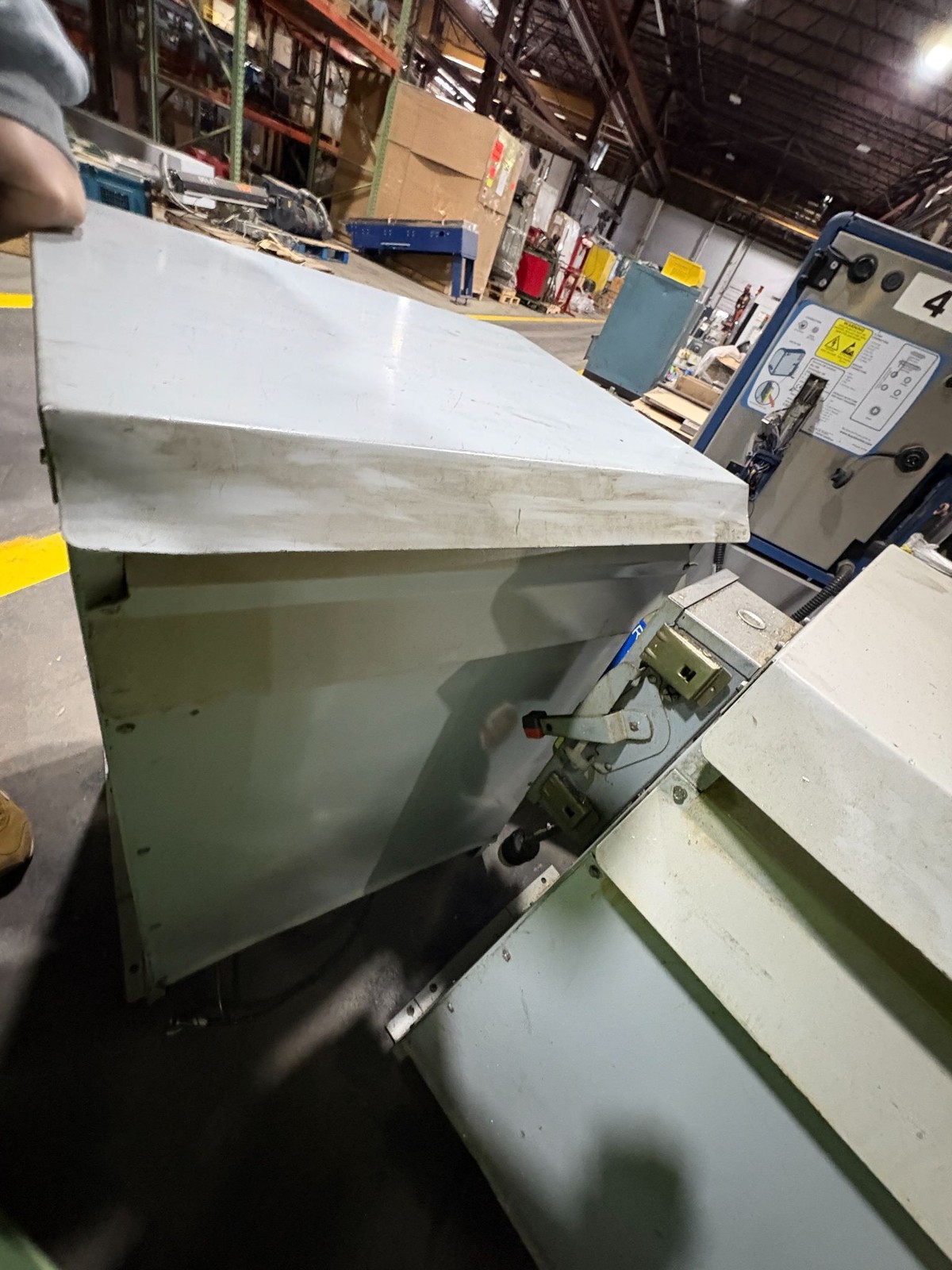

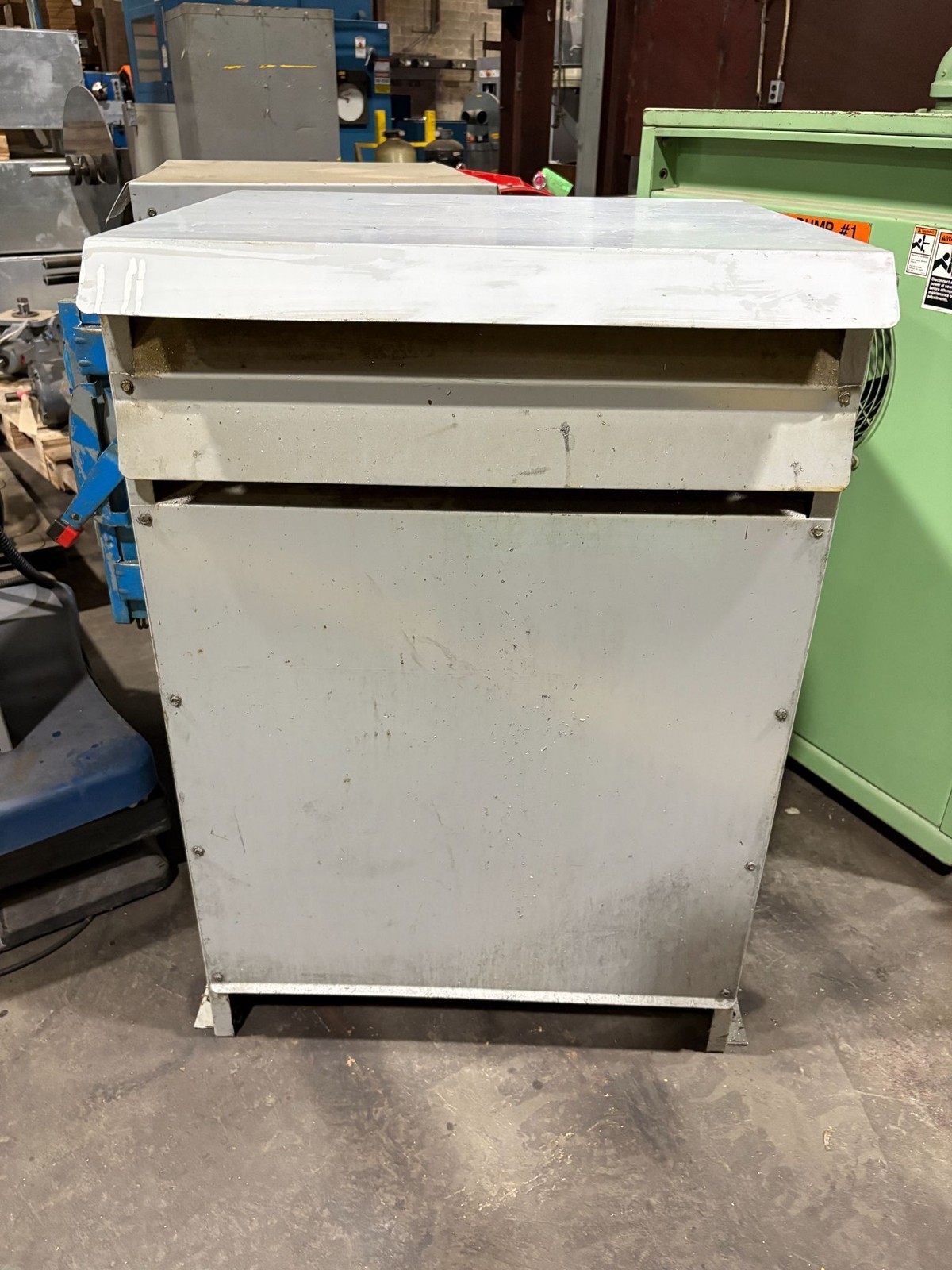

HAMMOND 1648061 75KVA 3PH ISOLATION TRANSFORMER 480V INDUSTRIAL
This used Hammond unit is a heavy-duty 75kVA three-phase isolation transformer designed around 480V industrial service. It includes copper windings and a NEMA 3R enclosure, with a primary range of 200-480V and a secondary of 210Y/121. At $1,000.00 it offers high capacity at a relatively accessible price for an industrial unit. The condition is used, so you are buying a pre-owned component, and the approximate 800 lbs weight means installation needs planning.

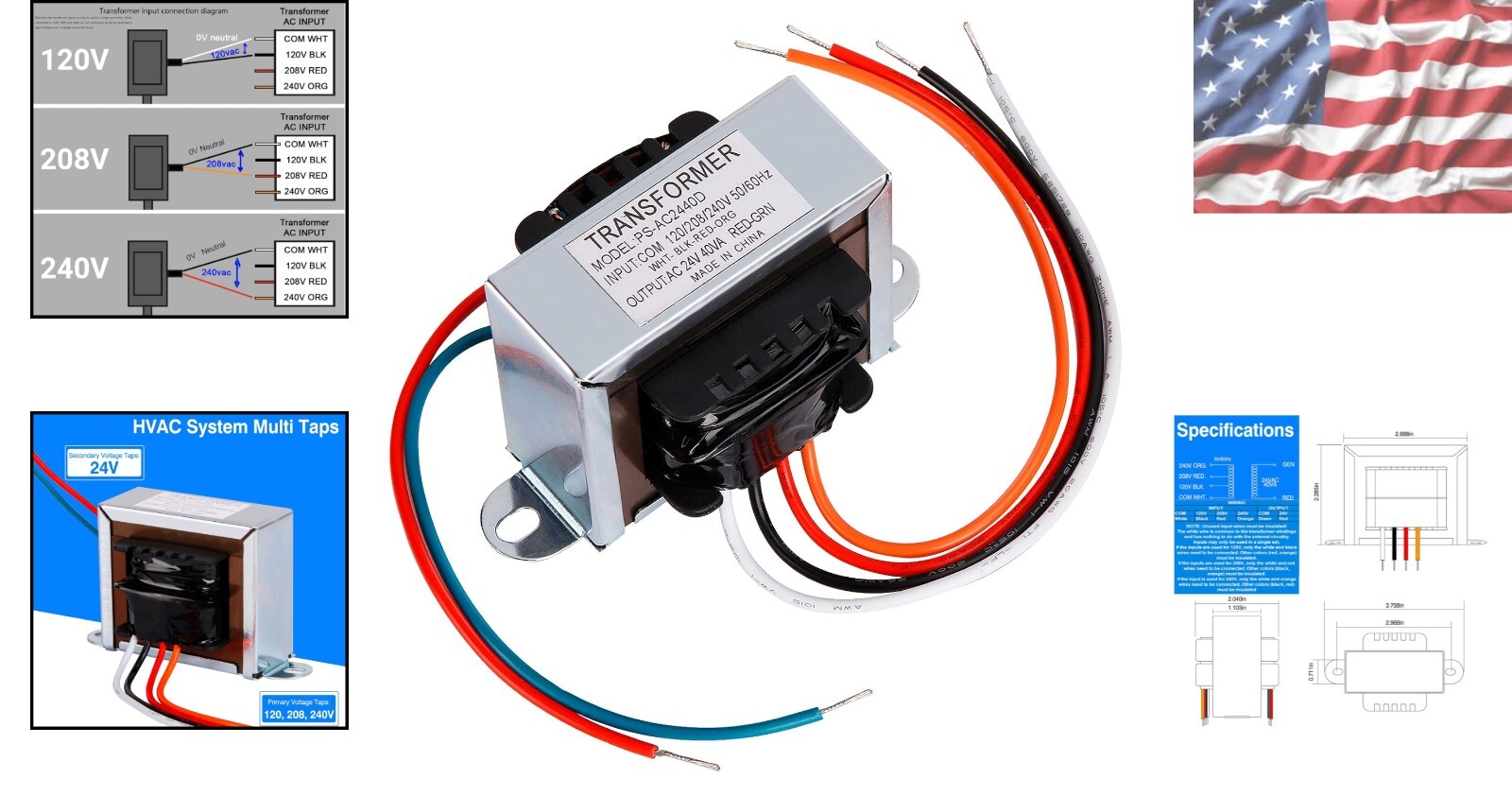

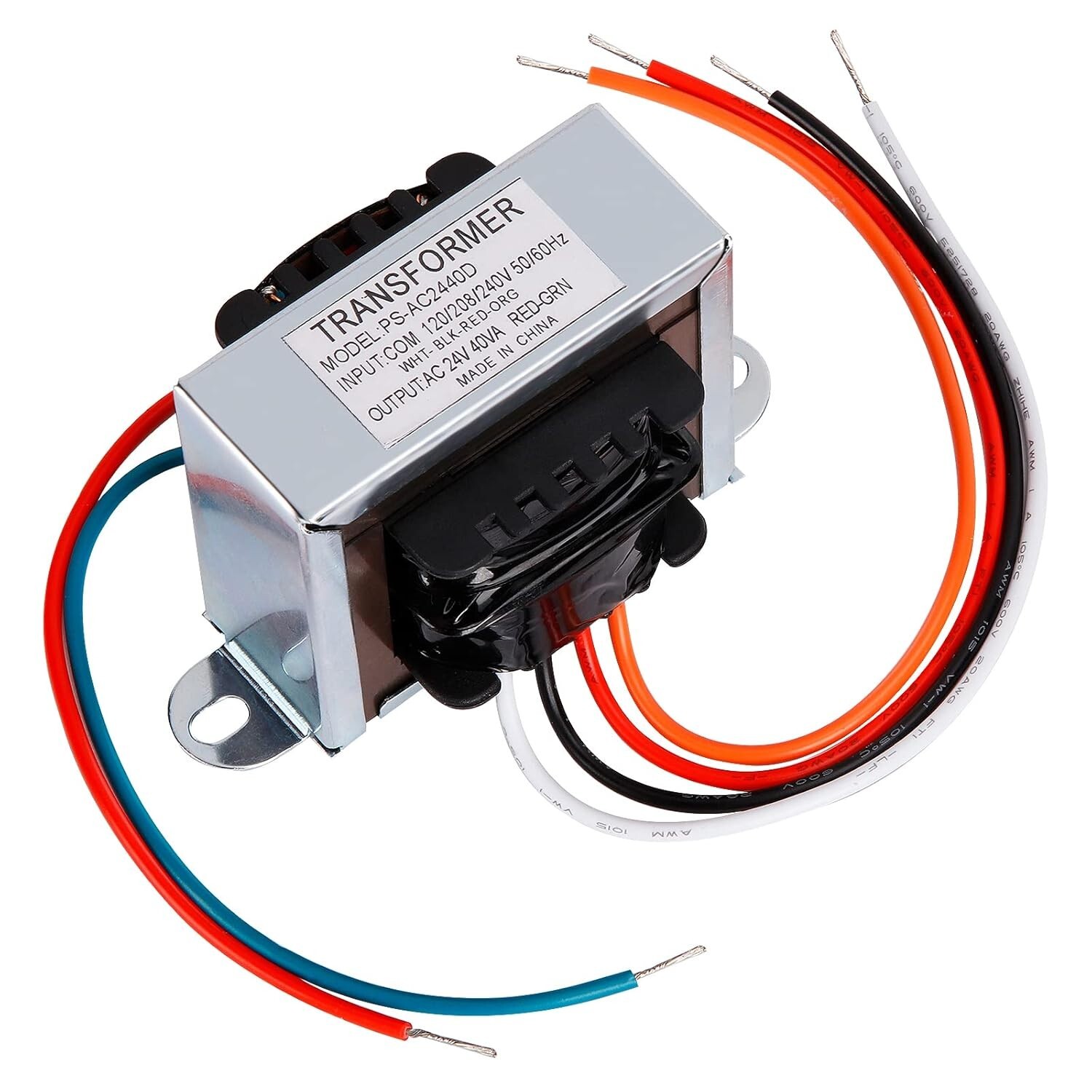

24V Isolation Transformer with Multi-Tap Design - Ideal for HVAC and Industrial

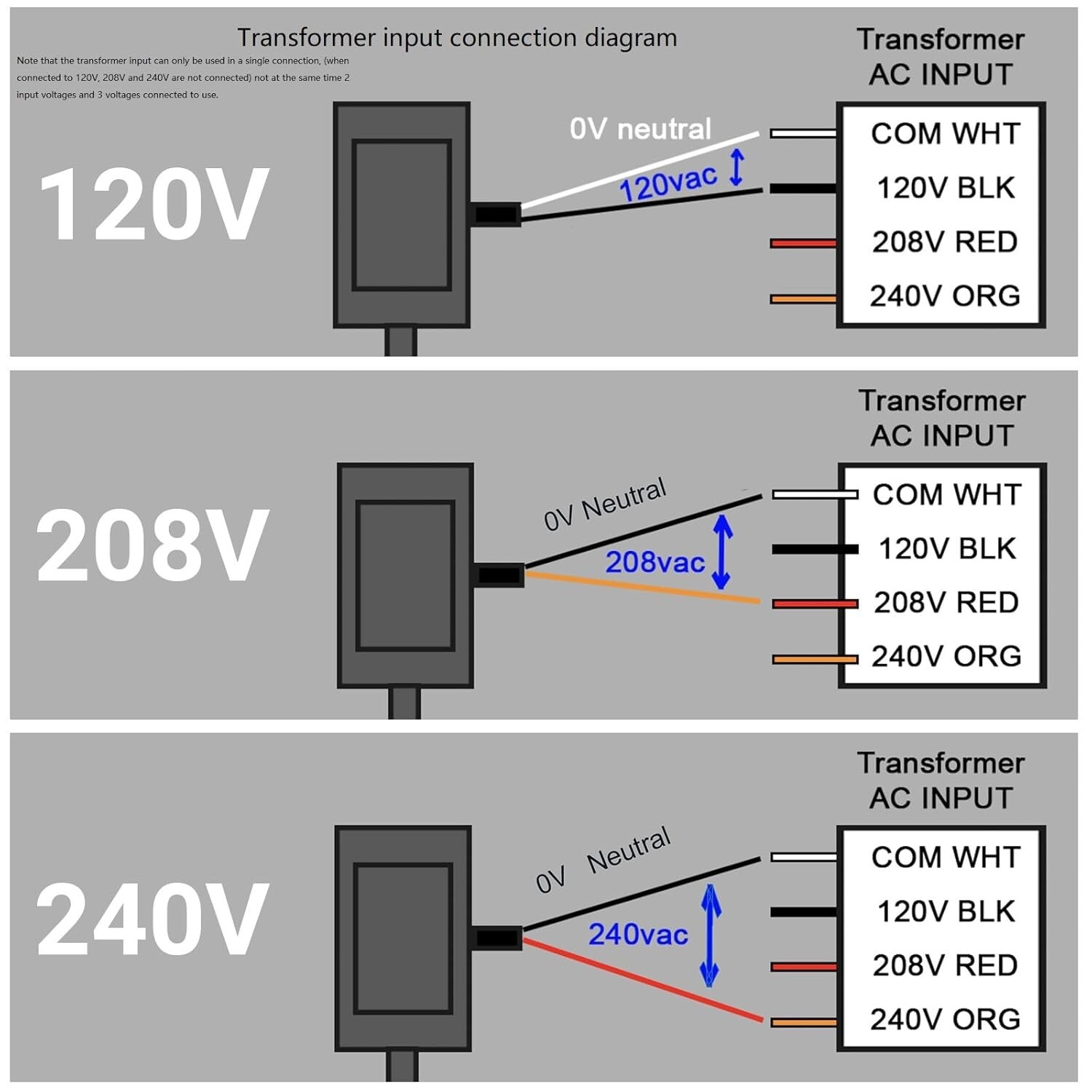

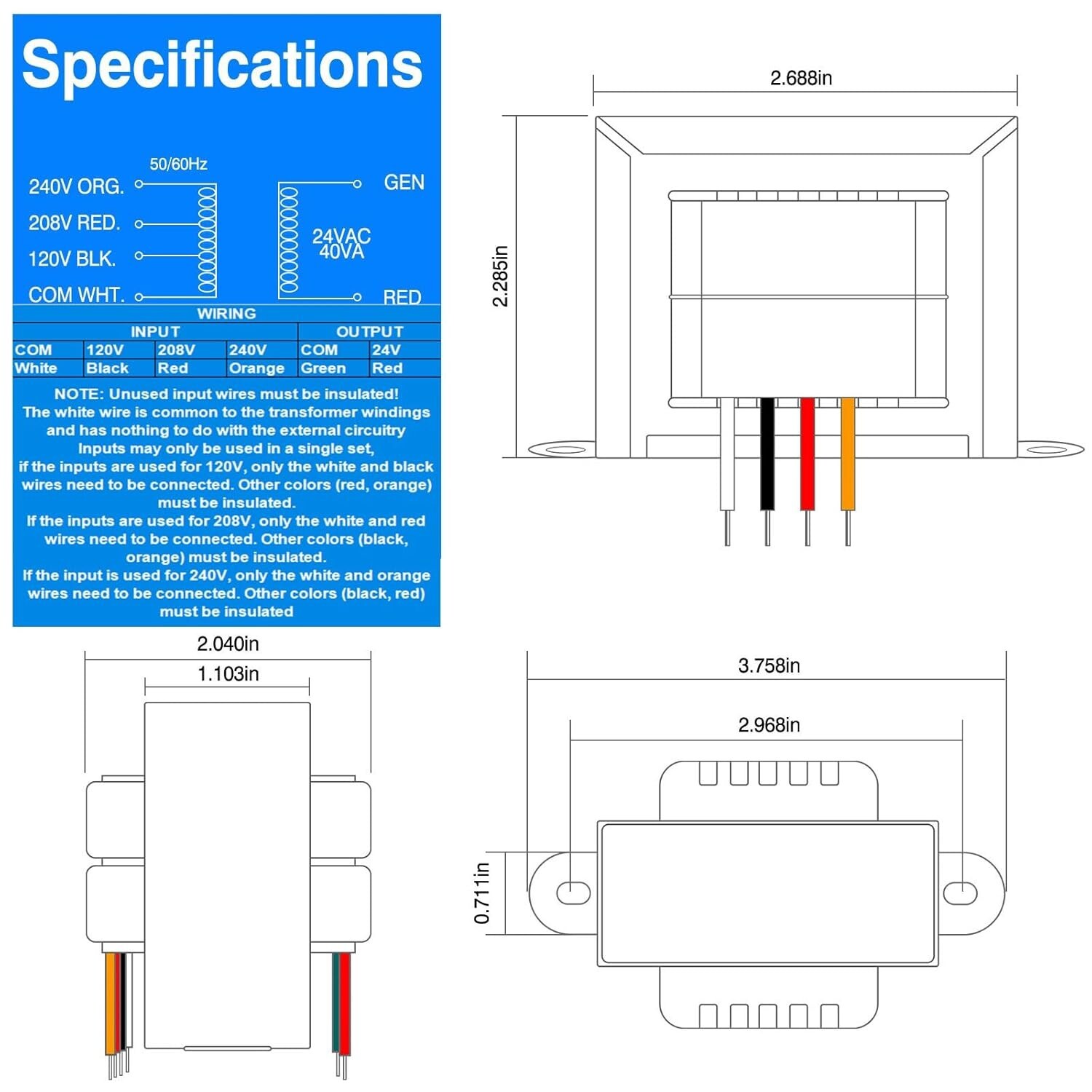

The most compact and lowest-priced option at $33.29, this new 40VA transformer steps down 120/208/240V AC to 24V AC, making it a natural fit for HVAC controls, relay circuits, and gas valves. The multi-tap primary adds flexibility for different line voltages. Its 1.66-amp rating is small, so it is best for low-power control loads rather than whole-equipment power.

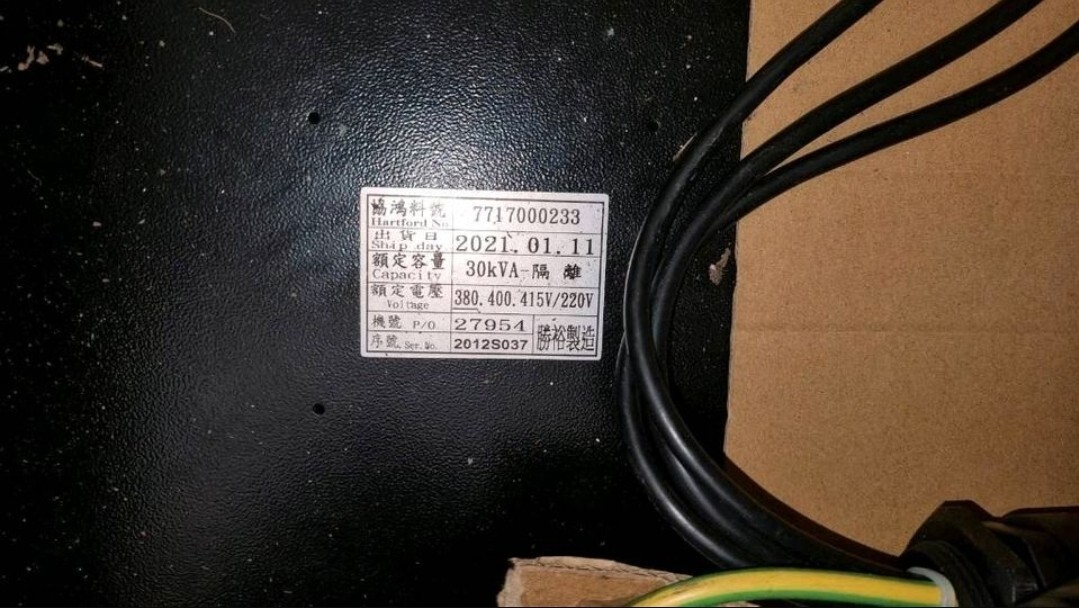

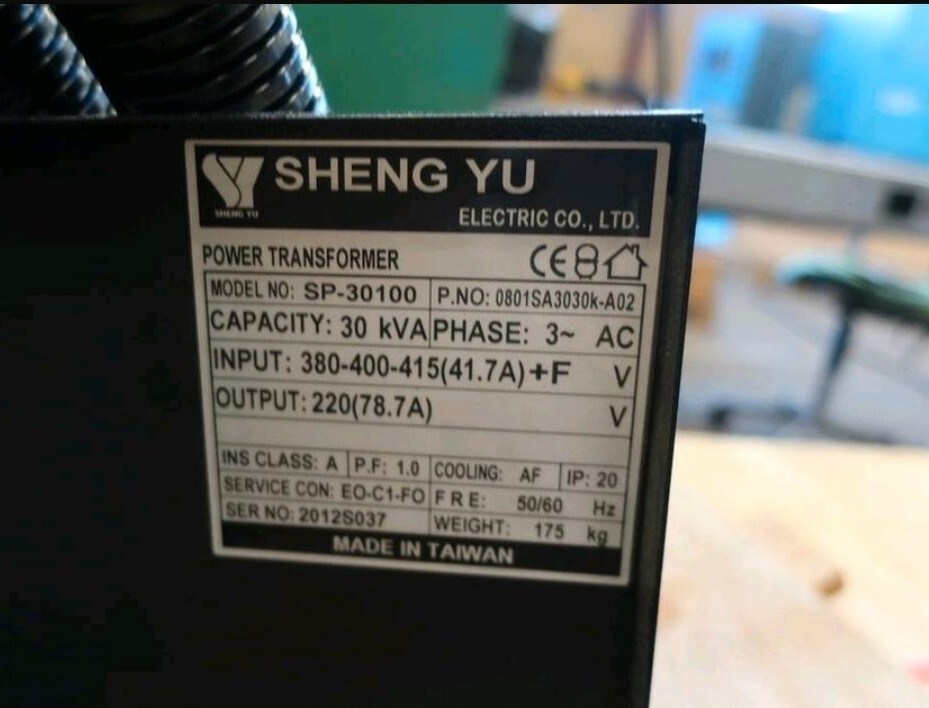

30kVA Isolation Transformer | 3-Phase Industrial Power Converter | New in BOX

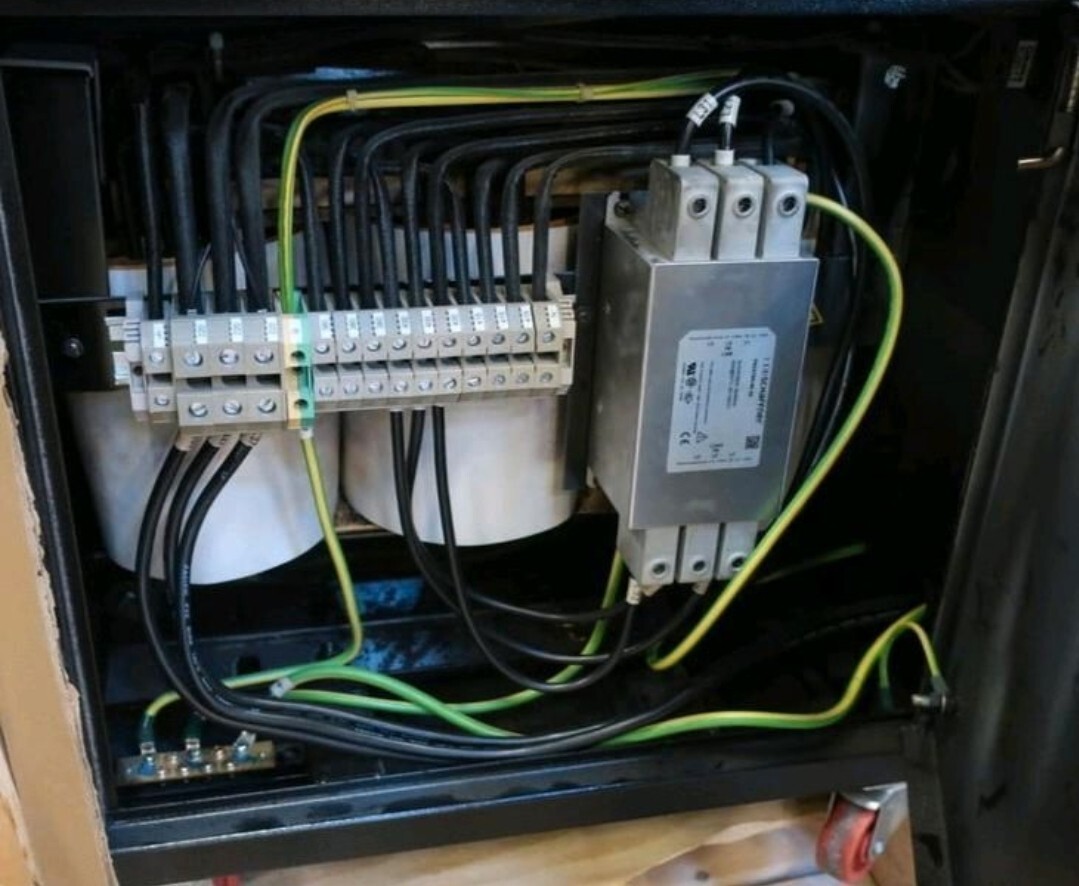

At $3,462.89, this is the highest-priced unit and also the newest in performance-focused features. The 30kVA three-phase Sheng Yu transformer includes an integrated Schaffner industrial EMC filter (model FN3270H-55-34) for cleaner power with EMI protection. It is new and unused, with a 450V primary rating. For three-phase industrial loads where noise filtering matters, this is the most complete package, but the price is a large step up from the other options.
Xtreme Power JX-200 Isolation Transformer Power Conditioner Conversion Converter
Priced at $135.00, the JX-200 is a new 200VA/200W isolation transformer that takes 120VAC in and delivers 120VAC out. It includes surge protection, a slim form factor, and is described as wall-mountable, so it suits small electronics and audio/video setups where you want isolation and conditioning without a large industrial footprint. The 200W rating limits it to small loads, and the 120V output is not a step-up or step-down.
Final Recommendation by Use Case
- For 24V control circuits: the 24V Multi-Tap Transformer at $33.29 is the clear fit.
- For low-power 120V isolation and surge protection: the Xtreme Power JX-200 at $135.00 is the best match.
- For high-capacity 480V three-phase isolation at a used price: the Hammond 1648061 at $1,000.00 gives you the most kVA per dollar.
- For new 30kVA three-phase power with EMI filtering: the Sheng Yu at $3,462.89 offers the most complete package if the budget allows.
