When the power goes out, a generator only works if you can safely connect it to your home circuits. A transfer switch lets you switch between utility power and generator power without backfeeding. The bigger decision is manual versus automatic, and then how many circuits you need. Here are four transfer switches that handle that job, ranging from a 63A automatic changeover switch to a 30A 10-circuit manual kit with a cord included.
Quick Take
The 63A automatic changeover switch is the only automatic option and has the lowest listed price here. The 30A 10-circuit kit includes a cord and inlet box for a complete manual installation. The 120V pre-wired switch suits simple panels, and the Reliance 6-circuit kit is a straightforward manual option.
Price Comparison Table
| Product | Listed Price | Price Bar |
|---|---|---|
| 30A Generator Transfer Switch Kit, 10-Circuit, 7500W | 120/240v - 10 Ft L14-30 | USD 232.99 | |
| Manual Generator Transfer Switch Kit 7500W 30A 120V Pre Wired Cable Connectors | USD 185.20 | |
| Reliance 306LRK 30Amp BackUp Power Manual Transfer Switch Kit PreWired 6-Circuit | USD 75.00 | |
| Dual Power Automatic Transfer Switch kit 63A 4P ATS Generator Changeover Switch | USD 43.95 |
Decision Matrix
| Factor | 30A 10-Circuit Kit | Manual 7500W 120V | Reliance 6-Circuit | 63A ATS |
|---|---|---|---|---|
| Operation | Manual | Manual | Manual | Automatic |
| Circuits/Poles | 10 circuits | 10 single-pole / 5 double-pole | 6 circuits | 4 poles |
Product Notes

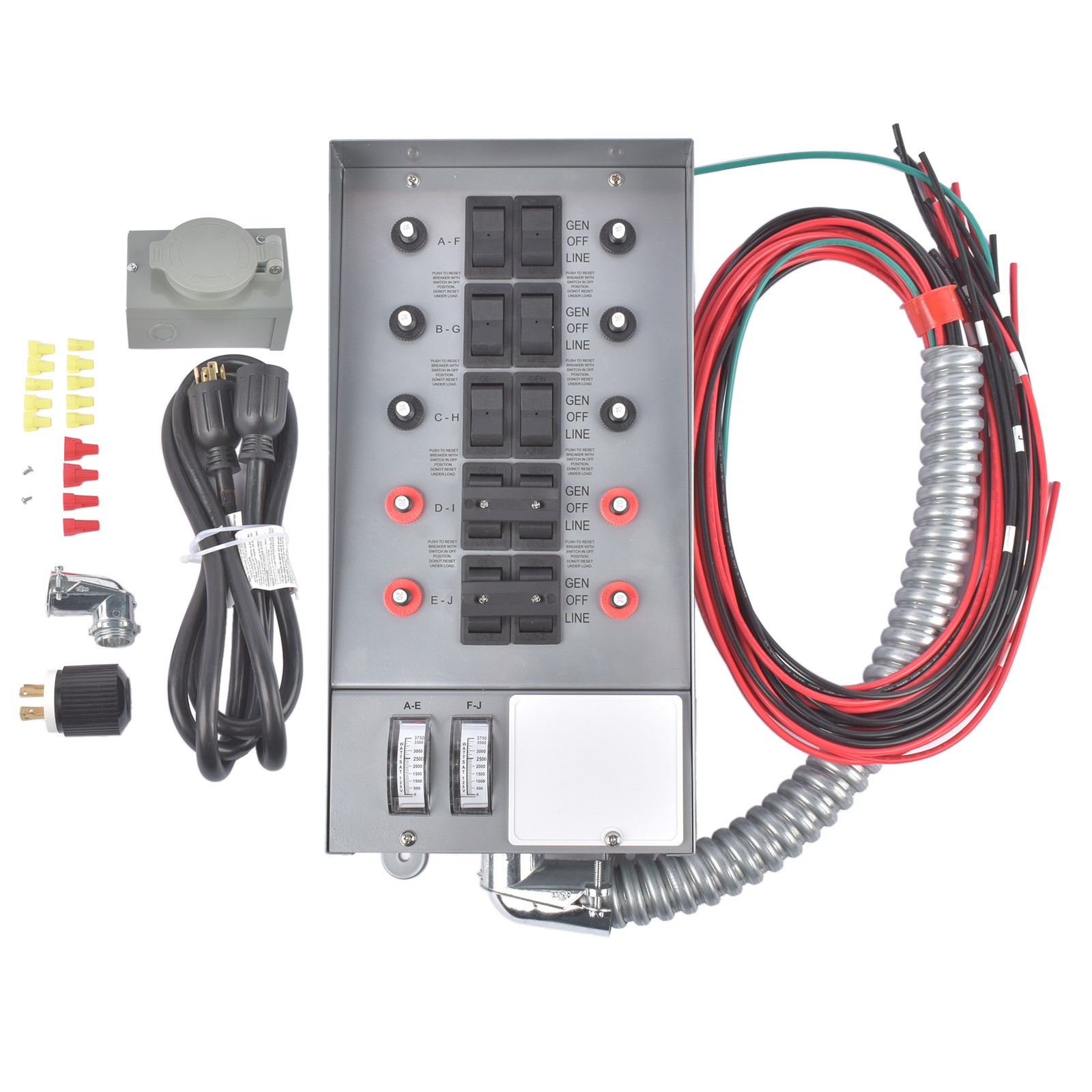

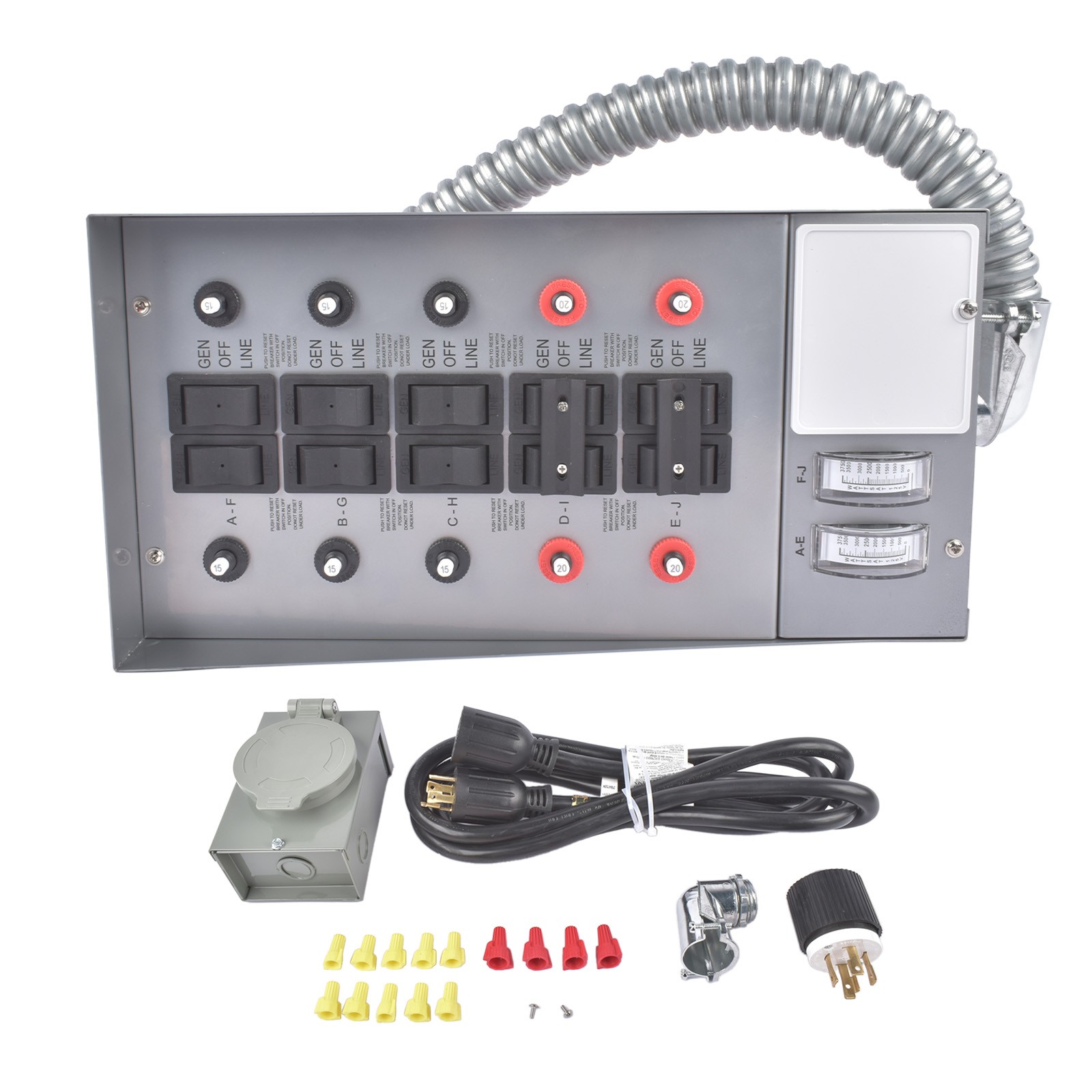

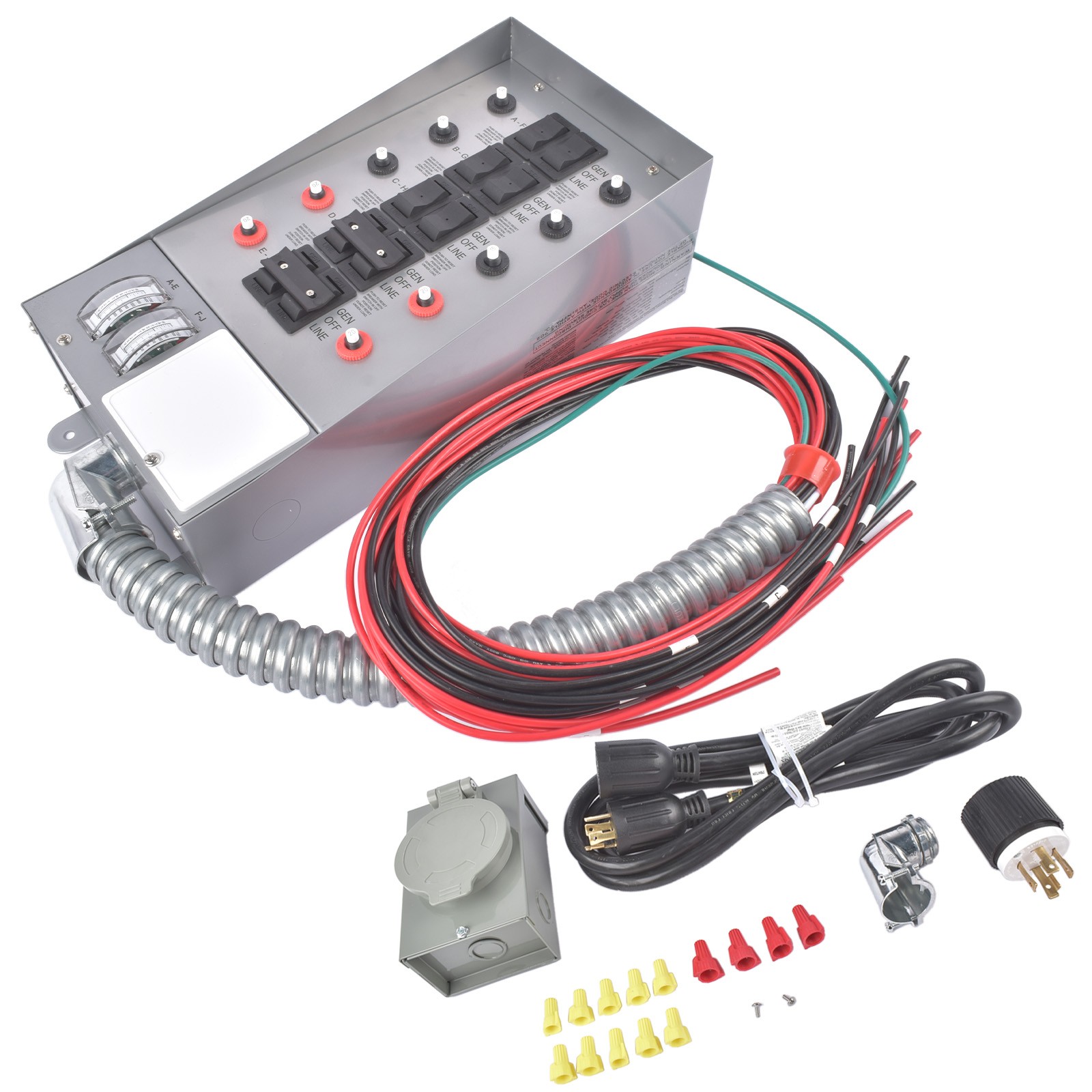

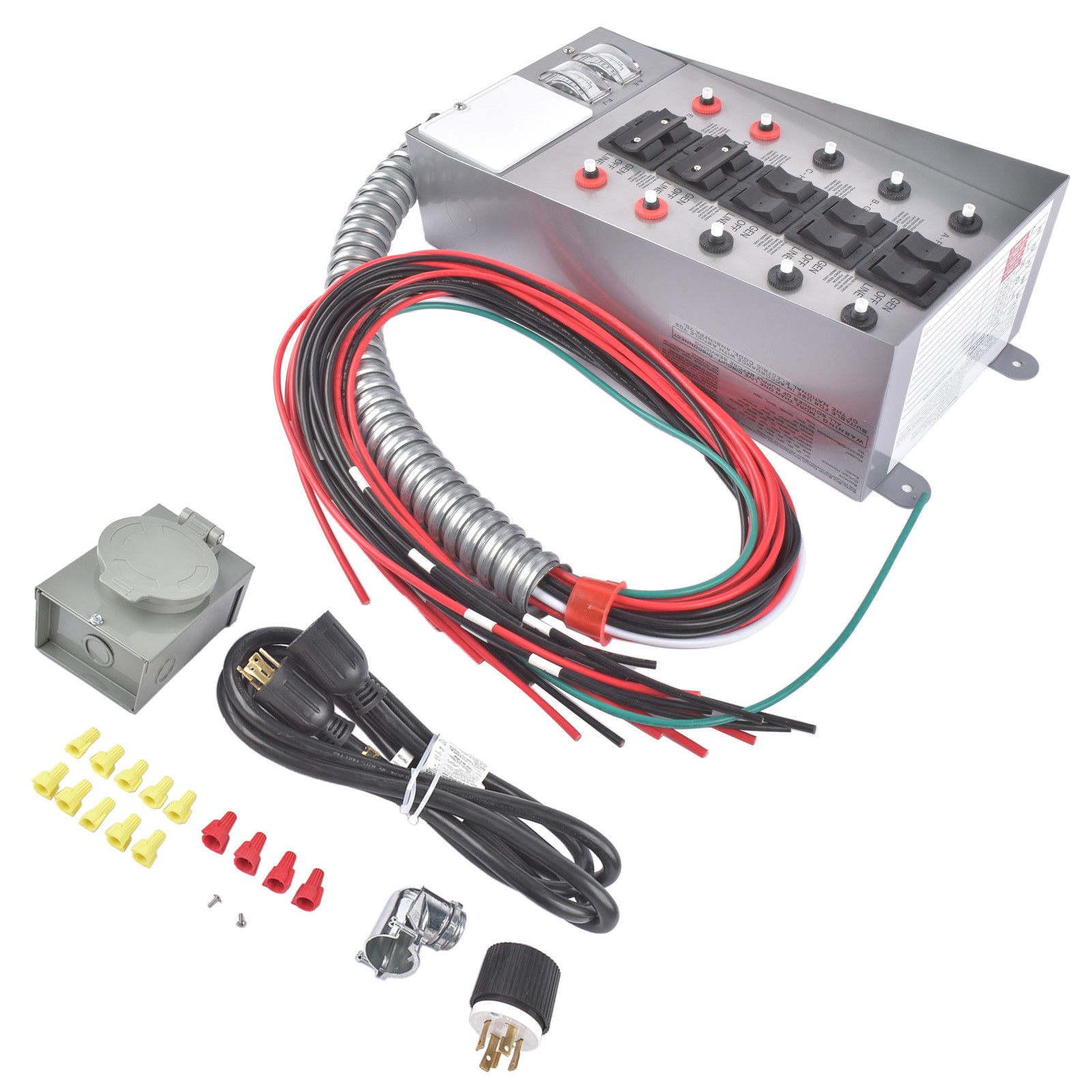

30A Generator Transfer Switch Kit, 10-Circuit, 7500W | 120/240v - 10 Ft L14-30
The most complete manual kit here. It bundles a 10 ft L14-30 cord and an inlet box, so you're not buying those separately. With 10 circuits, 7,500W capacity, and 120/240V operation, it can handle both 120V and 240V loads. The watt meters let you see how much power you're using, and backfeed protection is included. At USD 232.99, it's the most expensive option, and the listing says it's new open box, so the packaging may not be sealed. If you want a turnkey manual transfer switch with extra accessories, this is the one.
Manual Generator Transfer Switch Kit 7500W 30A 120V Pre Wired Cable Connectors
For 120V systems, this pre-wired kit is a solid match. It's rated at 30A and 7,500W, and the dual watt meter helps you monitor load. The listing supports up to 10 single-pole circuits or 5 double-pole circuits, so you can adapt it to your home. The pre-wired cable connectors simplify the hookup compared to wiring a bare switch. It costs USD 185.20, which is less than the 10-circuit 120/240V kit, but it's limited to 120V, so 240V appliances won't be fed. If your generator and panel are 120V only, this fits well.
Reliance 306LRK 30Amp BackUp Power Manual Transfer Switch Kit PreWired 6-Circuit
This Reliance kit gives you six pre-wired circuits in a manual switch rated for 30A. At USD 75.00, it's the lowest-priced manual option in this lineup. If you only need to keep a handful of circuits running during an outage, six may be enough. The trade-off is circuit count: you'll have to choose which loads to connect, and you won't get the 10-circuit capacity of the higher-priced kits. It's a manual transfer switch, so you'll need to be at home to flip the switch when the power drops. For a simple backup setup, this is a practical starting point.
Dual Power Automatic Transfer Switch kit 63A 4P ATS Generator Changeover Switch
The only automatic switch in the group. It's a 63A, 4-pole changeover switch that turns power over automatically, with a listed conversion time of about 2 seconds. It's rated for 240V AC and can handle a higher current than the 30A manual kits. Priced at USD 43.95, it's the lowest-priced item here, but it doesn't include a pre-wired panel with circuit breakers-it's a changeover switch you can build around. If you want hands-free switching and don't mind putting together your own system, this is the automatic route to take.
Final Recommendation
- For a complete manual kit with 240V support and included cord/inlet box: the 30A 10-circuit kit.
- For 120V-only setups: the 120V pre-wired manual switch with dual watt meter.
- For essential circuits: the Reliance 6-circuit pre-wired switch.
- For automatic backup: the 63A 4P automatic changeover switch.
