Choosing the right transformer for voltage regulation comes down to the circuit you need to isolate and the voltage you need on the secondary side. The four isolation transformers in this comparison could not be more different in scope: one is a small HVAC control unit, one is a fixed-ratio single-phase transformer, one is a multi-tap panel transformer, and one is a high-frequency unit for induction heating equipment. Matching the transformer to the load is the whole game.
Quick take
Four isolation transformers, four different voltage-regulation jobs. The foot-mount Versatile unit is the control-circuit option, built around a 40VA spec and a 1.66A secondary. The Noratel FR84B-460230 is a new encapsulated single-phase transformer with a fixed turns ratio. The GBT Electronics POT is a used multi-tap control transformer that can adapt to different line and load voltages. The NOS InductoHeat 14815-074 is a new-old-stock high-frequency isolation transformer intended for induction heating equipment.
Listed-price comparison
The table below shows the listed price and relative price position for each unit.
| Product | Listed Price | Price Bar |
|---|---|---|
| Noratel Industrial Isolation Transformer - FR84B-460230 130VA | USD 278.95 | |
| Versatile 24V Isolation Transformer with Foot Mount for HVAC and Industrial Use | USD 33.29 | |
| GBT Electronics POT 500VA Industrial Control Transformer Multi-Tap Single-Phase | USD 200.00 | |
| NOS InductoHeat 14815-074 Transformer Industrial Surplus New Unused | USD 850.00 |
Decision matrix
| Product | Best for | Keep in mind |
|---|---|---|
| Noratel FR84B-460230 | Fixed-ratio single-phase isolation | New condition, 1:30 turns ratio |
| Versatile Foot-Mount | HVAC and industrial control circuits | 40VA, 1.66A current rating |
| GBT Electronics POT | Multi-tap stepping in control panels | Used unit, 50/60Hz single-phase |
| NOS InductoHeat | High-frequency induction heating spares | 30kHz, 650V primary, 250A primary current |
Product notes
Noratel FR84B-460230
This is a new encapsulated single-phase isolating transformer with separate insulated windings moulded in self-extinguishing polyurethane. The fixed 1:30 turns ratio is the key spec: choose it when you want a predictable voltage step and don't need to change taps. The same transformer family is used in applications ranging from ships and trains to lifts, escalators, cranes, and medical devices. It is a clean, basic isolation stage for single-phase industrial circuits. The limitation is that the ratio is fixed, so your secondary voltage depends entirely on the primary you feed it. If you need multiple output levels or a different ratio, you'd need a transformer with more flexibility.
Versatile Foot-Mount Isolation Transformer
This foot-mount transformer steps a 120/208/240V primary down to a 24V secondary, which makes it a practical fit for heating and air conditioning controls. It is meant for relays, gas valves, and similar control loads; it offers AC-to-AC step-down conversion and an IP20 rating. The no-load output range is 26.6V-27.5V AC. The trade-off is capacity: with a 1.66A secondary current, this unit is for control circuits rather than high-draw equipment. Keep the load within that current limit and it's a compact, mountable isolation option.
GBT Electronics POT
This is a used single-phase control transformer with multiple terminal taps: +20, 0, -20, 230, 460, 600 on one side, and 110, 0, 220, 0 on the other. That makes it useful for step-up or step-down jobs in machinery control panels or workshop power distribution where the incoming voltage isn't fixed. It runs on 50/60Hz and comes in clean condition with minor cosmetic shelf wear and intact terminals and labeling. The main limitation is that it's a used unit; inspect the tap positions and connections against your load before wiring. Multi-tap flexibility is the reason to choose it.

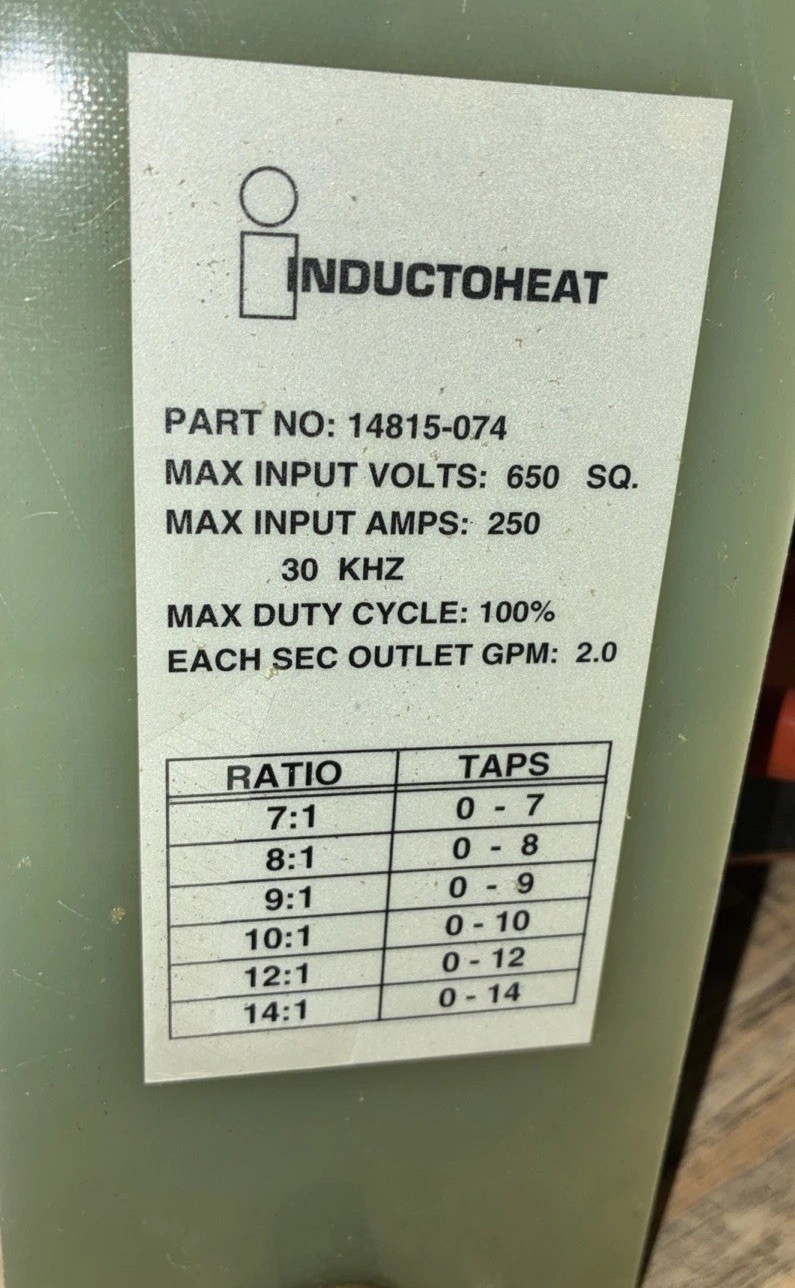

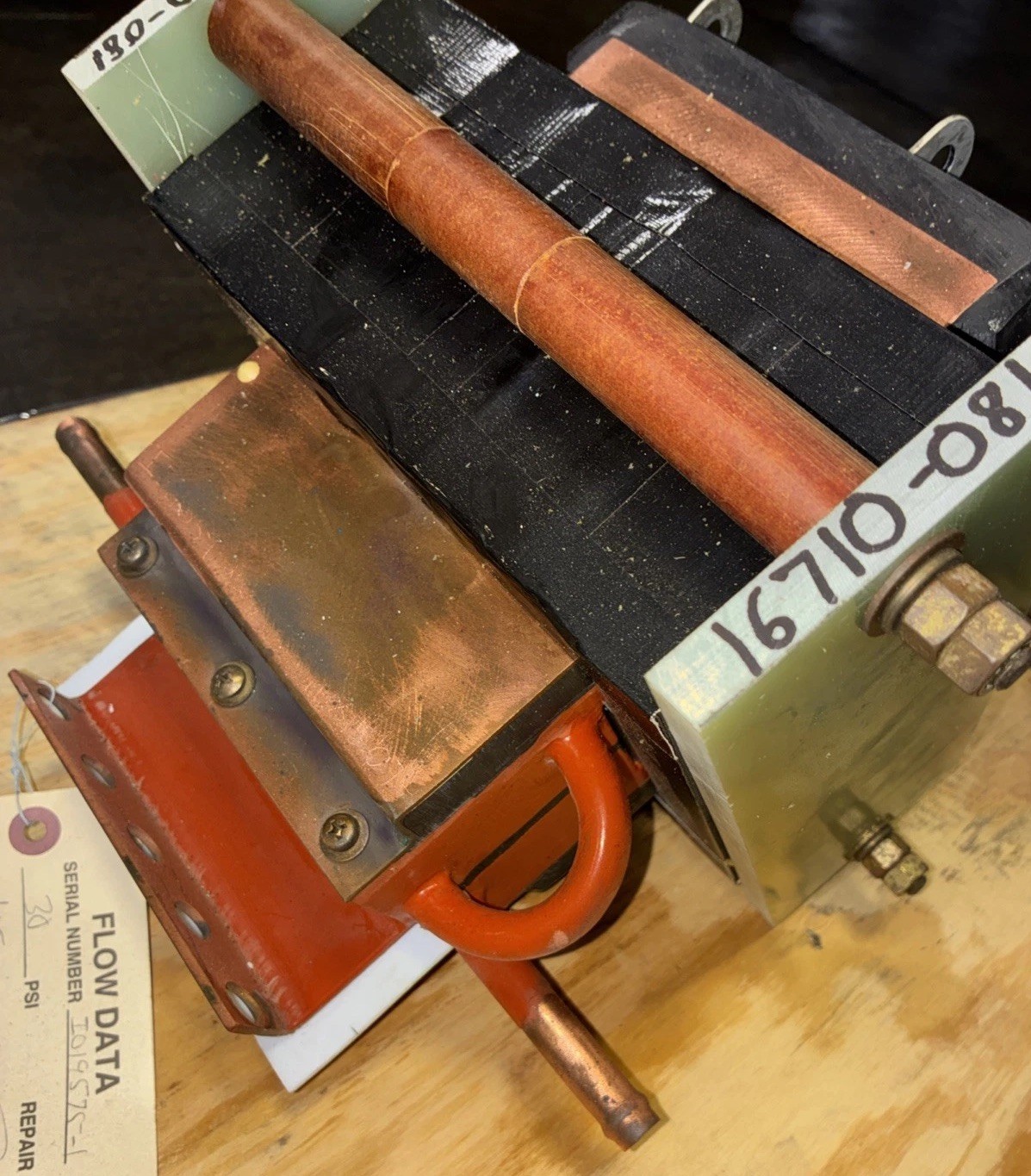

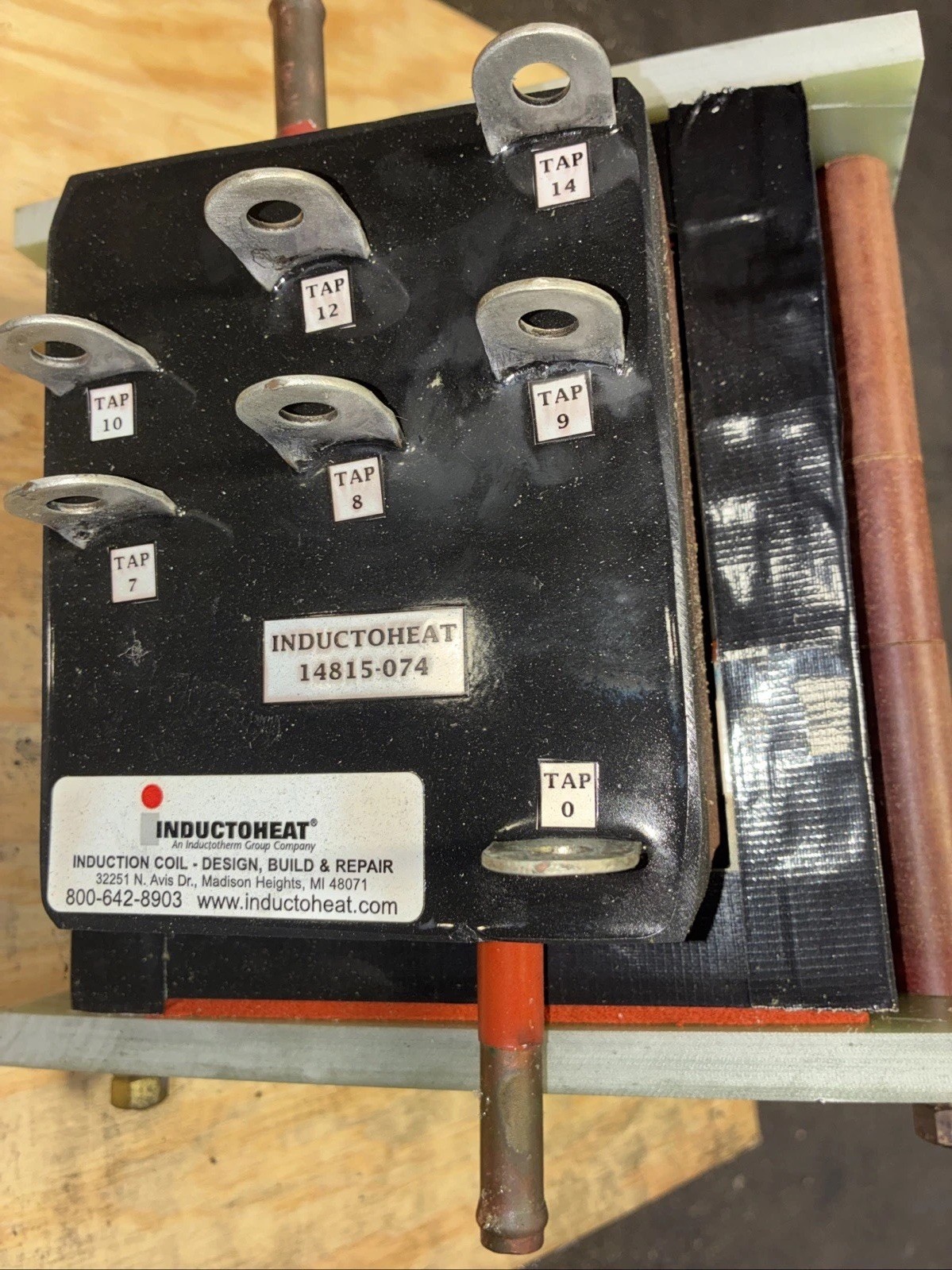

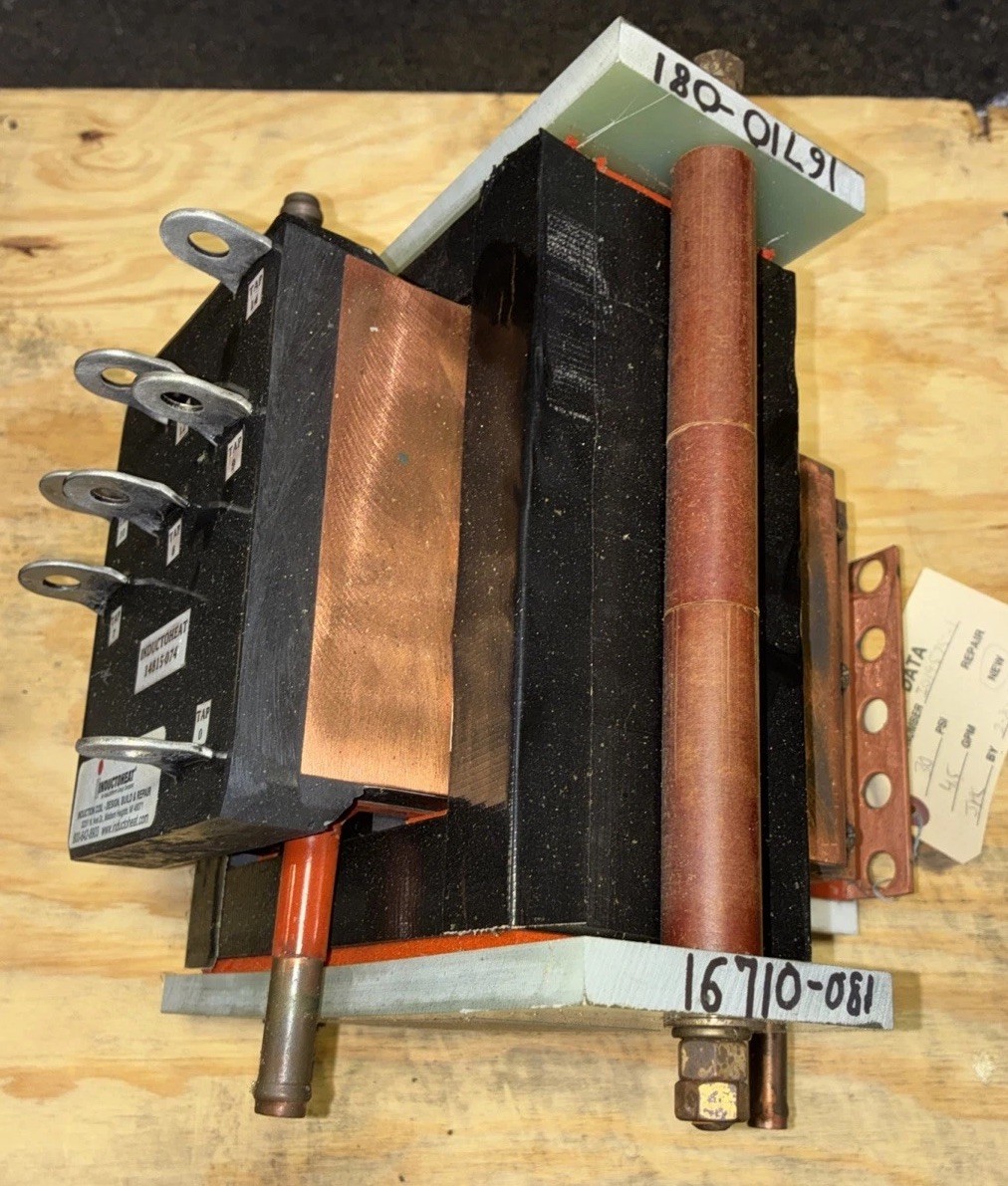

NOS InductoHeat 14815-074
This new-old-stock transformer has never been installed or wired, and it comes from a climate-controlled, dry storage environment. With a 30kHz operating frequency, a 650V AC primary rating, and a 250A primary current rating, it is a replacement part for InductoHeat induction heating machinery rather than a general-purpose line transformer. The new, unused state is the main reason to pick it if you maintain that equipment. The limitation is specialization: it won't fit a typical 50/60Hz control circuit. Match the part number 14815-074 to your machine before purchase.
Final recommendation by use case
- HVAC and low-voltage control circuits: Choose the Versatile Isolation Transformer with foot mount; it is the lowest listed price in this group and sized for control loads.
- Fixed-ratio single-phase isolation: Choose the Noratel FR84B-460230 if you want a new encapsulated unit with a predictable 1:30 turns ratio.
- Multi-tap stepping in a 50/60Hz panel: Choose the GBT Electronics POT for its multiple taps, but account for the used condition.
- High-frequency induction heating spares: Choose the NOS InductoHeat 14815-074 for a new, unused replacement part in an induction heating system.
