When you need voltage regulation for a mower, motorcycle, or older tractor, the biggest hurdle is finding a regulator that matches the charging system. The four options here span $9.99 to $51.99 and cover Kohler mower engines, Harley EVO 1340 motorcycles, and older Massey Ferguson, International, and Massey Harris tractors. The main differences are fitment range, terminal layout, and listed price. Confirm your alternator output and OEM part number first, then use the comparison below.
Quick take
- The two CHUSYYRAY regulators share a silver housing and a long list of interchangeable part numbers, so both are aimed at Kohler replacement work.
- The TCMT regulator targets a specific motorcycle application and replaces OEM number 74519-88.
- The 12-volt, 4-terminal flat-mount regulator is the only option here with tractor coverage across Massey Ferguson, International, and Massey Harris machines.
Listed-price comparison
| Product | Listed price | Price bar |
|---|---|---|
| NEW 8969 Voltage Regulator For Kohler 20 22 23 25HP Rectifier Regulator 41 | USD 9.99 | |
| Top Quality Voltage Regulator Rectifier Replacement For Kohler Engines | USD 9.99 | |
| Voltage Regulator Rectifier Fit For Harley EVO 1989-1999 1340 Replace 74519-88 | USD 27.80 | |
| Voltage Regulator - 12 Volt - 4 Terminal - Flat Mount | USD 51.99 |
Decision matrix
- For a Kohler engine with a 3-terminal AC, B+, AC row, the Top Quality Voltage Regulator Rectifier Replacement For Kohler Engines gives the clearest fitment detail.
- For a Kohler or Deere replacement with many listed interchangeable numbers, the NEW 8969 Voltage Regulator covers references such as 4140309 and AM102596.
- For a Harley EVO 1340 from the 1989-1999 model range, the regulator that replaces 74519-88 is the direct match.
- For a Massey Ferguson, International, or Massey Harris tractor, the 12-volt, 4-terminal flat-mount regulator offers the broadest model list among the four options.
Product notes

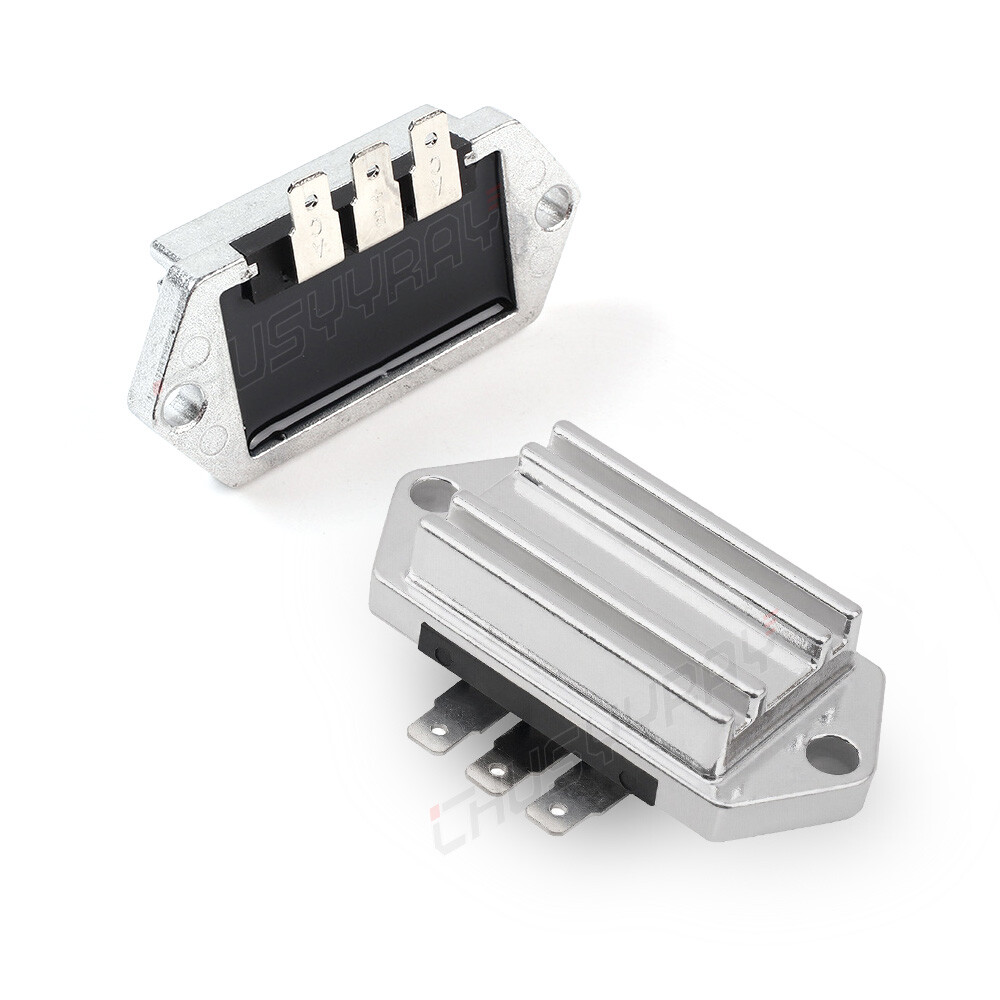

NEW 8969 Voltage Regulator For Kohler 20 22 23 25HP Rectifier Regulator 41

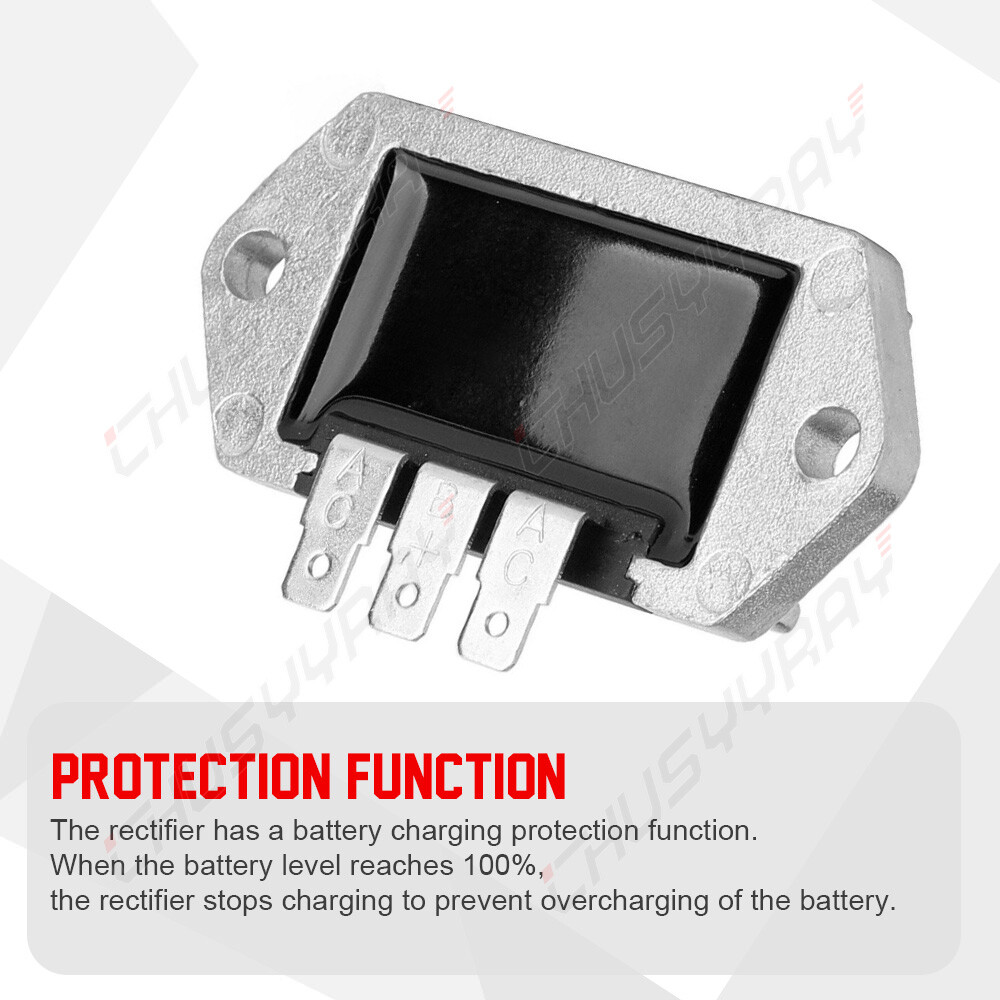

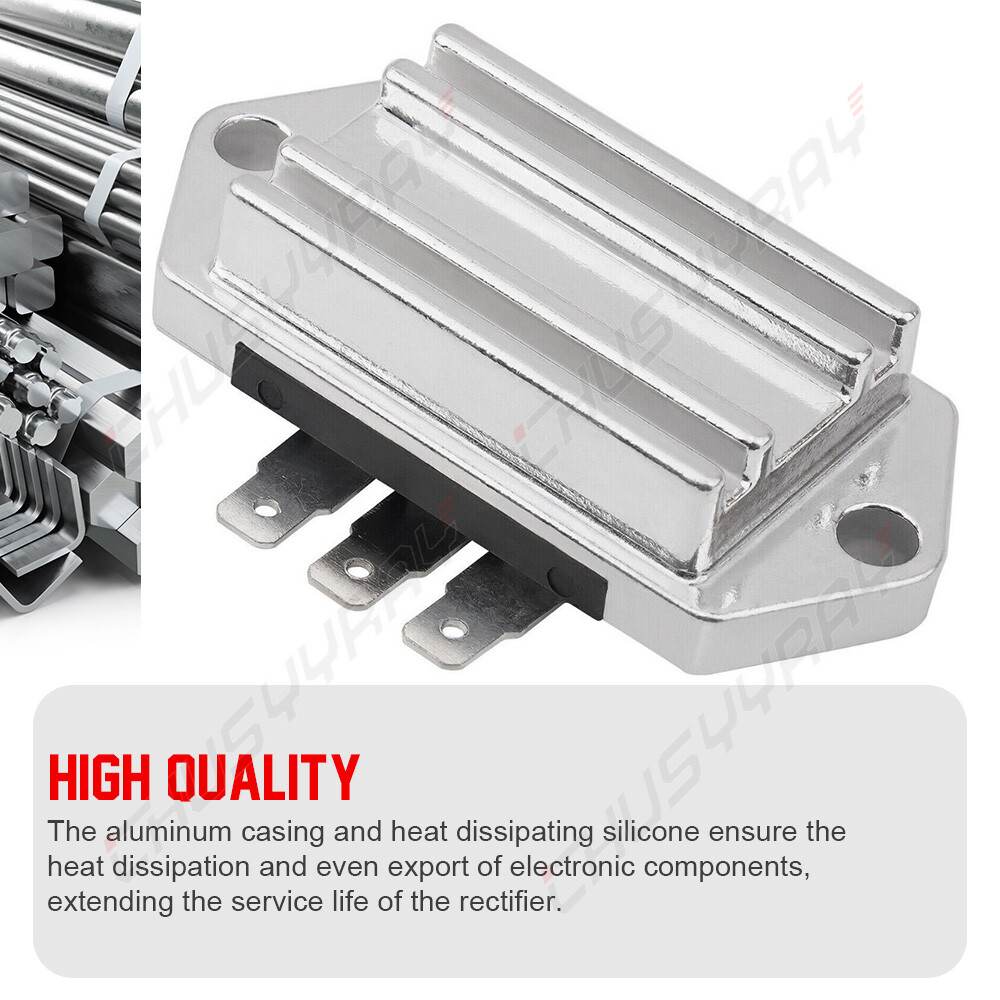

This option is the most straightforward 8969 replacement style. The fitment list includes Kohler lawn mower engines and interchangeable part numbers such as 11979, 4140309, 4140308, 4140308S, AM102596, and 234279. It uses an aluminum housing and heat-dissipation silicone, which helps spread heat, and it has charging protection that stops charging when the battery is full. Choose it when you want a silver regulator with a long set of cross-reference numbers. The limitation is that the fitment list is broad, so you still need to match your exact Kohler or Deere OEM number before ordering. It is a common mower application, but confirmation starts with your existing part number.

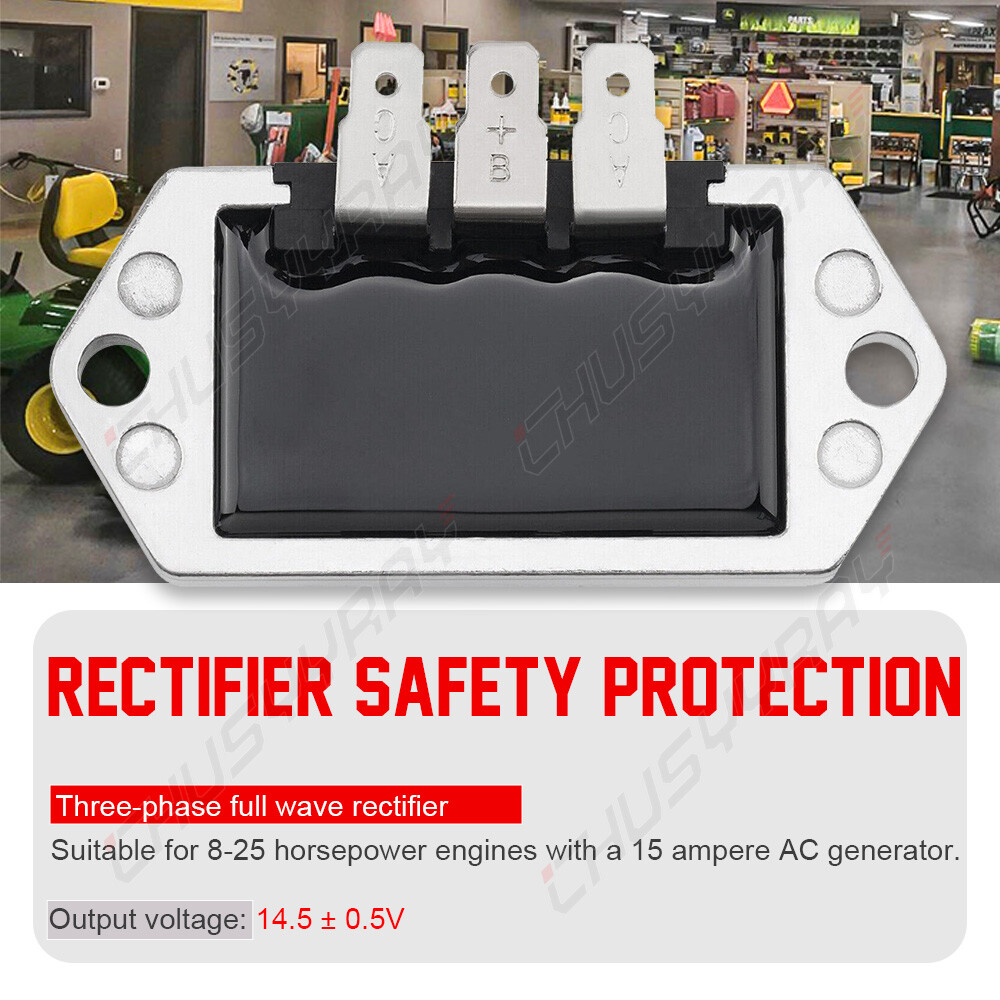

Top Quality Voltage Regulator Rectifier Replacement For Kohler Engines
This regulator is the more detailed option for Kohler engines with a 15-amp alternator. It has a 3-terminal row of AC, B+, AC and is rated at 14.5V ± 0.5V for 8-25 hp engines. The same interchangeable part numbers appear here, including 4140309 and AM102596. Choose it when the alternator output and terminal layout matter most, because both details are explicit. The limitation is that the 3-terminal arrangement has to match your harness. If your Kohler uses a different plug, this replacement is not the one to start with.
Voltage Regulator Rectifier Fit For Harley EVO 1989-1999 1340 Replace 74519-88
This is the only part in the group aimed at a motorcycle application. It fits Harley EVO 1340 models from 1989-1999 and replaces OEM number 74519-88. The black finish and 14.5V working voltage give you two details to compare with your original part. Choose it when you are working on an EVO 1340 in that model range and you already know the 74519-88 OE number. The limitation is that its stated fitment is specific to those EVO models, so it is not a universal replacement for other charging systems.

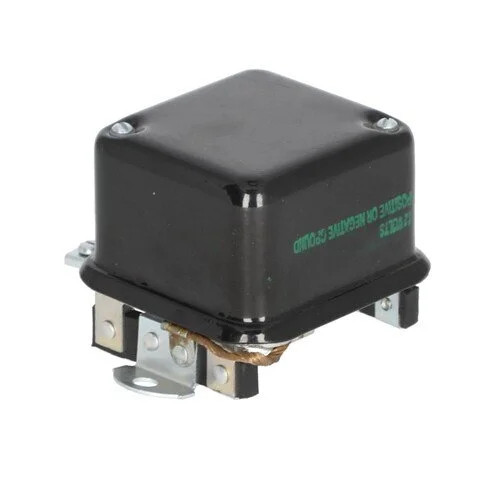

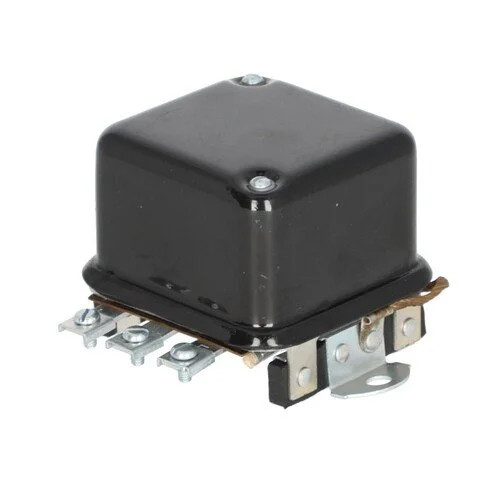

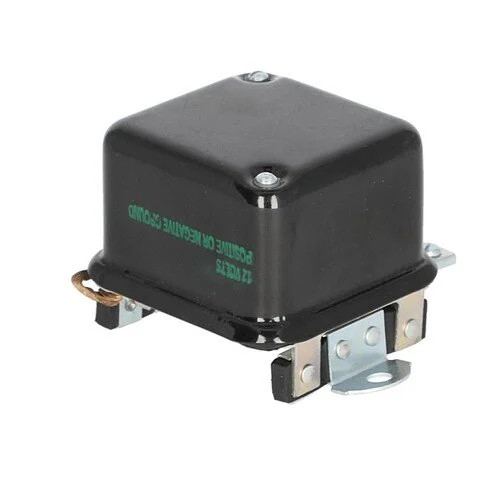

Voltage Regulator - 12 Volt - 4 Terminal - Flat Mount
This regulator is for older tractor charging systems. It is a 12-volt, 4-terminal flat-mount design, and the compatible models include Massey Ferguson tractors and backhoe loaders, International tractors such as the Cub and 460, a Massey Ferguson combine group, and a Massey Harris tractor. It replaces OEM numbers like International 121577C1 and Massey Ferguson 182548M92. Choose it when you need one part that crosses several tractor families. The limitation is that the 4-terminal flat-mount design and the Delco Remy generator references have to match your wiring and generator setup, so check those numbers before assuming it works with your system.
Final recommendation
If you want the clearest Kohler fitment details, start with the Top Quality Voltage Regulator Rectifier Replacement For Kohler Engines. If the bike is a Harley EVO 1340 from the stated model years, the regulator tagged with the 74519-88 OE reference is the direct choice. For a Massey Ferguson, International, or Massey Harris tractor, the tractor-oriented regulator offers the widest model coverage among the four options.
