When you're choosing among power meters energy management products, you're really matching the tool to the system it will watch. The GE PQMII-T20-C-A is a power quality meter that sits at the electrical feed and measures what the power looks like. The Schneider Electric Insight Home (865-0330) is a gateway that connects a Schneider solar, storage, or backup system to a monitoring view. Both help you understand energy, but they answer different questions. The right pick depends on where your monitoring need starts.
Quick verdict
Pick the GE PQMII if you need a meter that reports electrical quality at the panel. Pick the Schneider Insight Home if you want a gateway for a Schneider energy system. The Schneider is listed at $397.95; the GE is listed at $649.99. That price gap matters, but the bigger factor is the job each product is built to do.
At a glance
| Product | Listed Price | Price Bar | Condition | Primary Role |
|---|---|---|---|---|
| GE PQMII-T20-C-A Power Quality Meter 8A 250VAC | $649.99 | Used | Power quality meter with voltage, current, frequency, power factor, kW, kvar, kVA, THD, and Modbus | |
| Schneider Electric Insight Home (865-0330) Energy Monitoring & System Gateway | $397.95 | New | Gateway for Conext solar, storage, and backup systems with InsightCloud remote access |
Where each product wins
- The GE PQMII wins for electrical measurement depth. It accepts 1A or 5A CT inputs, can connect directly up to 600 VAC, and communicates over RS485 Modbus.
- The Schneider Insight Home wins for system-level monitoring of Schneider residential power systems. It is positioned as the supported gateway for residential and light commercial installations. It feeds system status to InsightCloud, so you can check performance remotely and track it over time.
Product notes

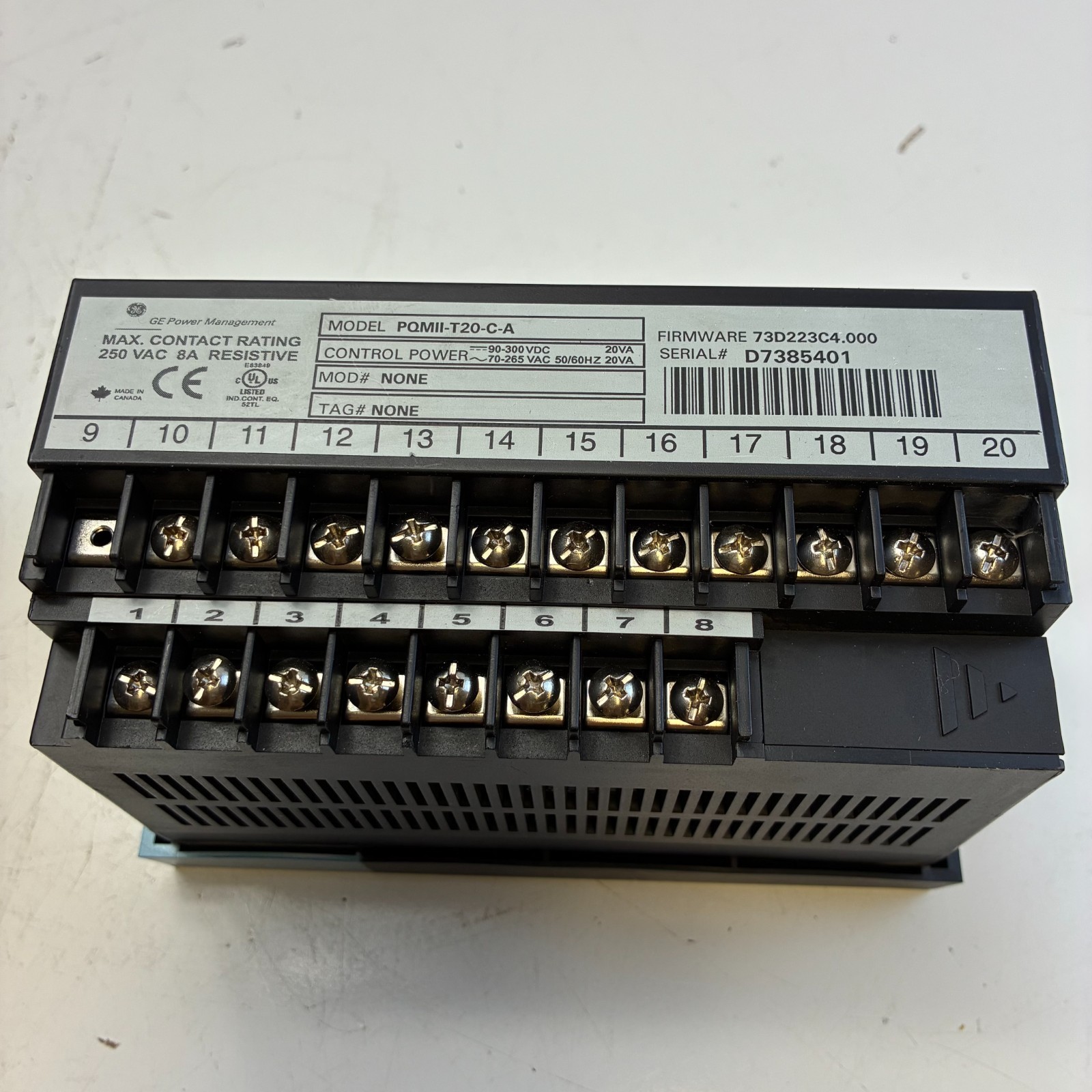

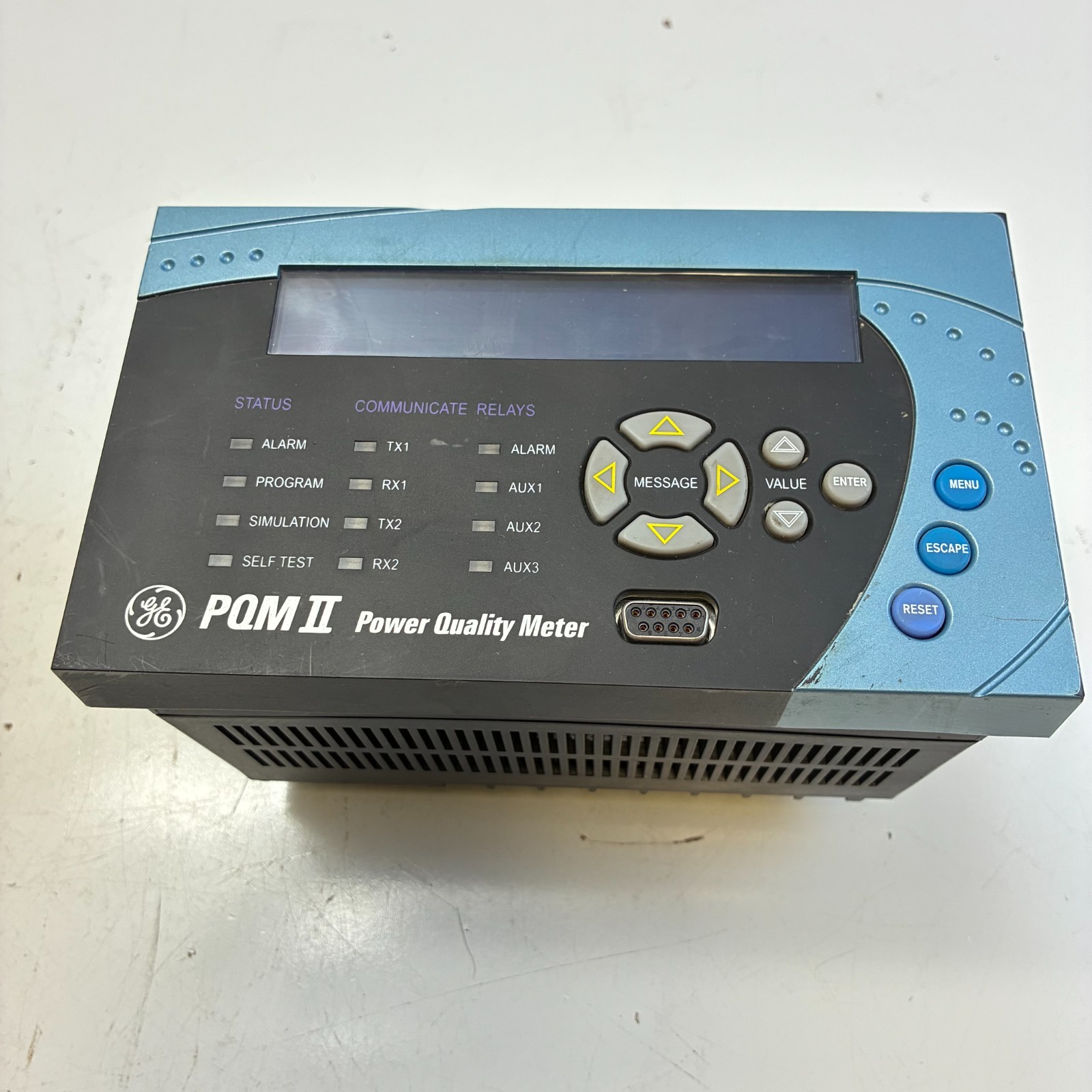

GE PQMII-T20-C-A Power Quality Meter

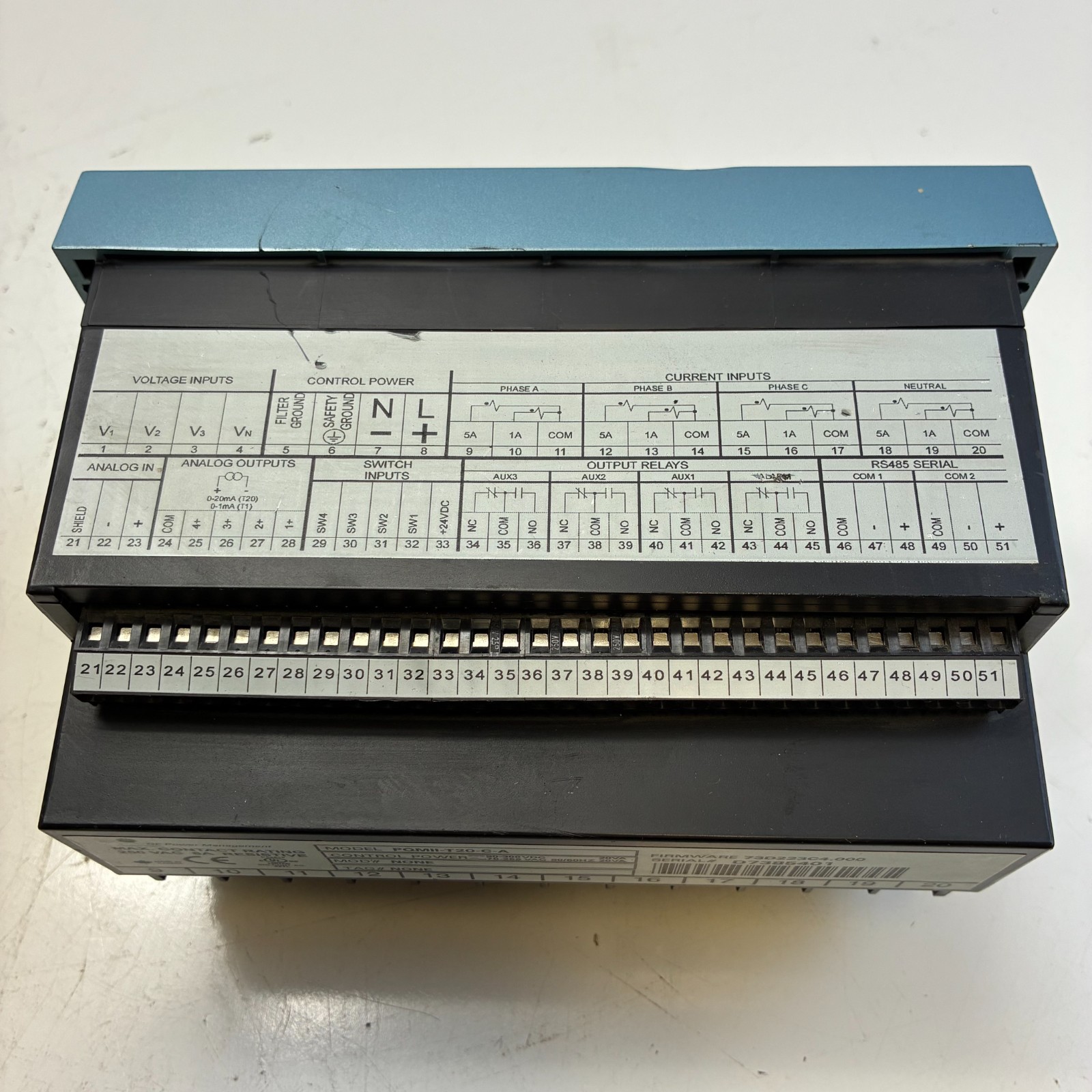

The GE PQMII is the choice when you need to know exactly what the electrical feed is doing. It measures the core power quality parameters and gives you a complete picture of the circuit. The "T20" option adds three analog outputs for 4-20 mA signals, and the "C" option adds four programmable digital/logic inputs, so it can fit into a controls setup. The meter is listed as used and fully functional. That used condition is the main limitation: you are buying a pre-owned instrument, so the known trade-off is condition rather than capability.

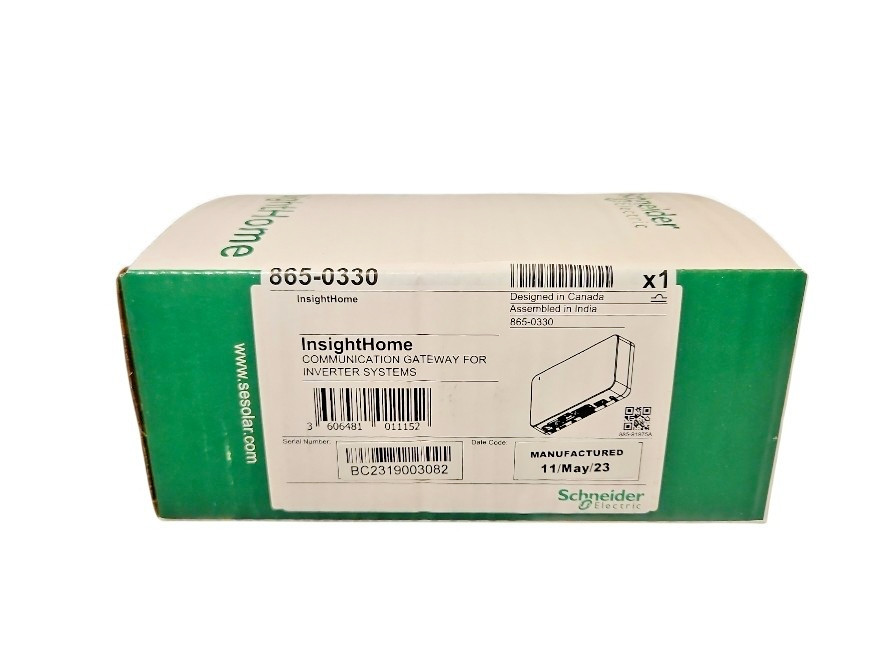

Schneider Electric Insight Home (865-0330)
Schneider's Insight Home is built for a different part of the energy picture: residential and light commercial systems in the Conext line. It is the control and monitoring gateway for that equipment, and it is listed as new. The limitation is scope: it serves Schneider's ecosystem rather than acting as a standalone meter for arbitrary circuits. If you already have or are planning a Conext system, this gateway is the direct match, and for a Conext-based installation it is the piece that makes the whole system work together as one system in practice.
Final choice by use case
- For panel-level power quality analysis on a general electrical circuit, use the GE PQMII. It's the instrument that gives you the detailed electrical picture.
- For remote monitoring of a Schneider energy system, use the Insight Home. It's the gateway that ties that system together.
