Choosing between solar combiner boxes comes down to one practical question: how many panel strings do you need to bring together, and at what current do you want the circuit breaker to trip? The four options here split into two approaches. One 2-in/2-out box uses 20A string inputs and a 20A breaker for a focused, smaller array. The other three are 4-string 63A boxes that consolidate more panel feeds behind a 550V, 63A main breaker. Two of the three 4-string boxes carry the same title and stated specs; the third uses slightly different wording but the same electrical ratings.
Quick take
If you are combining exactly two panel feeds and want a 20A protection path with a fuse, surge protector, and miniature circuit breaker in one enclosure, the 2-in/2-out box is the direct fit. If you are pulling together four panel strings and want a 63A main breaker with string fuses, the 4-string options address that layout. At a glance, the 2-in/2-out box lists for USD 125.82, while each 4-string 63A box lists for USD 62.54. The two identical 4-string entries mean the four-string/63A specification is the lower-priced package.
Listed-price comparison
| Product | Listed price | Bar | Best for |
|---|---|---|---|
| 2 in 2 Out Solar Combiner Box with 20A PV Fuse and DC 20A Circuit Breaker | USD 125.82 | Two panel feeds with 20A line protection and surge/fuse protection | |
| Solar Combiner Box PV Combiner 63A Circuit Breaker 4 String For Solar Panel Kit | USD 62.54 | Four strings behind a 63A 550V breaker | |
| Solar Combiner Box PV Combiner 63A Circuit Breaker 4 String For Solar Panel Kit | USD 62.54 | Same four-string setup, identical stated specs | |
| Solar Combiner Box PV Combiner Circuit Breaker 63A For Solar Panel Kit 4 String | USD 62.54 | Four-string wiring with the same 63A 550V breaker |
Decision matrix
Before you pick, settle three questions:
- How many strings? The 2-in/2-out handles two inputs and two outputs. The 4-string boxes handle four panel strings.
- What per-string current? The 2-in/2-out is sized for 20A per string. The 4-string boxes use 10A rated current fuses on the strings.
- What voltage ceiling? The 2-in/2-out is rated for a 500V system. The 4-string boxes use a 550V circuit breaker.
Product notes
2 in 2 Out Solar Combiner Box,Pv Combiner Box with 20A PV Fuse,Dc 20A Circuit Br
This box is built for a compact two-input/two-output layout. It is rated for a maximum input current of 20A per string and a 20A DC circuit breaker, with support for up to 20kW in a 500V system. The protection package combines a miniature circuit breaker, a Class T2 surge protective device, and a fuse, so the box covers short circuit, overvoltage, overcurrent, leakage, and lightning-related risks. It is new and made from ABS/PC. If you are only combining two panel feeds, this is the direct fit. The trade-off is the lower string count: it won't gather four separate strings the way the 63A models can, and the 20A breaker means the output path is sized for lower current.
Solar Combiner Box PV Combiner 63A Circuit Breaker 4 String For Solar Panel Kit

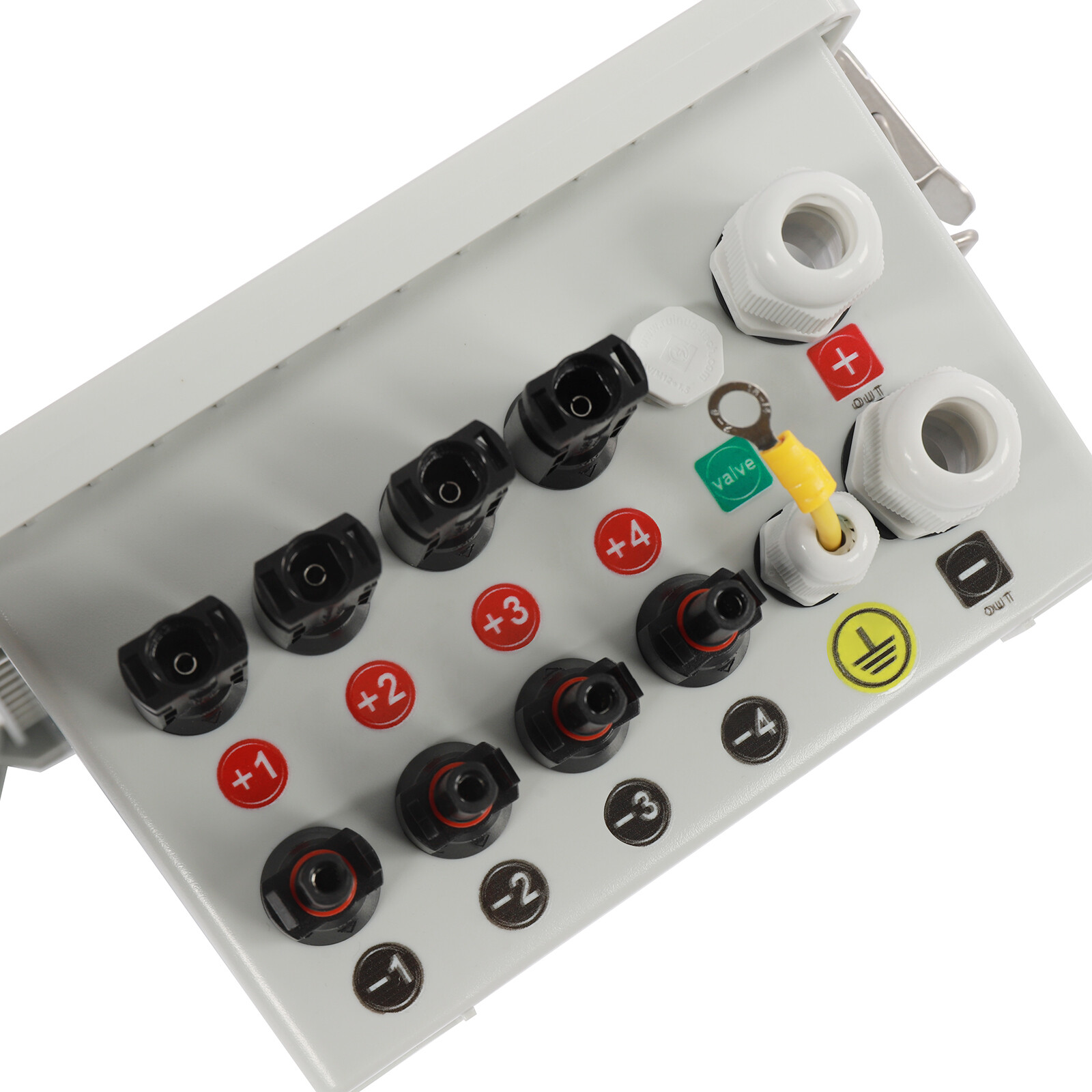

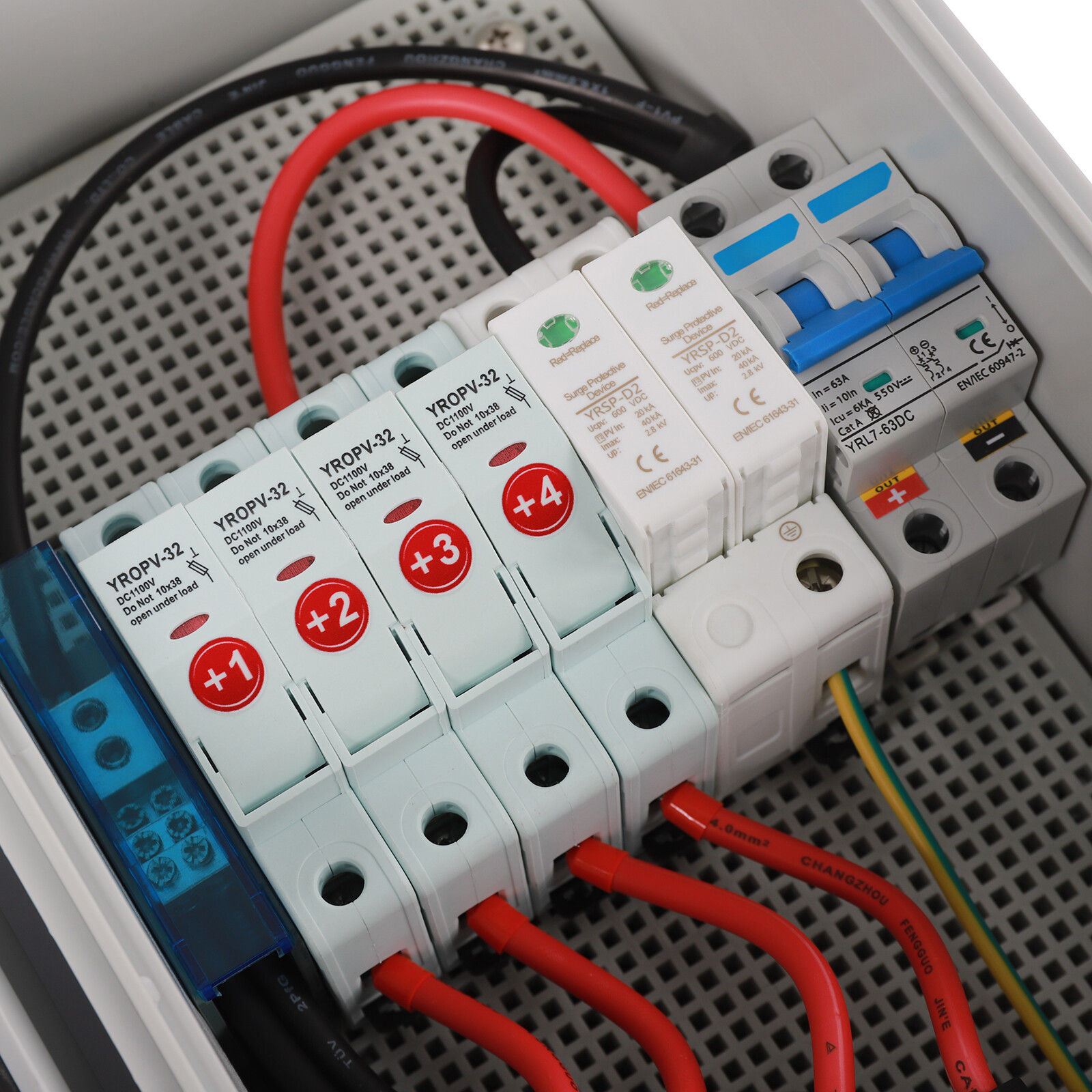

This 4-string combiner gives you four panel strings in one enclosure. The package includes 10A rated current fuses on the strings, two surge protection devices, a high-voltage lightning arrester, and a 550V 63A circuit breaker. The ABS/PC housing is described as impact-resistant and insulating. It is intended for solar panel systems and is new. This is a reasonable first 4-string option if you want a 63A main breaker and are comfortable with 10A string fuses. The limitation: those 10A fuses set the per-string current ceiling, so if your panels produce more than 10A per string, you would need to plan around that rating.
Solar Combiner Box PV Combiner 63A Circuit Breaker 4 String For Solar Panel Kit
This entry repeats the same title and the same technical story as the previous 4-string box: four strings, 10A fuses, two SPDs, lightning arrester, and a 550V 63A breaker. It is also new, so the practical spec picture is identical. Treat this as a second matching option for the same four-string/63A configuration rather than a different product. The same 10A per-string fuse constraint applies here. If you have already decided on a 4-string 63A layout, either matching option gives you the same set of ratings; just keep the string current and 550V maximum in mind for your array design.
Solar Combiner Box PV Combiner Circuit Breaker 63A For Solar Panel Kit 4 String
This is another 4-string 63A combiner. The wording around the fuse arrangement is the same: 4 strings, 10A rated current fuses, a high-voltage lightning arrester, two surge protection devices, and a 550V 63A circuit breaker. It is also new and built for solar panel systems. The difference from the previous entries is mostly in the title arrangement; the electrical specs and protective elements match. Choose this one if the simpler product name with "Circuit Breaker 63A for Solar Panel Kit 4 String" matches the way you search or organize your project. Its limitation is the same 10A per-string fuse rating and a main breaker that tops out at 63A.
Final recommendation by use case
- Two-input, lower-current array: Use the 2-in/2-out with 20A fuse and breaker in a 500V system; its two-input/two-output layout matches a two-string array.
- Four-string setup with a 63A main: Any of the three 4-string options works. If you want the exact title repeated, choose one of the two identical "PV Combiner 63A Circuit Breaker 4 String" entries. If you prefer the "Circuit Breaker 63A For Solar Panel Kit 4 String" wording, pick that one.
