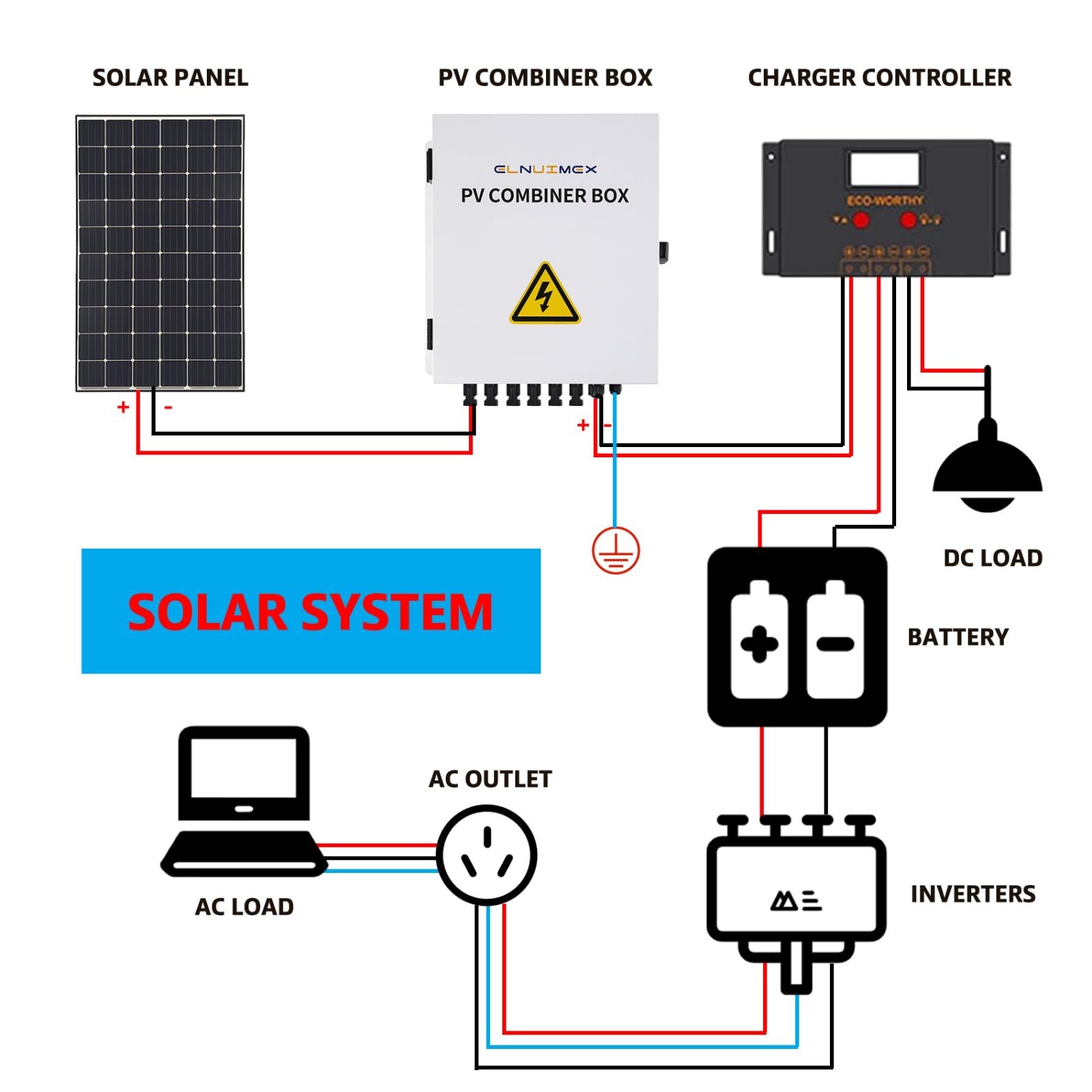

When you're assembling a solar power system, the combiner box is a key balance-of-system (BOS) component that merges multiple panel strings into one feed for the inverter. The tricky part is deciding how many inputs you need and how much fault current your breaker should handle. This head-to-head looks at a compact 2-in-2-out combiner and a six-string combiner with a 63A breaker, so you can match the box to your actual array size.
Quick Verdict
For a small two-string setup, the 2-in-2-out model provides fused protection, surge protection, and a 20A breaker in a compact housing. For a larger array that needs up to six strings and a 63A breaker, the 6-string box is the right fit. If your wiring plan only needs two strings, the 6-string's extra capacity is capacity you won't use.
Comparison at a Glance
| Feature | 2-in-2-out Solar Combiner Box | 6-String Solar Combiner Box |
|---|---|---|
| Price | USD 125.82 | USD 219.99 |
| Inputs | 2 in / 2 out | 6 strings |
| Fuse rating | 20A per string | 20A rated fuses |
| Breaker | 20A DC | 63A |
| Surge protection | Included | Included |
| Housing | ABS/polycarbonate | Metal spray housing with lock |
Where Each Product Wins
The 2-in-2-out wins on price and simplicity. It gives you fused and surge-protected combining for a smaller upfront payment, and a two-string system doesn't need the extra capacity.
The 6-string wins on capacity. Six inputs and a 63A breaker mean you can combine a bigger array and run a larger inverter feed, all in a metal enclosure with an IP65 rating.
Product Notes
2-in-2-out Solar Combiner Box
This box combines two PV inputs and two outputs with a 20A DC breaker, which makes it a natural fit for a single inverter with a pair of panel strings. The triple protection design-fuse, surge protective device, and breaker-covers short circuits, overvoltage, overcurrent, and lightning-related surges. The ABS/polycarbonate enclosure is light and corrosion-resistant, and the compact footprint keeps the wiring neat. The main limitation is that you can't add more than two strings later without replacing the box. For a dedicated two-string build, this is a straightforward way to get fused and surge-protected combining at a lower cost than the six-string model.

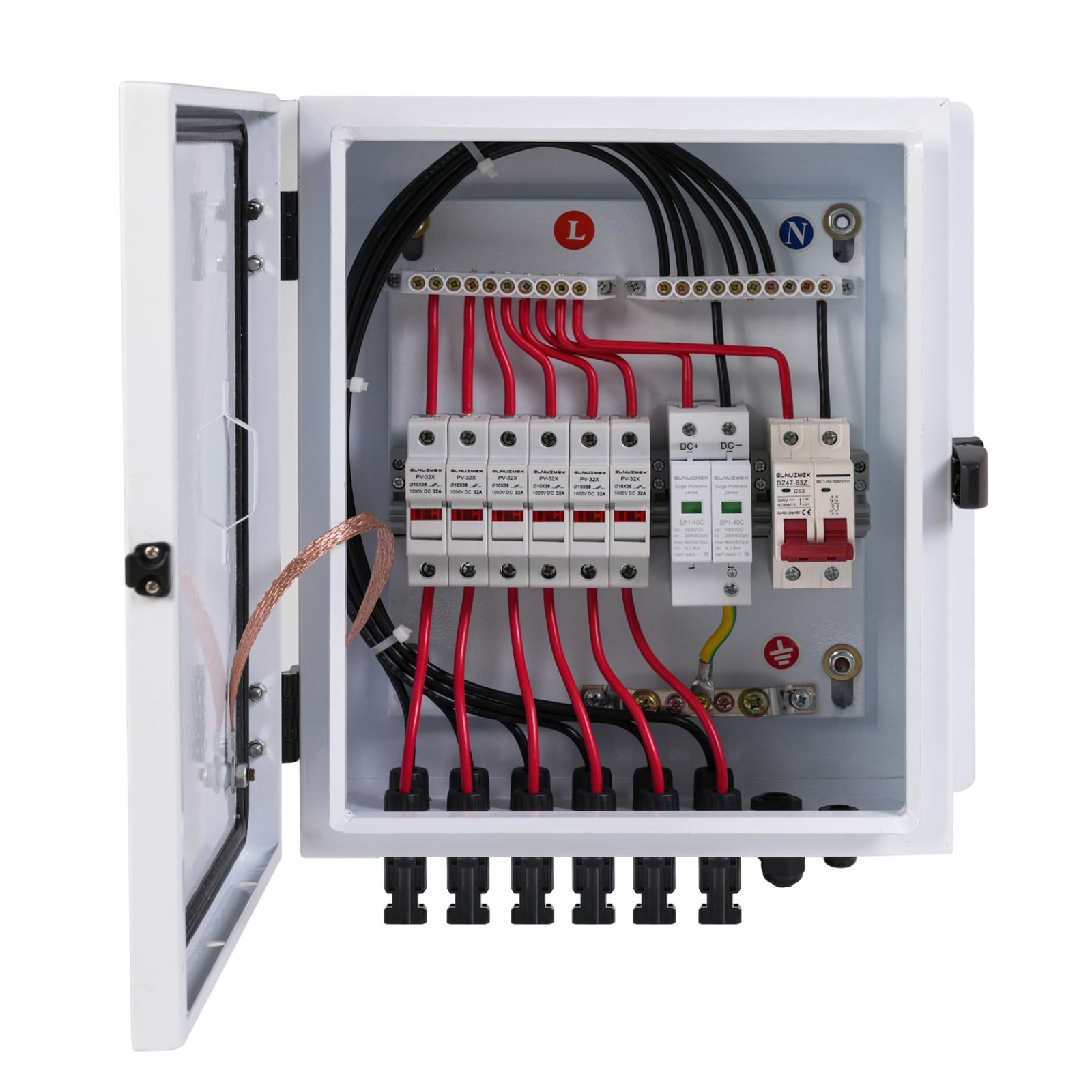

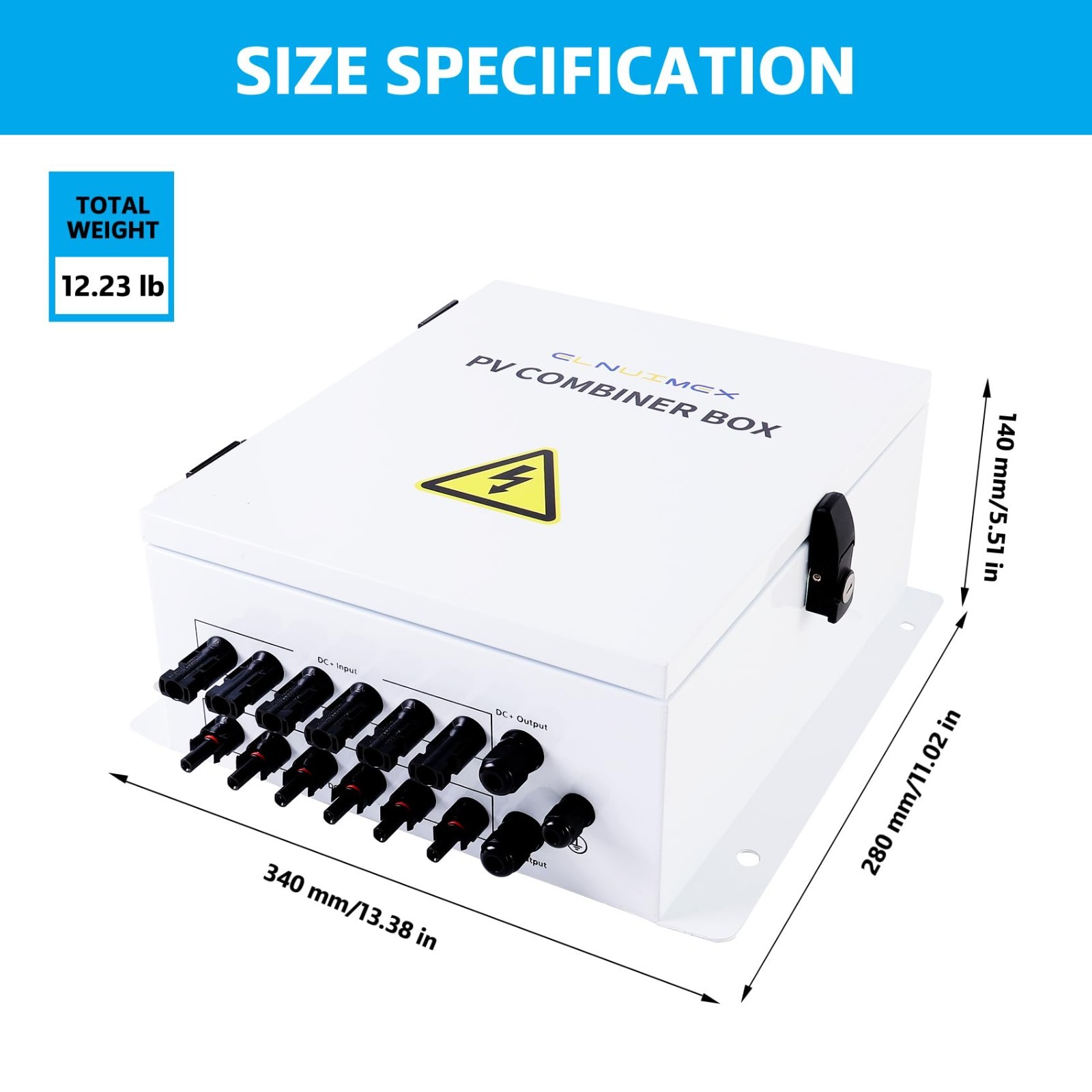

6-String Solar Combiner Box
This box is built for larger arrays, with six inputs, 20A fuses on each string, and a single 63A breaker for the combined output. The pre-wired design and built-in ground connector simplify installation, while the metal spray housing with lock and key adds physical security outdoors. It carries an IP65 waterproof rating, so weather is less of a concern. It's also listed for a three-phase system configuration, which pairs well with bigger inverters. The trade-off is that for a two-string residential setup, the extra inputs and high-current breaker are more than you need, and you'd be paying for capacity you'll never use. But if your array is heading toward six strings, this gives you room to grow in a single box.
Final Choice by Use Case
For a two-string off-grid or grid-tied system where combined output stays under 20A, the 2-in-2-out Solar Combiner Box at USD 125.82 is the practical pick. It gives you fuse, surge, and breaker protection without extra size or cost. For a six-string array, a three-phase configuration, or a system that needs a 63A breaker, the 6-String Solar Combiner Box at USD 219.99 is the one that matches the capacity. Let the number of strings you need to combine decide which box goes on your wall.
