When you're shopping for solar balance-of-system (BOS) gear, the combiner box or DC disconnect is one of those decisions that looks simple until you have two very different options in front of you. Do you need a compact two-string disconnect for a small array, or a four-string PV combiner with built-in surge protection for a larger solar panel kit? The answer affects both your wiring and how much you spend.
Quick Verdict
For $24.99, the buycheapsolar 2 String Solar Combiner Box Disconnect gives you a compact rainproof disconnect for a two-string array. For $62.54, the Solar Combiner Box PV Combiner 63A Circuit Breaker 4 String adds fused string inputs and surge protection for multi-string solar panel kits. If you only need to switch two positive lines, the less expensive 2-string unit is the practical pick; if you need four strings and built-in protection, the four-string combiner is the one to choose.
At a Glance
| | buycheapsolar 2 String Combiner/Disconnect | Solar Combiner Box PV Combiner, 4 String |
| Price | $24.99 | $62.54 |
| Use for | Simple two-string DC disconnect in a compact box | Multi-string solar panel kits with more protection needs |
Where Each Product Wins
- The 2-string disconnect is the better fit for simple two-line shutdown jobs and small spaces.
- The four-string combiner is the stronger candidate when your panel kit routes multiple strings into one central box.
Product Notes

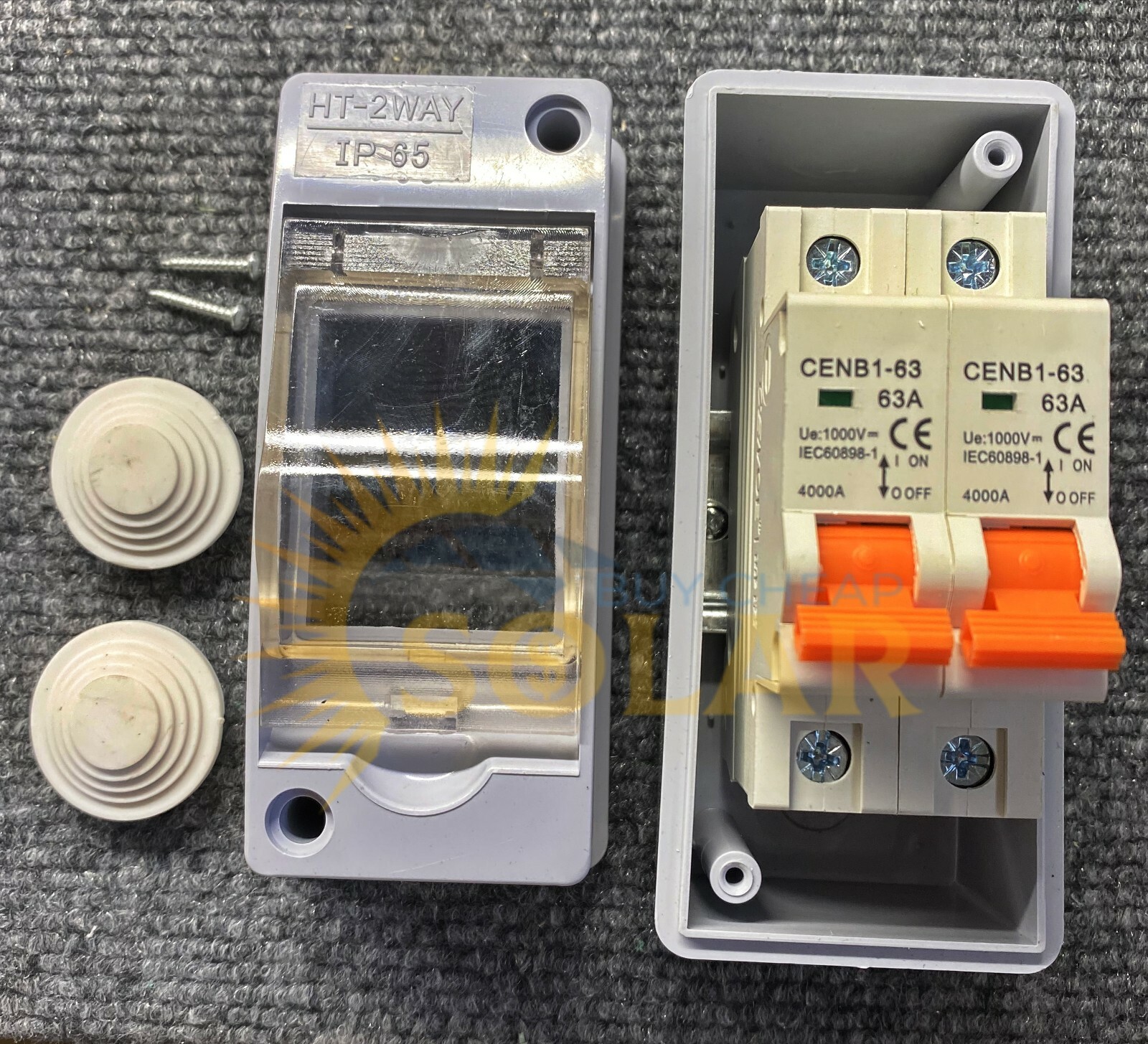

buycheapsolar 2 String Solar Combiner Box Disconnect
This is the box to reach for when your solar setup is a two-string array and you want a clear, simple DC disconnect. Buycheapsolar includes two 63A DC1000V breakers already mounted on a DIN rail, so you don't have to source breakers separately. The housing is a heavy-duty CPVC rainproof box with a clear front door and a gasket, plus extra knockout plugs for wiring entry. You can use it as a disconnect by running the two positive lines through it, or as a basic combiner if you join the wires yourself with wirenuts. The main limitation is that, on combiner duty, you need to make those wire connections yourself.

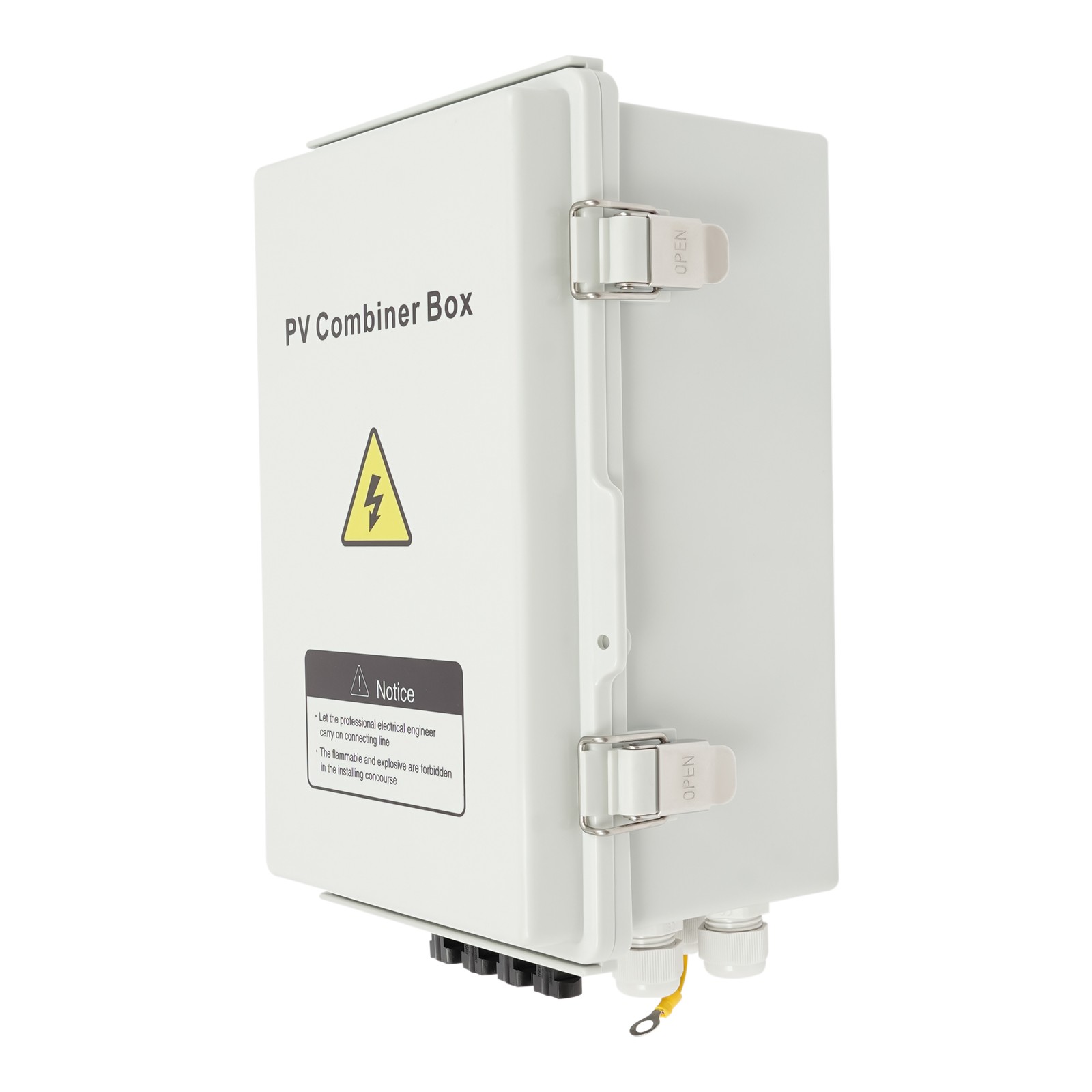

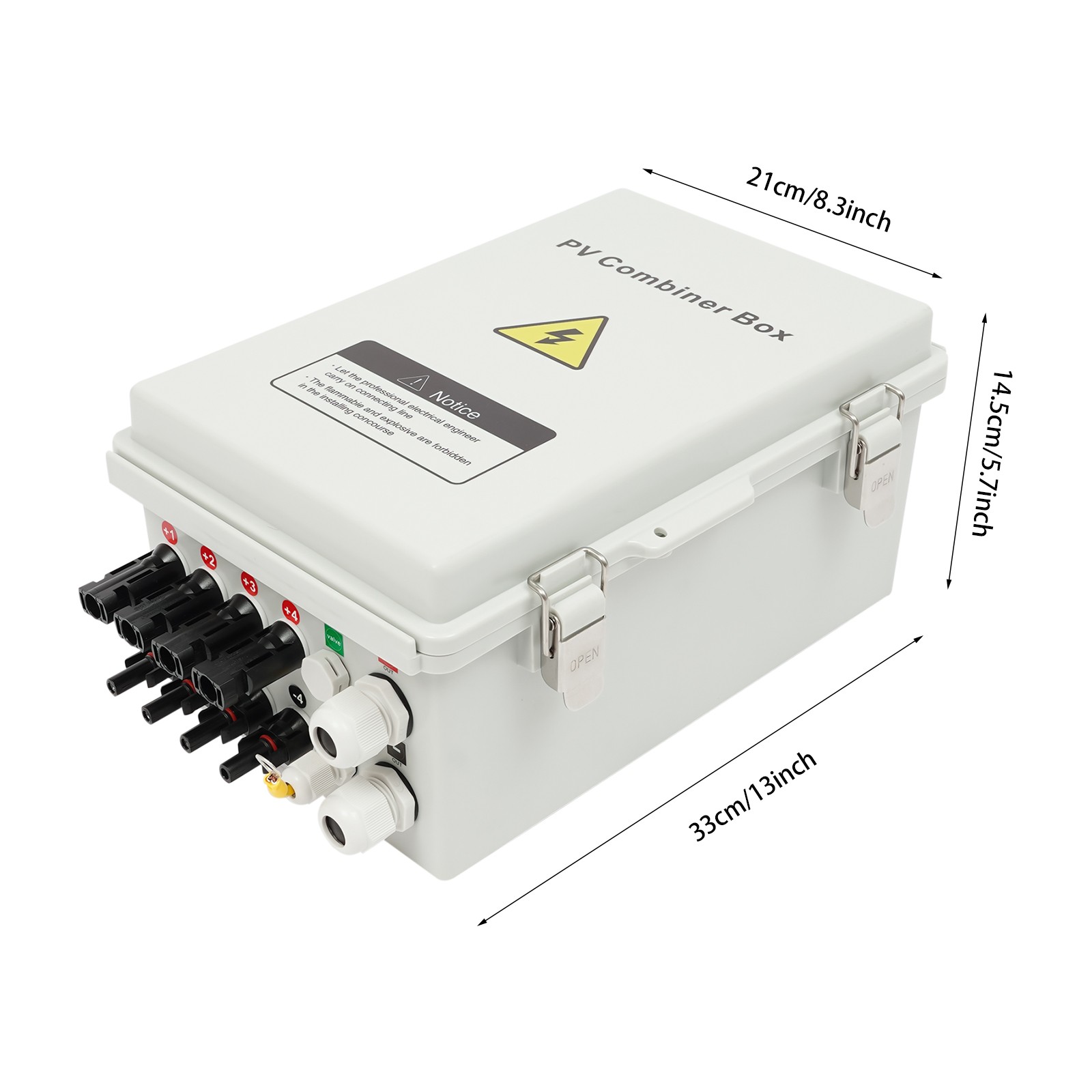

Solar Combiner Box PV Combiner, 4 String

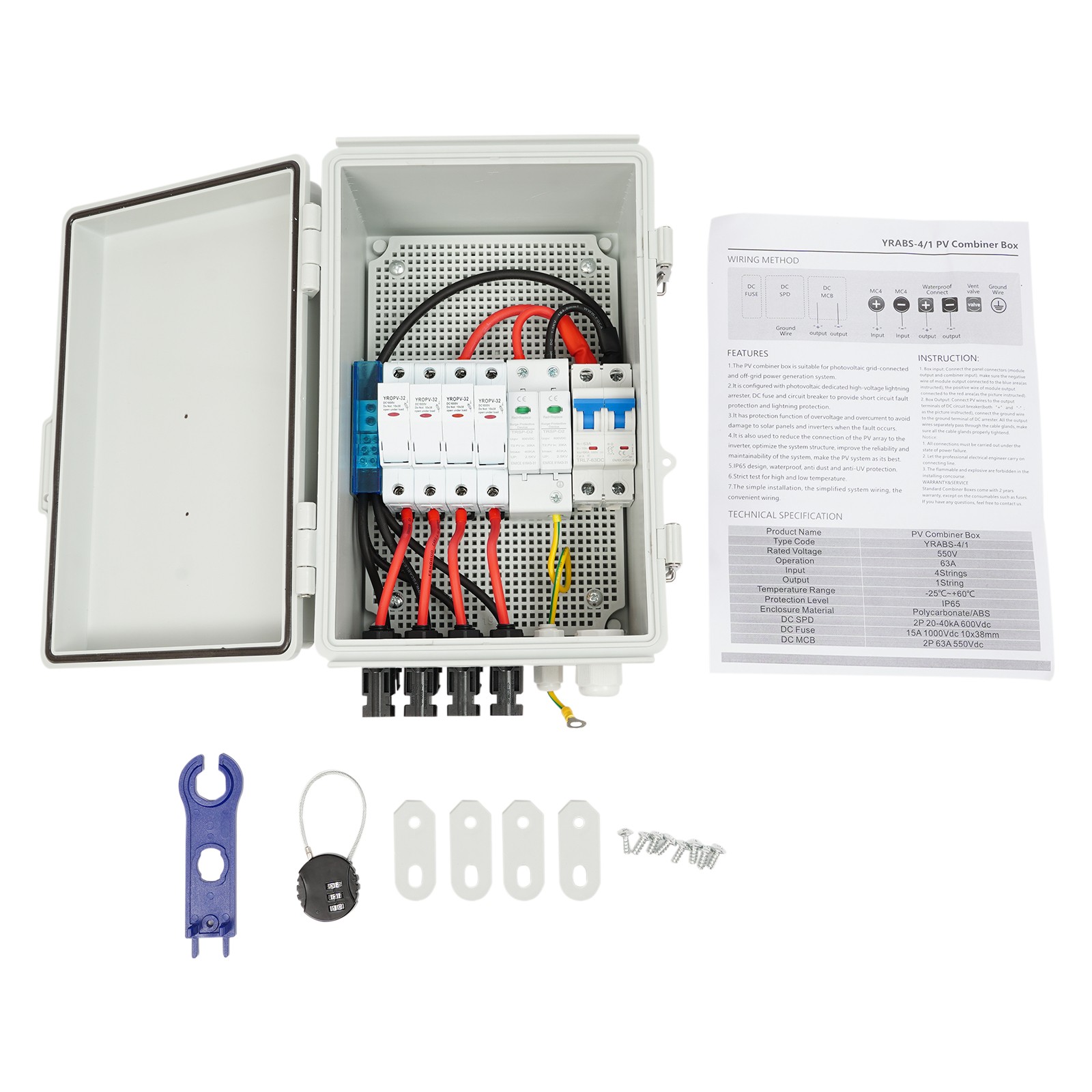

For a solar panel kit with several strings, this PV combiner makes it easier to bring everything together in one white box. It accepts four strings, each protected by a 10A rated fuse, and routes that combined output through a 550V 63A circuit breaker. The housing is made from ABS and PC, and the natural cooling design keeps the box simple. It also includes a high-voltage lightning arrester and two surge protection devices, giving you extra protection without adding separate components. The trade-off is that this box centers on a 550V 63A breaker, so it's meant for systems working in that voltage range rather than for DC1000V disconnect duty. If your array only uses two strings, this unit offers more string capacity than you need.
Final Choice by Use Case
- Small two-string array, simple disconnect duty: choose the buycheapsolar 2 String Solar Combiner Box Disconnect. It covers two positive lines without the extra string capacity.
- Multi-string solar panel kit, protection first: choose the Solar Combiner Box PV Combiner 63A Circuit Breaker 4 String. The extra input positions and built-in protection make it the stronger choice when your array is larger.
- In between: if the only job is disconnecting two strings, the 2-string unit keeps things simple; it's when you need to combine and protect multiple strings that the four-string combiner earns its place.
