Choosing a solar charge controller for your solar BOS can feel like a tug-of-war between price and performance. Do you need a simple 30A regulator for a small panel setup, or do you need a high-current MPPT controller that can handle 12V, 24V, 36V, and 48V battery banks? The two controllers side by side answer that question in very different ways.
Quick Verdict
If your solar panels feed a small home or garden battery bank, the 30A PWM controller is the simpler, lower-priced place to start. If you are managing a bigger off-grid system and need compatibility with both lead-acid and lithium batteries, the MPPT controller is the one that can grow with you.
At a Glance
| | 30A PWM Solar Charge Controller | 100A MPPT Solar Charge Controller |
| Listed price | USD 6.99 | USD 153.99 |
| Charging mode | PWM | MPPT |
| System voltage | 12V / 24V | 12V / 24 / 36 / 48V |
| Current rating | 30A | 100A |
| Display | LCD | LCD |
| Application | Commercial, Home/Garden | Agriculture/Farming, Automotive, Home/Garden |
Where Each Product Wins
- PWM controller wins if you are outfitting a 12V/24V solar panel and battery setup for a modest space and want the lower-priced controller with a clear LCD and dual USB ports.
- MPPT controller wins if your solar BOS needs high charging current, 48V system support, or lithium battery compatibility, and you want MPPT tracking designed to harvest more from changing sunlight.
Product Notes

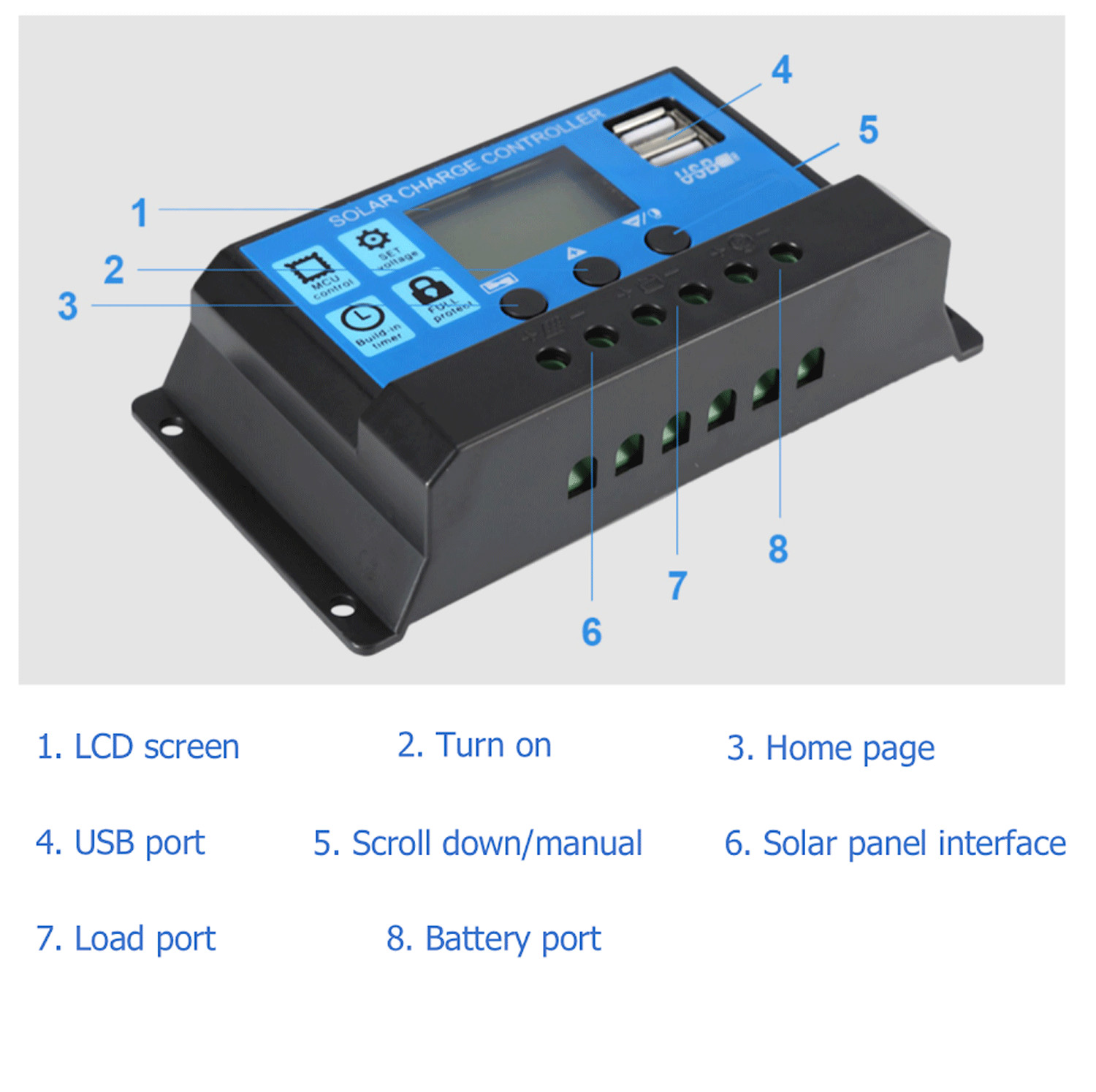

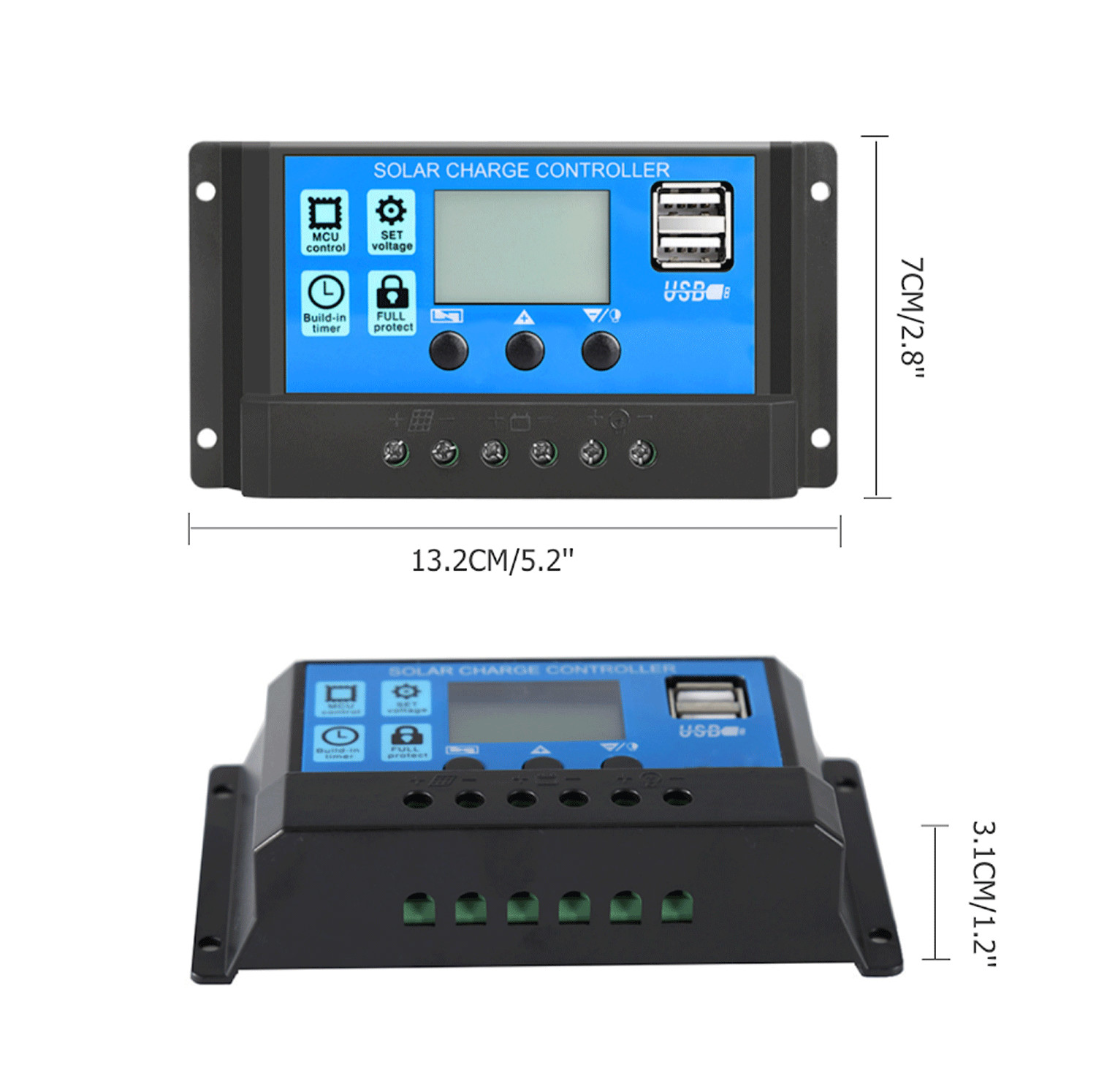

#### 30A Solar Panel Battery Charge Controller (12V/24V, PWM)

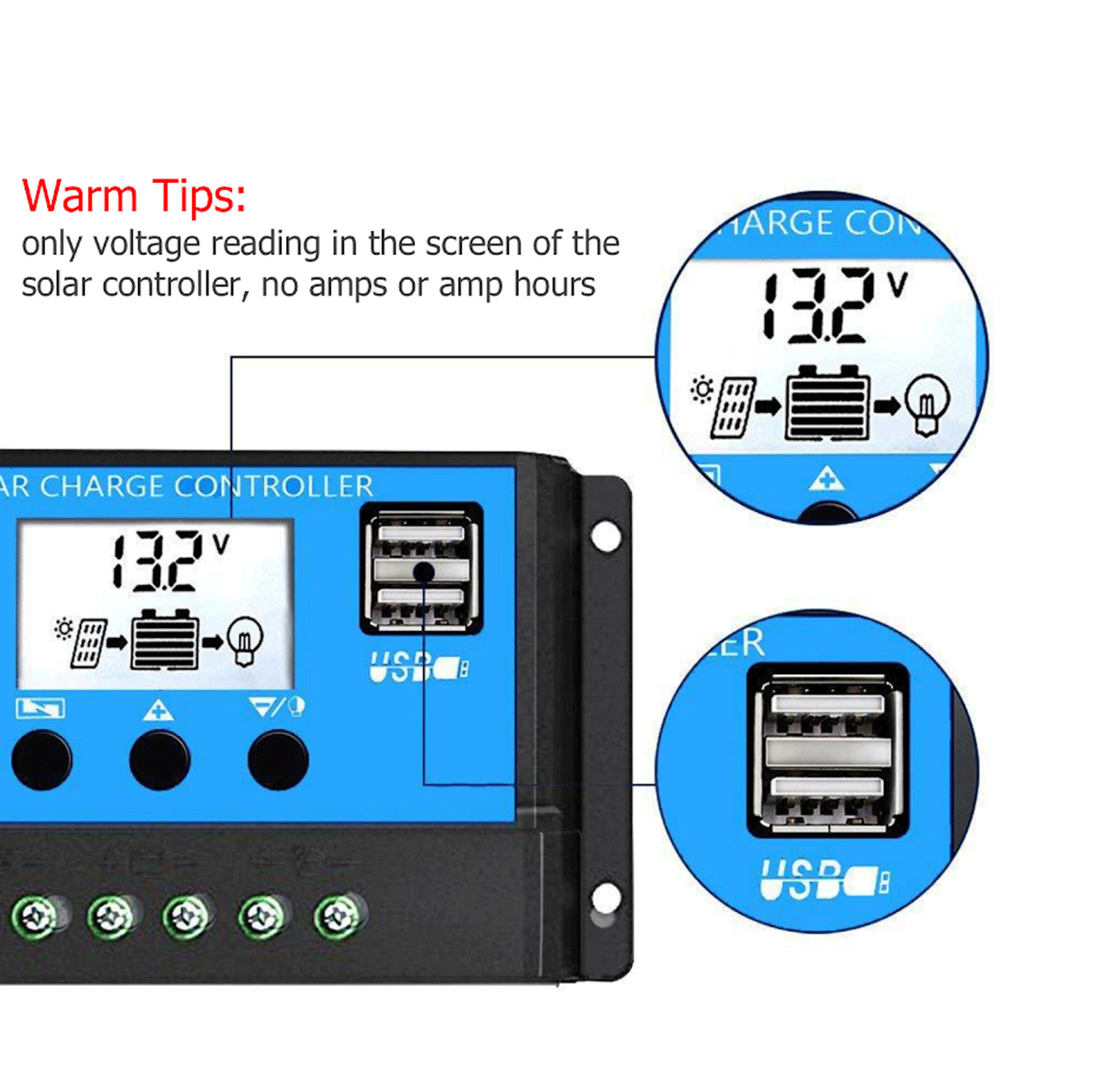

The 30A controller pairs PWM charging with a built-in industrial micro controller and three-stage charge management, so it can handle the basics of a solar panel and battery setup without overcomplicating things. The LCD shows status and data, and the dual USB output adds a place to power small devices. Its application list points to commercial and home/garden use, making it a natural fit for a modest solar BOS. The trade-off is that it is rated for 12V/24V systems, and PWM charging does not try to find the exact maximum power point of the panels the way MPPT does. For a small array where simplicity matters more than squeezing every watt, that is a reasonable trade.
#### 100A MPPT Solar Charge Controller (12V/24/36/48V)
With a 100A current rating, a 5200W/250V solar input rating, and support for 12V, 24V, 36V, and 48V battery banks, the MPPT controller is built for larger solar BOS installations. The advanced multi-curve MPPT algorithm is designed to track the true maximum power point of the panels as sunlight changes, and the compatibility list includes lead-acid and lithium battery types such as FLD, LiFePO4, SLD, Gel, and AGM. The trade-off is the price step: at the higher end of the price spread, it is a significant step up from the 30A controller, and the 100A capacity is more than a small 12V/24V panel setup needs. If you are not running that much power, you are paying for headroom you will not use.
Final Choice by Use Case
Pick the 30A PWM Solar Charge Controller if your solar BOS is a small 12V/24V panel-and-battery arrangement and you want the lower-priced option with a built-in display and dual USB. Pick the 100A MPPT Solar Charge Controller if your setup demands high charging current, a 36V/48V battery bank, or lithium battery support, and you want MPPT technology that works to harvest more from shifting sunlight.
