Choosing how to combine solar panel strings into a single feed is a balance-of-system decision that can quietly make or break an installation. You need a box that brings multiple PV strings together, protects against surges, and gives you one breaker to control the combined output. The 4 String Solar Combiner Box PV Combiner Circuit Breaker 63A For Solar Panel Kit aims to do all that in a single enclosure. The real question is whether its current and voltage limits fit your array.
Quick Verdict
For a four-string solar array with modest panel currents, this combiner box is a strong candidate. At USD 62.54, you get the combiner, a 63A output breaker, and two surge protection devices in an IP65-rated enclosure. The main catch is that each string input is limited to 10A, and the combined output tops out at 600V. Within those limits, it's a clean, cost-effective way to consolidate panel strings for a charge controller or inverter.
Who It Suits

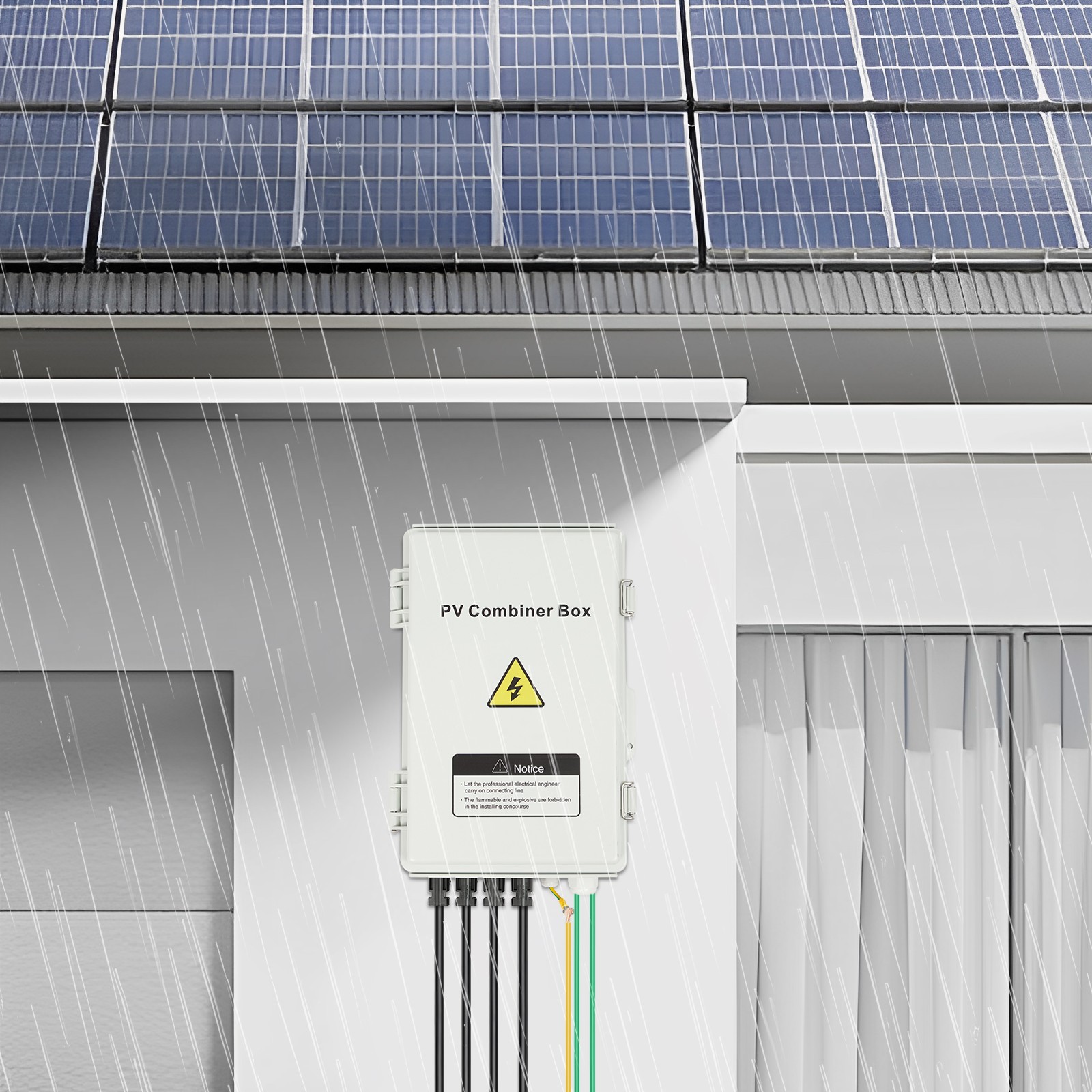

This box is a natural fit for off-grid and small grid-tied systems where four or fewer panel strings need to converge into one output. It's also a good match for DIY solar builders who want an all-in-one package: combiner, breaker, surge protection, and a weather-resistant housing. The IP65 rating means it can handle outdoor exposure to rain and dust, and the wide operating temperature range (-30 to 70°C) suits most climates. If your panels produce per-string current above 10A or your system voltage approaches 600V, this is not your box.
What Stands Out From the Listed Details

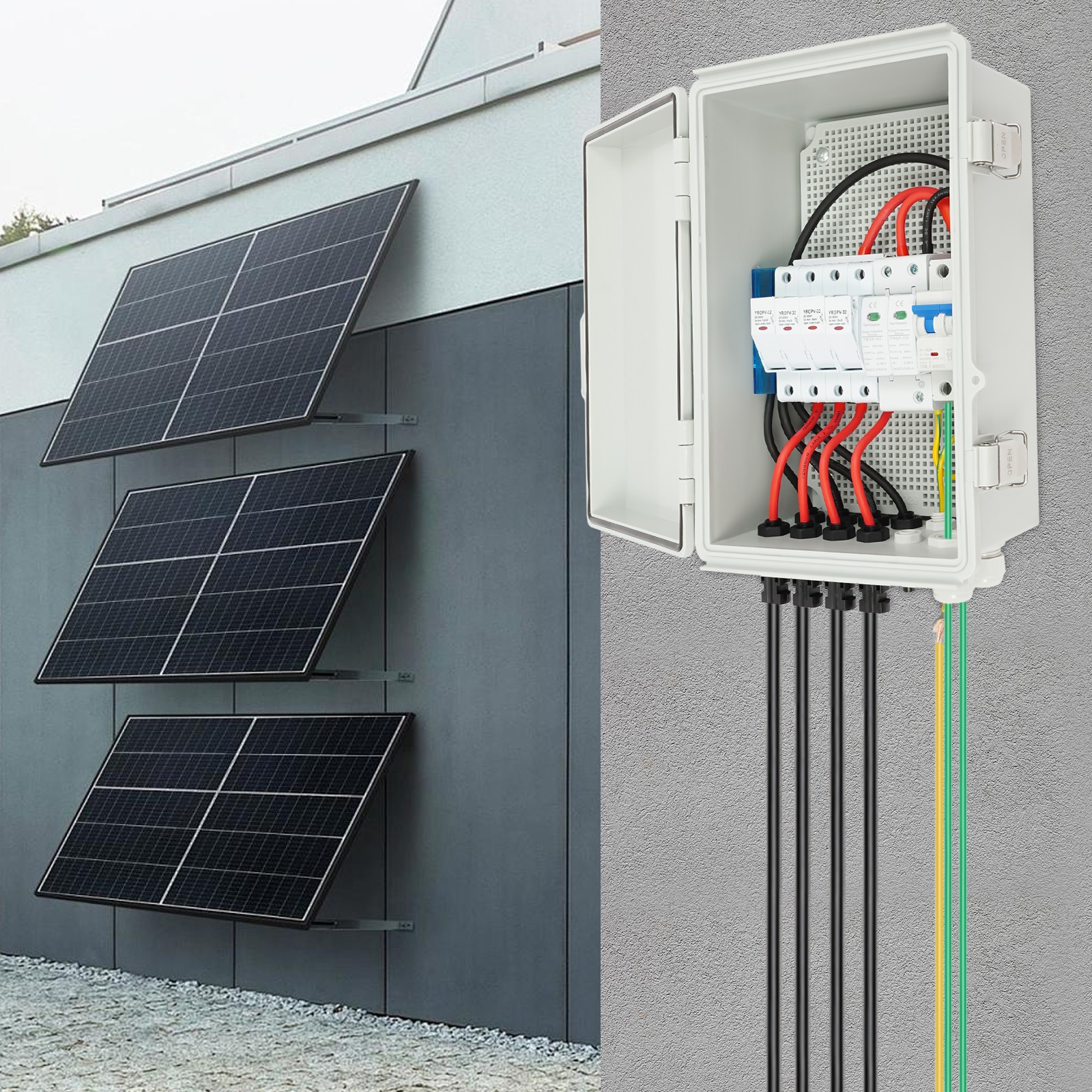

The box accepts four PV strings and outputs one string. Total input current for the array is 40A, with a max of 10A per individual input. That means you can combine four modest strings without worrying about overloading the common bus, as long as you stay under the per-string and total limits. The included circuit breaker is rated 63A at 550V, serving as the main disconnect for the combined output. Two surge protection devices rated at 40KA and 600V add a layer of protection against spikes-useful in areas prone to lightning.

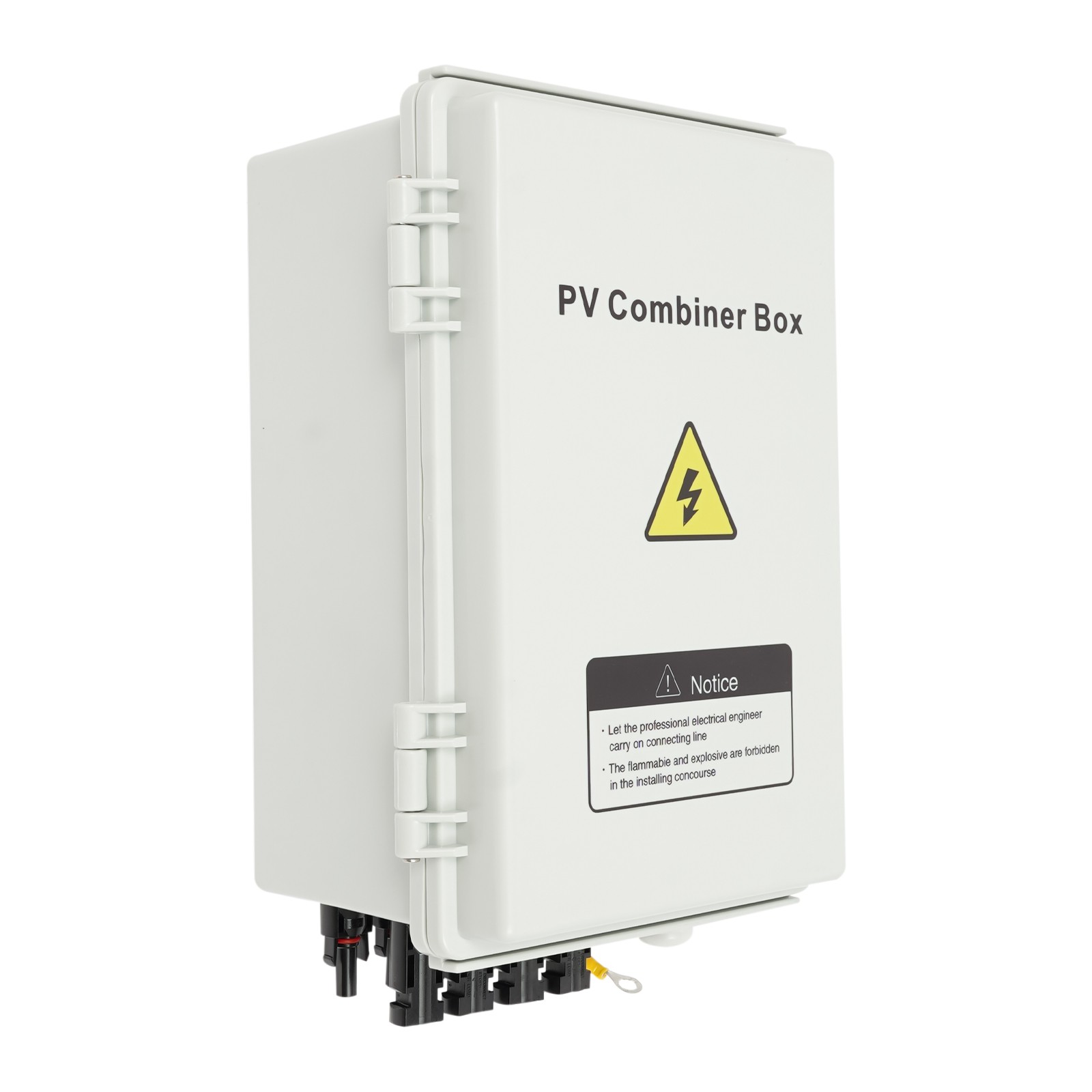

The enclosure is made of ABS and PC, with natural cooling and IP65 protection. A combination lock, mounting plates, and assembly accessories are included, so it's ready to mount on a wall or other flat surface. The listed color is white, which keeps it unobtrusive in most installations.
Meaningful Trade-offs
The biggest trade-off is in the electrical limits. With a 10A per-string cap, this combiner is not suitable for modern high-current panels that push beyond that. The 40A total input limit also means the combined array current can't exceed 40A. On the voltage side, the max input voltage per string is 1000V, but the output is limited to 600V, and the breaker is rated at 550V. So you need to keep the combined output voltage below 550V to stay within the breaker's rating.
Another simplification: there is only one circuit breaker, not per-string breakers. That means you can disconnect the whole array with one switch, but you won't be able to isolate a single string independently. If your troubleshooting routine relies on per-string disconnects, you'll need to add that separately.
Product Note
4 String Solar Combiner Box PV Combiner Circuit Breaker 63A For Solar Panel Kit
For a four-string system that stays within the 10A per-string and 550-600V output limits, this combiner delivers an integrated solution with surge protection and a single breaker. The limitation to keep in mind is the per-string current cap, which rules out high-current panels unless you adjust your string configuration.
Bottom Line
If you're building or upgrading a modest solar array and need a simple, protected way to combine four strings, this combiner box earns its place. At USD 62.54, it packages the essential protection and switching into one unit that's rated for outdoor use. Double-check your panel's per-string current and your system's output voltage against the 10A and 600V limits, and you'll have a clean, reliable hub for your solar power system.
