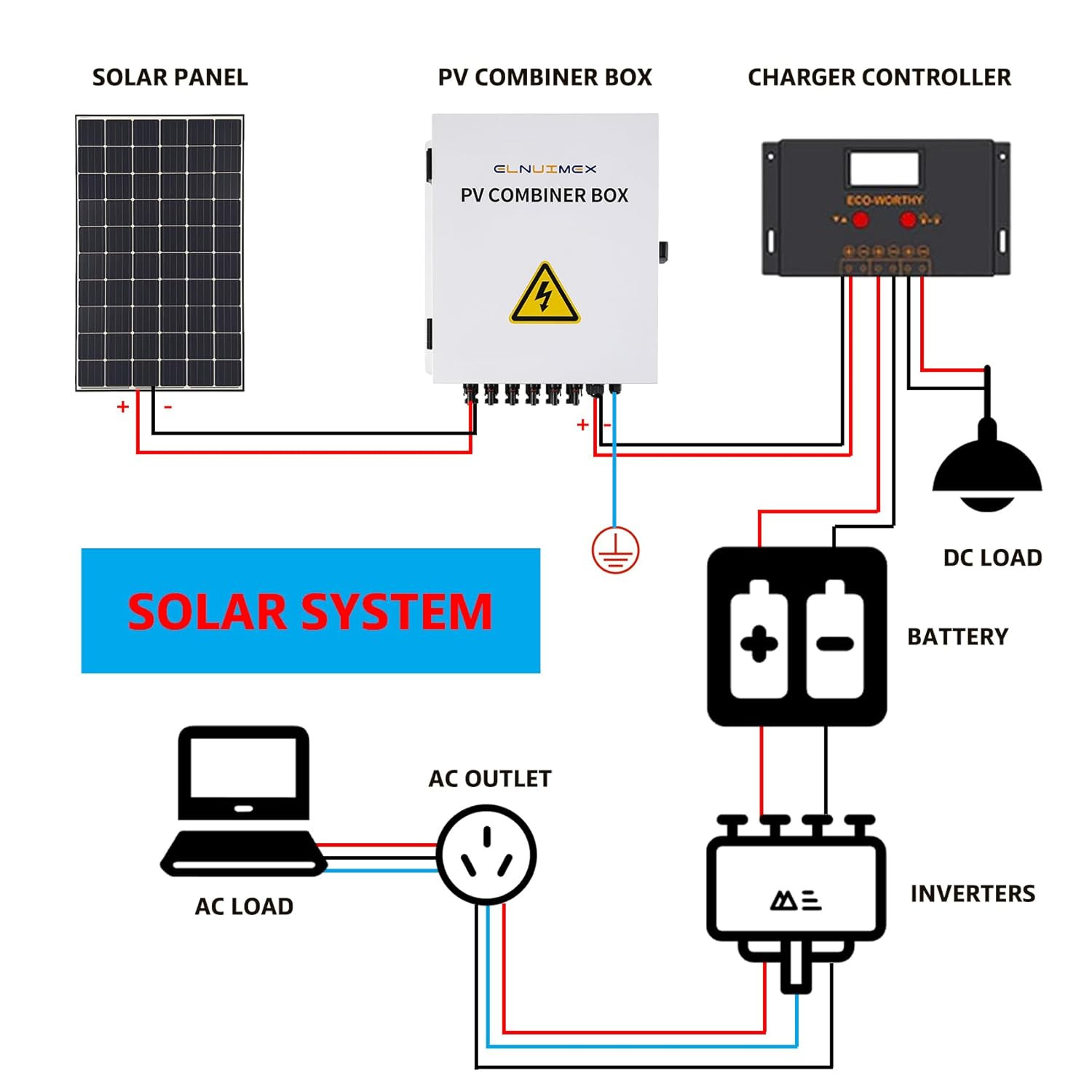

Picking a solar combiner box for a PV system is mostly a balance-of-system decision: how many panel strings do you need to bring together, do you want surge protection and fuses, and how much do you want to spend before the charge controller or inverter? The four solar combiner boxes here run from a 4-string model at USD 58.79 to a 6-string box at USD 219.99, so the main choice is between four and six inputs and between the feature notes that come with each.
Quick Take
- Need six strings and a three-phase model note? The 6 String Solar Combiner Box with 20A Fuse, Surge Protection & 63A Breaker is the one.
- Need six strings at a lower listed price? The 6 String Solar Combiner Box with 20A Fuse & Surge Protection, 63A Breaker is the other six-string option.
- Need four strings and the lowest listed price? The TBvechi 4 String Solar Combiner Box is the entry point.
- Want a 4-string box with the GDRASUYA10 brand name? That version is available too.
Listed Price Comparison
| Listed product | Listed price | Price bar |
|---|---|---|
| 6 String Solar Combiner Box with 20A Fuse, Surge Protection & 63A Breaker | USD 219.99 | |
| 6 String Solar Combiner Box with 20A Fuse & Surge Protection, 63A Breaker | USD 189.99 | |
| 4 String Solar Combiner Box PV Combiner Circuit Breaker 63A For Solar Panel Kit (TBvechi) | USD 58.79 | |
| 4 String Solar Combiner Box PV Combiner Circuit Breaker 63A For Solar Panel Kit (GDRASUYA10) | USD 61.91 |
The spread from the least expensive 4-string box to the most expensive 6-string box is USD 161.20. The two 4-string boxes sit close together at USD 58.79 and USD 61.91, while the two 6-string boxes sit at USD 189.99 and USD 219.99.
Decision Matrix
| If you need | Pick | Why |
|---|---|---|
| Six inputs and a three-phase system designation | 6 String Solar Combiner Box with 20A Fuse, Surge Protection & 63A Breaker | Listed with model DZ47-63Z and three-phase configuration |
| Six inputs without that three-phase note | 6 String Solar Combiner Box with 20A Fuse & Surge Protection, 63A Breaker | The other six-string option with 20A fuses and a 63A breaker |
| Four inputs | TBvechi 4 String Solar Combiner Box | Same circuit-breaker approach in a 4-string housing |
| Four inputs from GDRASUYA10 | GDRASUYA10 4 String Solar Combiner Box | Nearly identical core specs |
Product Notes
6 String Solar Combiner Box with 20A Fuse, Surge Protection & 63A Breaker

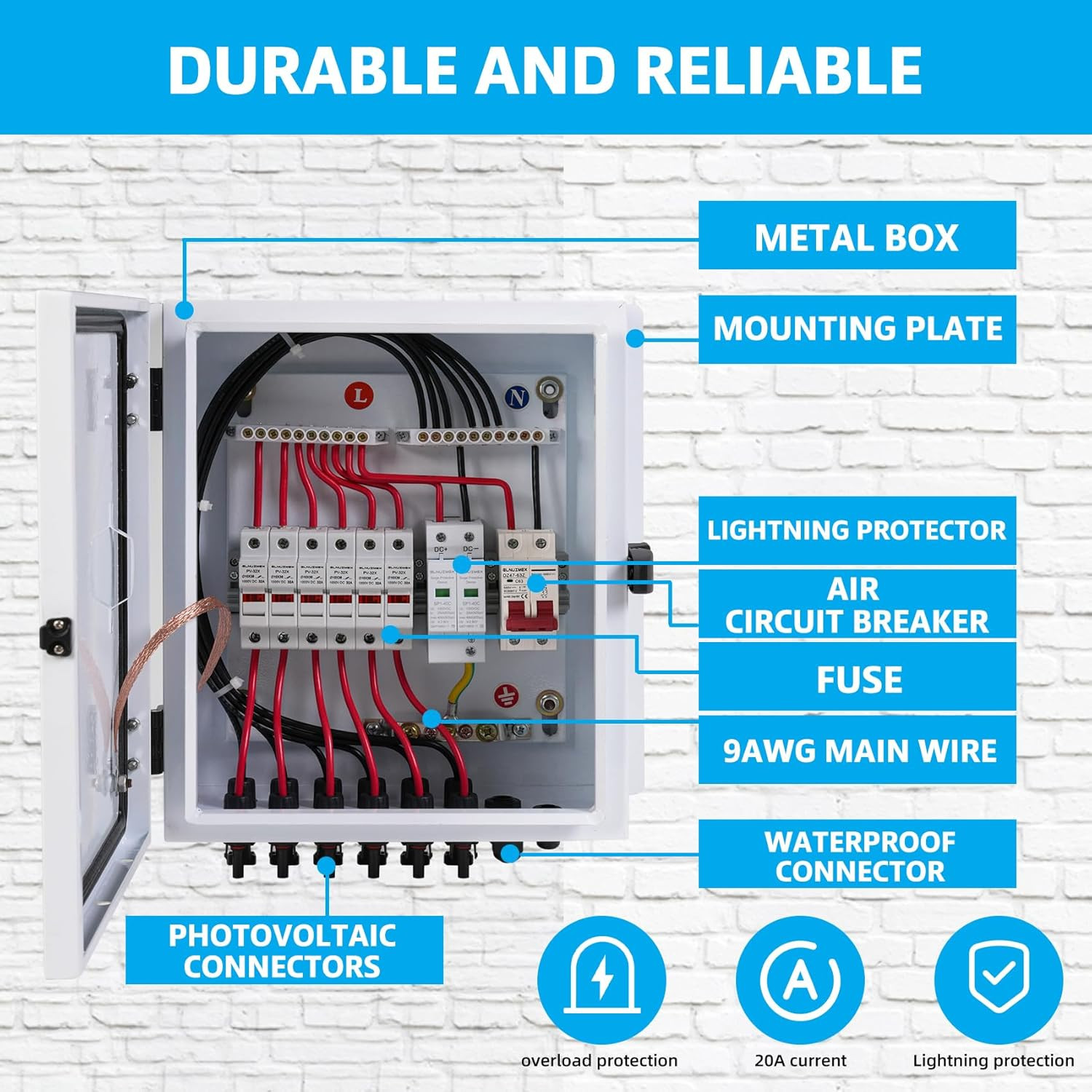

At USD 219.99, this six-string box is the highest listed price in this comparison and the one with a clear three-phase system designation (model DZ47-63Z). The product description includes 20A rated fuses, surge and short circuit protection, pre-wired solar wires, a built-in ground connector, a lock-and-key metal spray housing, and an IP65 rating. Choose it when your array needs six string inputs and the three-phase configuration label is part of your plan. The limitation is the price: it is USD 30 above the other six-string box and USD 161.20 above the least expensive four-string model, so it earns its place only when you need the extra string count and the specific three-phase note.
6 String Solar Combiner Box with 20A Fuse & Surge Protection, 63A Breaker

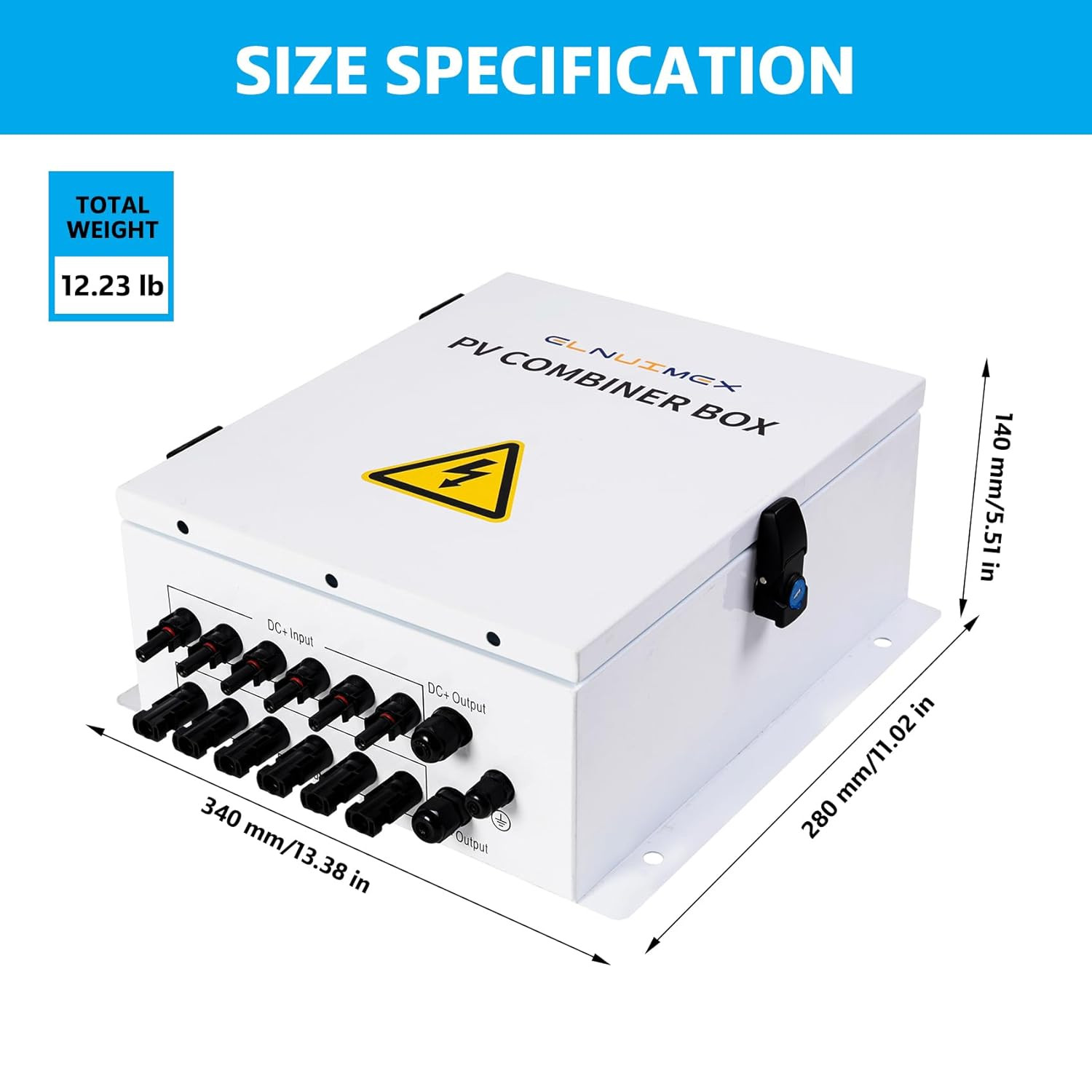

Listed at USD 189.99, this six-string box also carries 20A fuses, surge protection, and a 63A breaker, with a metal-material construction, package dimensions of 15.72 x 13.55 x 5.95 inches, and a 12.67-pound weight. It is the USD 30 lower-priced route to six string inputs. Choose it when you want the extra capacity but do not need the three-phase configuration note that the higher-priced box carries. The physical size and weight are the real trade-off: at 12.67 pounds, the wall mount or mounting surface needs to handle a box of that size and weight, and the 15.72-inch package width may feel large on a compact wall. If your layout has room, this box gives you the same 20A-fuse, 63A-breaker feature set for USD 30 less than the top-priced six-string version.
4 String Solar Combiner Box PV Combiner Circuit Breaker 63A For Solar Panel Kit (TBvechi)
At USD 58.79, this TBvechi 4-string box is the least expensive option in the guide. It includes a 63A, 550V circuit breaker, two 40KA/600V surge protection devices, a 1000V maximum input voltage per array, a 40A total PV array input current, and an IP65-rated ABS/PC wall-mount housing. Choose it if four strings cover your layout and the lowest listed price is your priority. The limitation is capacity: only four strings and a 40A total array input current mean it will not suit a larger PV array that needs six inputs. Meanwhile, it is USD 3.12 less than the GDRASUYA10 4-string box, so if you are comparing the two 4-string models, this is the lower-priced one.
4 String Solar Combiner Box PV Combiner Circuit Breaker 63A For Solar Panel Kit (GDRASUYA10)
This GDRASUYA10 4-string box is listed at USD 61.91. Apart from the brand name, it has the same core specs as the TBvechi 4-string model: white ABS/PC housing, wall mount, 63A/550V circuit breaker, two 40KA/600V surge protection devices, 1000V maximum input per array, 40A total input, and IP65 protection. Choose it if the GDRASUYA10-branded version is the one you want or if that brand name is what your system notes reference. The limitation is the price: at USD 61.91 it is USD 3.12 higher than the TBvechi version, and the title, circuit breaker rating, surge protection count, and string configuration are essentially the same. Unless the brand distinction matters to you, the TBvechi box offers the same listed capability for a lower listed price.
Final Recommendation
If four strings are enough, the TBvechi 4-string box at USD 58.79 is the direct pick for the lowest listed price. If you need six inputs and the three-phase model note matters, the USD 219.99 6-string box is the match. If six inputs are enough but you do not need that note, the USD 189.99 6-string box is the lower-priced six-string choice. The GDRASUYA10 4-string at USD 61.91 makes sense only when the brand-specific version is the one you want.
